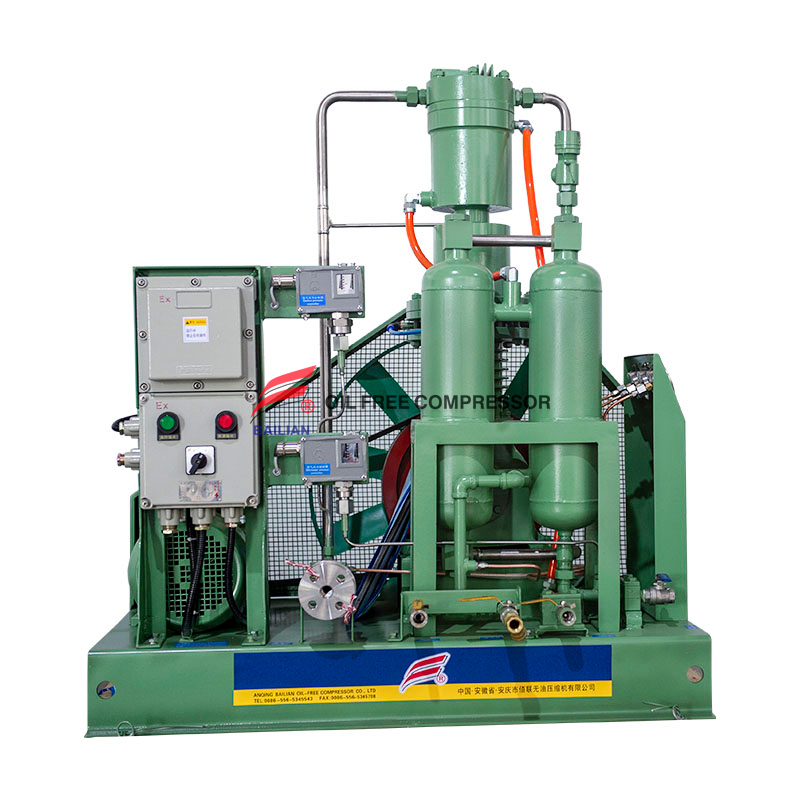

Industrial Hydrogen Piston Compressor in Refinery Suppliers

1.Total oil free
2.single or double stage
3.easy moving
4.heavy duty ,and 24 hours continues working 5.silent working
cooling way:
Color:
packing box:
standard:
ETD time:
Availability:
Quantity:
  • GWW-5/5-150

  • BAILIAN

  • 8414804090

hydrogen piston compressor in refinery, as the name suggests, are devices that change the volume of hydrogen to complete compression and delivery. According to the principle, the hydrogen compressor can be divided into two types: volumetric type and speed type. Hydrogen compressors are available in diaphragm, reciprocating piston, rotary, screw, and turbine types.

Hydrogen is an important industrial raw material and has many uses in the industry. The common uses of hydrogen compressors are as follows:


industrial hydrogen piston compressor : filling hydrogen into high pressure bottle for storage, our hydrogen compressor filling pressure 150-200BARG


Decomposition of ammonia to produce hydrogen, pressurized for use in heat treatment of steel mill stainless steel


Photovoltaic power generation + hydrogen refueling station: electricity is produced by photovoltaic power generation, and then hydrogen is produced by water electrolysis. The hydrogen compressor in the general hydrogen refining station is pressurized to 400-450 barg, and is filled into a high-pressure hydrogen bottle to supply hydrogen energy vehicles. use.


industrial piston hydrogen compressor in refinery in chemical reactions, such as hydrogen compressors for polysilicon

Bailian oil free hydrogen compressor use site (1)

Model  Working medium  suction pressure (Mpa,Psig) Discharge pressure (Mpa,Psig) Motor.KW  Flow rate Nm3/hr Voltage  Cooling way
HV-1/5 Hydrogen atmosphere  0.5,72 0.75 1 220V/380V/415V/440V 50/60HZ water cooling
HV-15/0.5-9 Hydrogen 0.05,7 0.9,130 3 15 220V/380V/415V/440V 50/60HZ water cooling
HW-20/0.5-9 Hydrogen 0.05,7 0.9,130 4 20 220V/380V/415V/440V 50/60HZ water cooling
HV-17/3.4-21 Hydrogen 0.34,49 2.1,300 3 17 220V/380V/415V/440V 50/60HZ water cooling
HW-16/0.5-80 Hydrogen 0.05,7 8,1150 7.5 16 220V/380V/415V/440V 50/60HZ water cooling
GHV-2/2-150 Hydrogen 0.2,28 15,2160 1.5 2 220V/380V/415V/440V 50/60HZ water cooling
HW-10/4-200 Hydrogen 0.4,57 20,2875 4 10 220V/380V/415V/440V 50/60HZ water cooling
HD-40/200 Hydrogen atmosphere  20,2875 22 40 220V/380V/415V/440V 50/60HZ water cooling
HW-50/4-200 Hydrogen 0.4,57 20,2875 18.5 50 220V/380V/415V/440V 50/60HZ water cooling
GHD-50/2-150 Hydrogen 0.2,28 15,2160 22 50 220V/380V/415V/440V 50/60HZ water cooling
HD-120/2-17 Hydrogen 0.2,28 1.7,244 22 120 220V/380V/415V/440V 50/60HZ water cooling
HD-100/0.5-25 Hydrogen 0.05,7 2.5,360 30 100 220V/380V/415V/440V 50/60HZ water cooling
HD-200/3 Hydrogen atmosphere  0.3,43 30 200 220V/380V/415V/440V 50/60HZ water cooling
ZWH-200/0.8-12 Hydrogen 0.08,11.5 1.2,172 30 200 220V/380V/415V/440V 50/60HZ water cooling

1. The above parameters are for reference only, and subject to the final technical quotation

2. More displacement, higher filling pressure, please consult us
