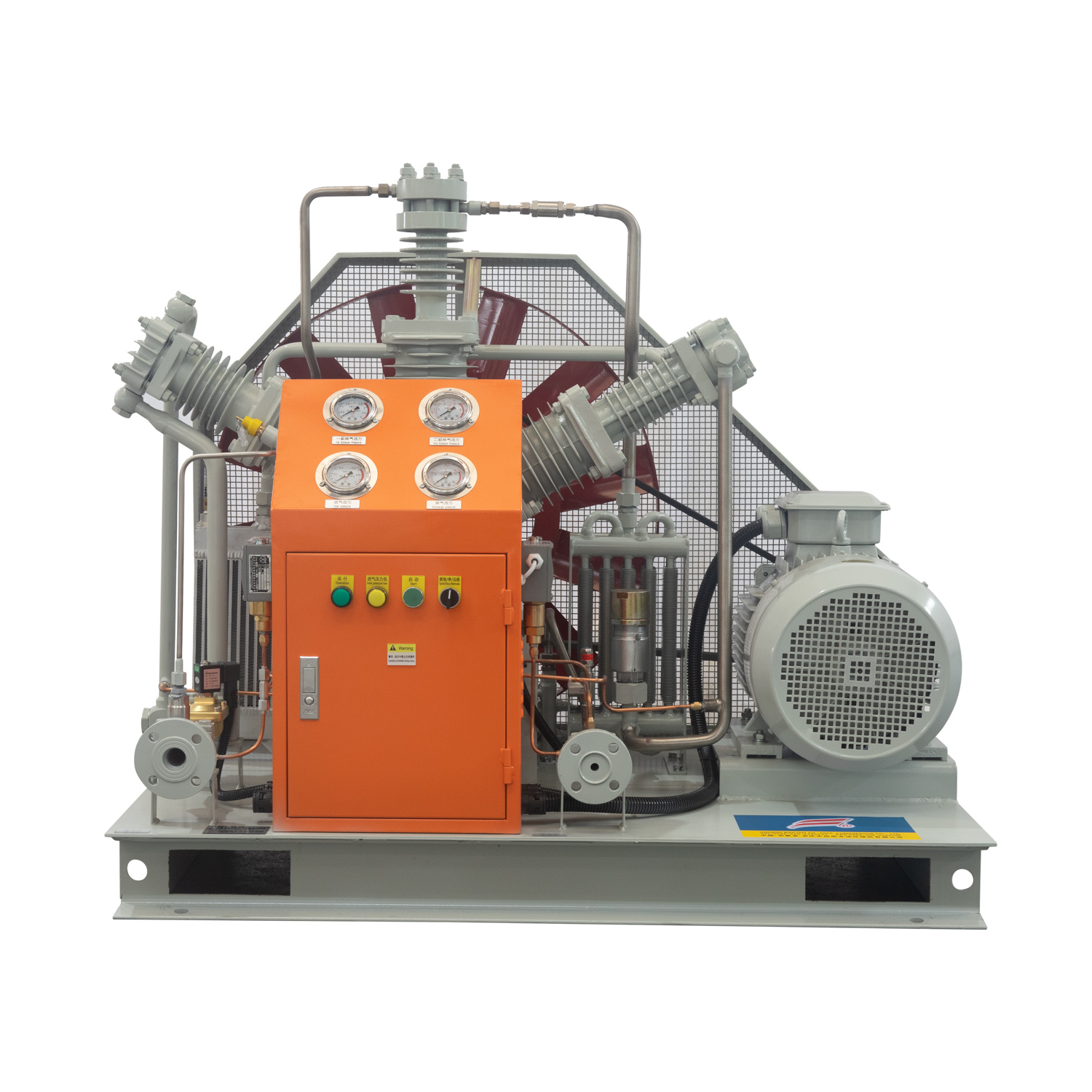

Oil-free Lubrication W Type Nitrogen Compressor GWW-30/7-140

Medium

N2

Quantity

1开 备

Inlet pressure  MPa（G）

0.7

Inlet temperature        ℃

≤ 40

Discharge pressure    Mpa（G）

14.0

Discharge temperature（after cooling） ℃

≤ 50

Flow rate        m³/min

30

Piston stroke          mm

75

Model

GWW-30/7-140

Compression stages

3

Structural style

Oil-free lubrication W type

Cylinder quantity

3

Shaft speed      r/min

400

Voltage               V

380

Cooling mode

AIR COOLING

Cooling water flow        t/h

---

Shaft power           kw

≤7.5kw

Main motor speed        r/min

1460

Inlet and outlet ports mm

DN20   DN8

Inlet and outlet interfaces         mm

---

Motor

11KW  380V  50Hz

Dimension mmXmmXmm

1400x900x1000 ※

Weight         T

   0.48  ※

Drive mode

Belt drive

Material of parts contacting with gas

cylinder

Ordinary carbon steel

valve

stainless steel

pipeline、cooler

Stainless steel, aluminum alloy

Scope of supply

Main engine, motor, skid-mounted chassis, starting cabinet, air inlet filter, pre-engine primary meter and control elements, safety valve, accompanying documents, accompanying spare parts, etc.

(Note: subject to the final technical agreement).

Additional notes

※ Column data is for reference only, subject to delivery

Delivery time

30 days after the contract is signed and the advance payment is received
