WW-1.8/10
BAILIAN
8414804090

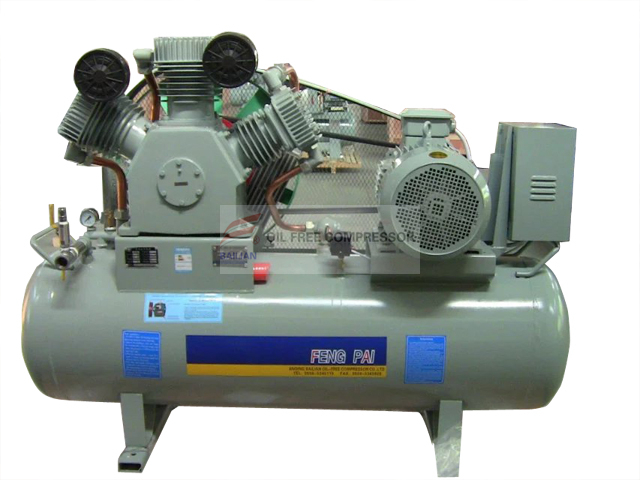

The oil free air compressor manufacturer is now more and more widely used. It is the main body of the air source device. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a compressed air air pressure generating device.
Compressed air quality: 2 stage oil free air compressor is the first choice: the oil-free air compressor machine itself does not contain oily materials, which avoids the contamination of the terminal equipment by the oil machine. Therefore, it is necessary to choose the oil-free air compressor to ensure the air quality. . After the air filter unit is installed, it is an ideal gas supply system for the food and pharmaceutical industries.
electric 2 stage oil free air compressor data as follows
MODEL | Capacity (m3min) | Pressure (Mpa) | Speed (r/min) | Noise [db(A)] | Motor (kw) | tank voluem (L) | diemension (L*W*H) | Packing dimension (L*W*H) | N.W | G.W |
WW—0.6/10 | 0.6 | 1.0 | 740 | ≤84 | 5.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 320 | 350 |
WW—0.9/7 | 0.9 | 0.7 | 810 | ≤84 | 7.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 350 | 370 |
WW—0.9/10 | 0.9 | 1.0 | 750 | ≤84 | 7.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 350 | 370 |
WW—0.7/12.5 | 0.7 | 1.25 | 740 | ≤84 | 7.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 350 | 370 |
WW—0.5/14 | 0.5 | 1.4 | 670 | ≤81 | 5.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 320 | 350 |
WW—1.25/7 | 1.25 | 0.7 | 860 | ≤85 | 11 | 0.28 | 1660*650*1240 | 1830*770*1500 | 410 | 450 |
WW—1.25/10 | 1.25 | 1.0 | 770 | ≤85 | 11 | 0.28 | 1660*650*1240 | 1830*770*1500 | 410 | 450 |
WW—1.8/10 single | 1.8 | 1.0 | 900 | ≤86 | 15 | 0.32 | 1900*700*1400 | 1950*920*1620 | 530 | 580 |
The oil free air compressor manufacturer is now more and more widely used. It is the main body of the air source device. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a compressed air air pressure generating device.
Compressed air quality: 2 stage oil free air compressor is the first choice: the oil-free air compressor machine itself does not contain oily materials, which avoids the contamination of the terminal equipment by the oil machine. Therefore, it is necessary to choose the oil-free air compressor to ensure the air quality. . After the air filter unit is installed, it is an ideal gas supply system for the food and pharmaceutical industries.
electric 2 stage oil free air compressor data as follows
MODEL | Capacity (m3min) | Pressure (Mpa) | Speed (r/min) | Noise [db(A)] | Motor (kw) | tank voluem (L) | diemension (L*W*H) | Packing dimension (L*W*H) | N.W | G.W |
WW—0.6/10 | 0.6 | 1.0 | 740 | ≤84 | 5.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 320 | 350 |
WW—0.9/7 | 0.9 | 0.7 | 810 | ≤84 | 7.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 350 | 370 |
WW—0.9/10 | 0.9 | 1.0 | 750 | ≤84 | 7.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 350 | 370 |
WW—0.7/12.5 | 0.7 | 1.25 | 740 | ≤84 | 7.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 350 | 370 |
WW—0.5/14 | 0.5 | 1.4 | 670 | ≤81 | 5.5 | 0.18 | 1480*570*1180 | 1640*690*1430 | 320 | 350 |
WW—1.25/7 | 1.25 | 0.7 | 860 | ≤85 | 11 | 0.28 | 1660*650*1240 | 1830*770*1500 | 410 | 450 |
WW—1.25/10 | 1.25 | 1.0 | 770 | ≤85 | 11 | 0.28 | 1660*650*1240 | 1830*770*1500 | 410 | 450 |
WW—1.8/10 single | 1.8 | 1.0 | 900 | ≤86 | 15 | 0.32 | 1900*700*1400 | 1950*920*1620 | 530 | 580 |
