G2W-36/300A
BAILIAN
8414804090

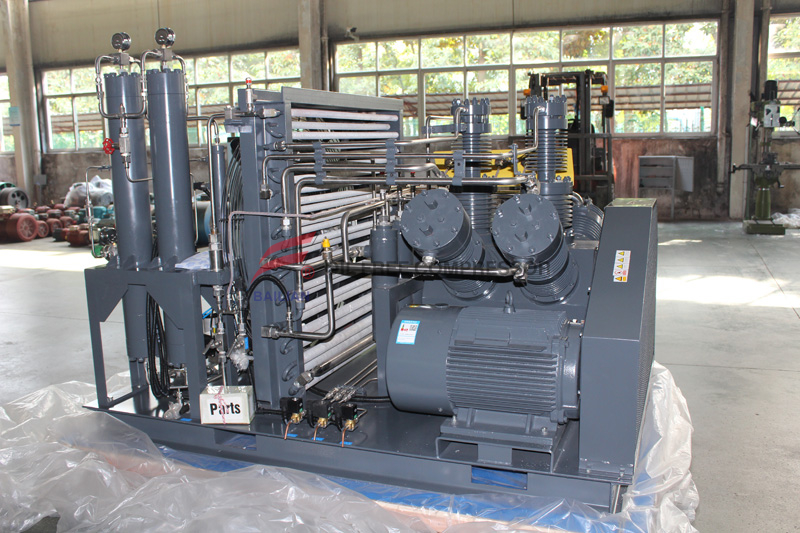

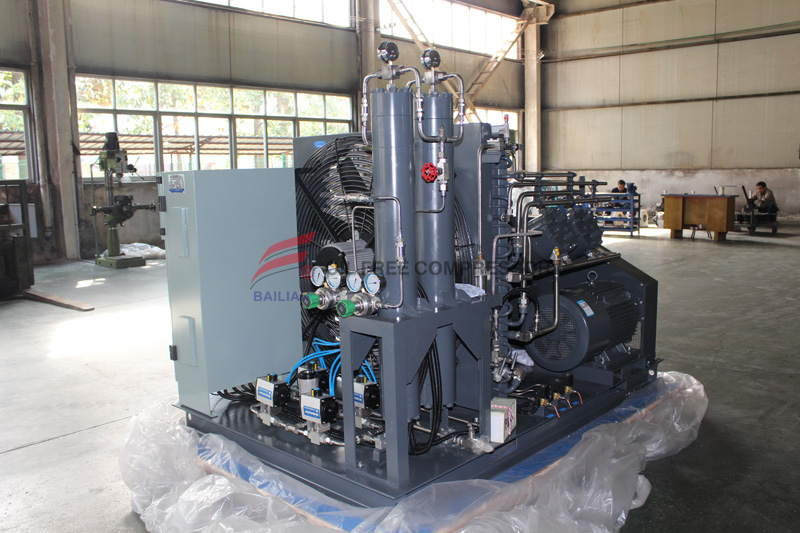

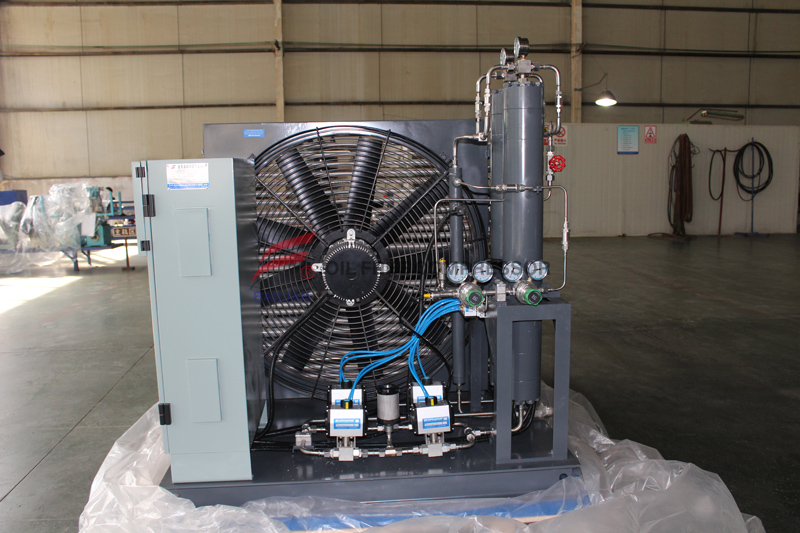

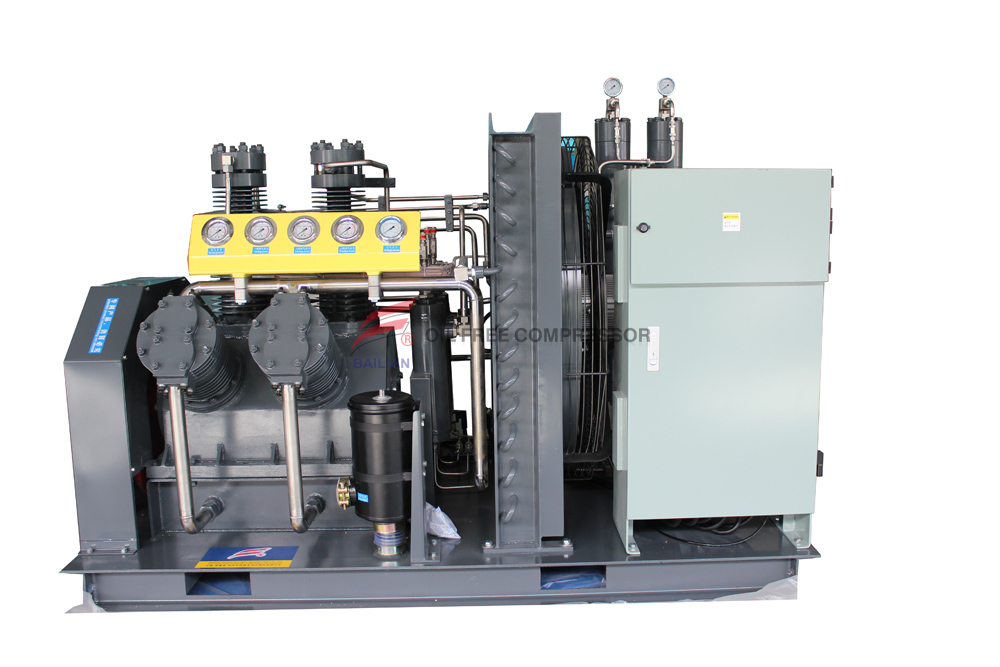

The high-pressure oil-free air compressor produced by Anqing BAILIAN oil-free compressor factory can reach 40MPA. It is mainly used for oil and gas, pipeline test valve testing, etc., which need clean and oil-free compressor air. Customers can customize the adsorption dryer. Remove moisture, reduce dew point, install PLC control, automate unattended work
300bar high pressure air compressor features:
1. Sand-proof design suitable for dusty areas
2. Multi-level compression,
3. All oil-free design ensures that the exhaust gas is clean and oil-free
Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
GSW-100/8-150 | air | 0.8,115 | 15,2160 | 30 | 100 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
G2W-25/400 | air | atmosphere | 40,5750 | 15 | 25 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
G2W-36/300A with dryer | air | atmosphere | 30,4310 | 15 | 36 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
G2W-36/300B without dryer | air | atmosphere | 30,4310 | 75 | 36 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
The high-pressure oil-free air compressor produced by Anqing BAILIAN oil-free compressor factory can reach 40MPA. It is mainly used for oil and gas, pipeline test valve testing, etc., which need clean and oil-free compressor air. Customers can customize the adsorption dryer. Remove moisture, reduce dew point, install PLC control, automate unattended work
300bar high pressure air compressor features:
1. Sand-proof design suitable for dusty areas
2. Multi-level compression,
3. All oil-free design ensures that the exhaust gas is clean and oil-free
Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
GSW-100/8-150 | air | 0.8,115 | 15,2160 | 30 | 100 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
G2W-25/400 | air | atmosphere | 40,5750 | 15 | 25 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
G2W-36/300A with dryer | air | atmosphere | 30,4310 | 15 | 36 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
G2W-36/300B without dryer | air | atmosphere | 30,4310 | 75 | 36 | 220V/380V/415V/440V 50/60HZ | Air/water cooling |
