1m3 High Pressure Medical Booster Oxygen Compressor Gow-3/4-150

high pressure oxygen compressor ,1m3 150barg Oil free high pressure Oxygen compressor

An oxygen compressor is a compressor that is used to pressurize oxygen and deliver or store it.

One of the industries is used for rough oxygen cutting, which pumps 93% pure oxygen into an oxygen cylinder and cuts scrap metal with acetylene gas.

There are two uses for medical oxygen compressors. One is that the hospital's PSA oxygen generator needs to be pressurized to supply various wards and operating rooms, providing 7-10 bar line pressure, and the other is that PSA oxygen needs to be stored to high pressure. In the container, it is easy to move and the storage pressure is generally 100barg, 150barg, 200barg, or higher 300barg pressure.

This medical high pressure oxygen compressor is suitable for inlet pressure 3-4barg (40-60psig) and discharge pressure 150barg (2150psig)

The 3NM3/hour micro PSA air separation oxygen system provides clean oxygen filling service to the community and small island hospitals. It is recommended to work no more than 8 hours per day, 2-3 bottles per bottle.

This compressor features

medical oxygen compressor high pressure bosster  adopts two-stage compression, stainless steel cylinder, the inlet is equipped with low intake pressure protection, the exhaust end is equipped with high exhaust pressure protection, and the exhaust temperature is high. If the temperature exceeds overpressure, the system will alarm and stop, ensuring safe operation. Small in size, light in weight and equipped with casters, it is very suitable for mobile use.

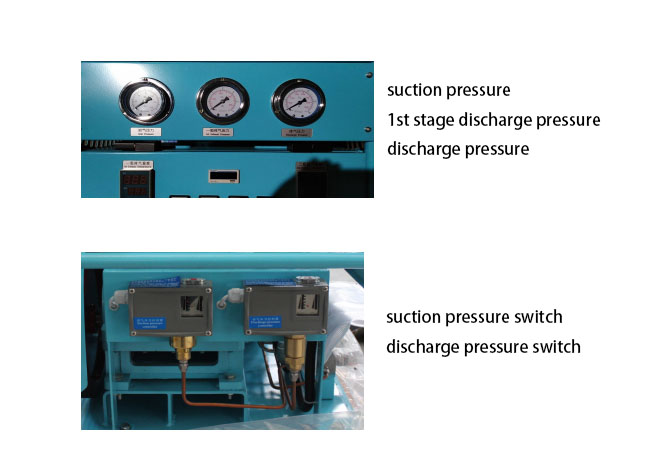

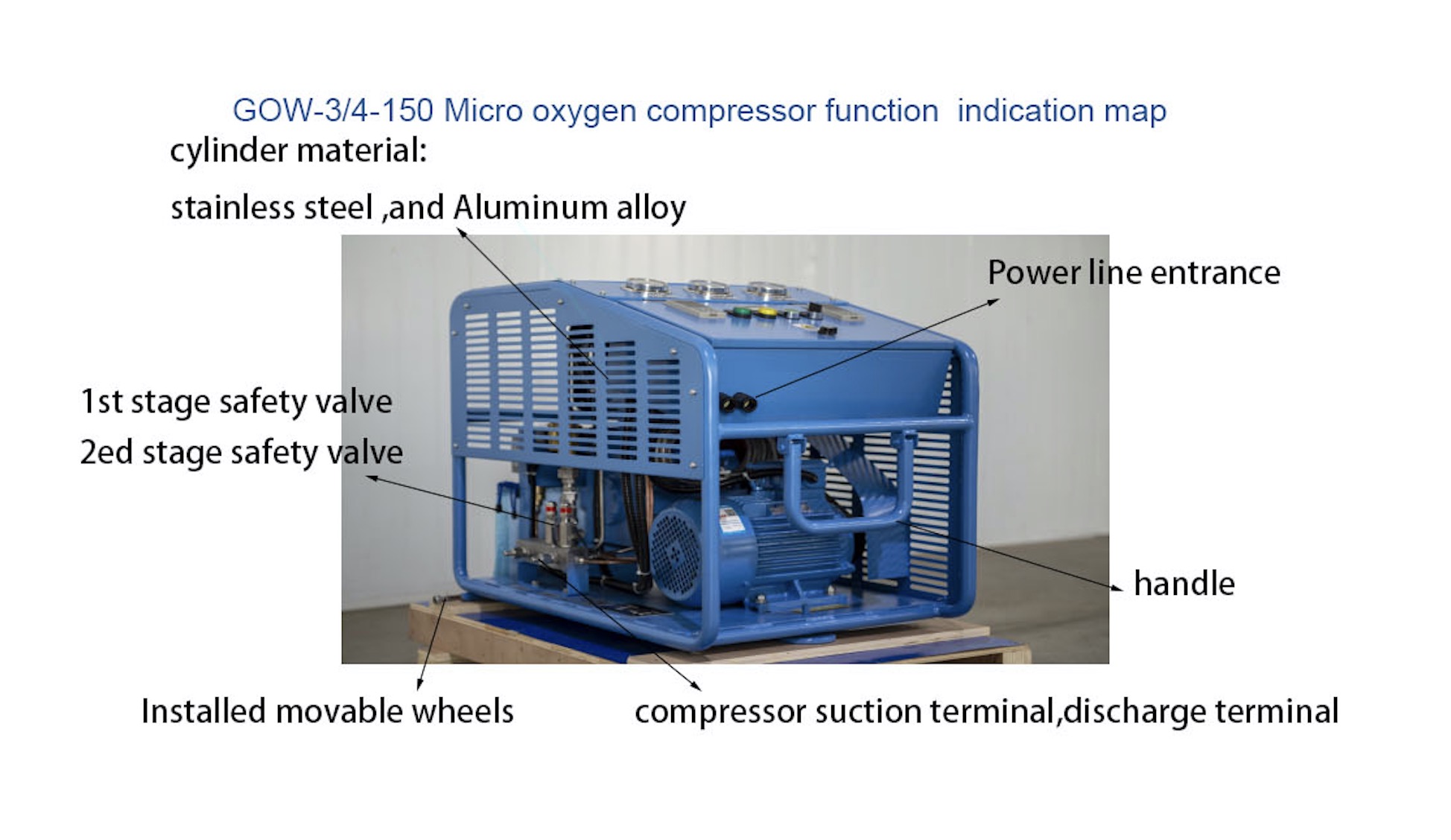

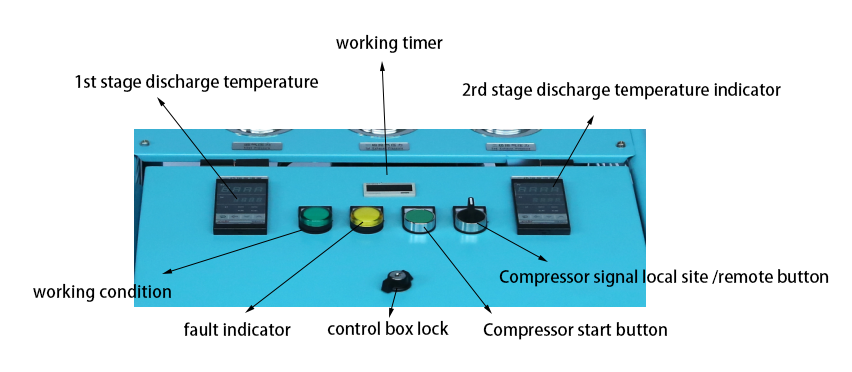

The button function indications for each part of the compressor are as follows, designed to be the kind of Tmall style.

Compressor parameters See attachment

All standard high pressure booster oxygen compressor  are CE marked to meet the requirements of the EU market. We can also provide customized oxygen compressors according to customer conditions.

Our oxygen compressors have the following features

According to the different working conditions of the customer:

1. Completely 100% oil free, no oil required (depending on the specific model)

2. Suitable for VPSA PSA oxygen source

   Stainless steel cylinder

3.NO pollution, keep the same purity into the gas

4.RELIABLE and high quality, comparable to the American RIX brand.

5. TOP has low cost, low maintenance cost and simple operation.

6. 4000 hours piston ring working life under low pressure conditions, 1500-200O hours working life under high pressure conditions

7.TOP brand motor, you can specify the brand, just like the SIMENSE brand

8. Supply to the Japanese market to meet the demanding quality requirements of Japan

9. According to the customer's specific working conditions, the compressor is designed as single machine compression, two-stage compression, three-stage compression and four-stage compression.

10. Low speed, long life, average speed 260-350RPM,

11. Low noise, average noise below 75dB, can work quietly in the medical field

12, continuous continuous heavy-duty operation, can run stably for 24 hours without stopping (depending on the specific model)

13. Each stage has an interstage safety valve. If the stage is overpressured, the safety valve will take off and release the overpressure gas to ensure the stable operation of the compressor.

14. Each level has a temperature controller. If the temperature between the stages exceeds the standard, the temperature display will sound and light alarm.

15. medical high pressure oxygen compressor,obtain CE certification to meet the requirements of the EU market

1. The above parameters are for reference only, and the technical quotation is subject to

2. More displacement, higher filling pressure, please consult us
