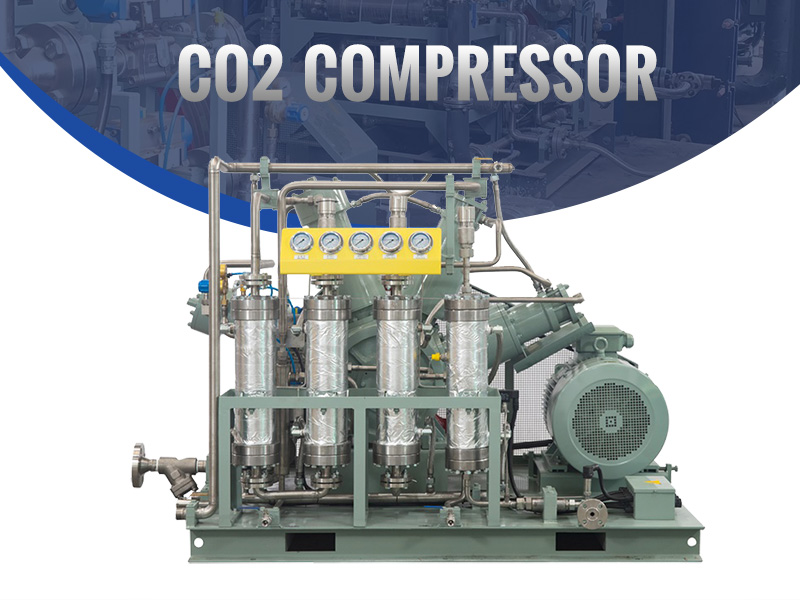

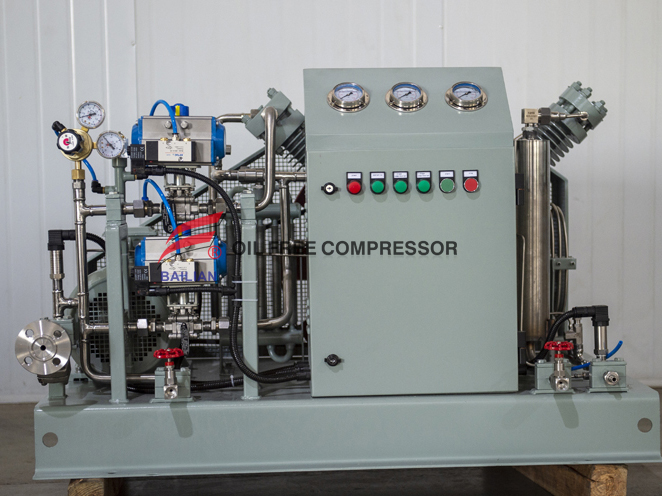

What Is Co2 Compressor?

This carbon dioxide compressor is mainly used for small carbon dioxide compressor with a displacement of 5NM3 to 30NM3 for one hour, an inlet pressure of 1-2 kg, and an exhaust pressure of 20-30 barg. It is suitable for small dry ice plants and CO2 collection after supercritical.

Main design features
Completely oil-free design, self-lubricating material, oil-free, to ensure that compressed gas is not polluted
Double cylinder design, primary or secondary compression, according to the intake pressure, the operation of the secondary cylinder is opened or closed by the small pneumatic cylinder
The cylinder and cooling pipeline are designed with stainless steel to ensure that carbon dioxide is not polluted

Types Of Co2 Compressor

Bailian series of oil-free lubrication Co2 gas booster compressor (hereinafter referred to as the compressor) belongs to oil-free lubrication, reciprocating piston, single acting small compressor. The structural type is divided into one row (ZW type), two rows (VW type), three rows (WW type), four rows (SW type) and vertical ZCW type single-stage, two-stage, three-stage, four stage and five stage compression; The cooling mode is divided into air cooling type and water cooling type; It is designed for users who need pure air source and high environmental requirements. The machine does not need thin oil lubrication. The moving seals in the cylinder are made of self-lubricating materials to ensure that the compressed air source will not be secondary polluted. It can be used to compress or recover clean air, nitrogen, Freon, carbon dioxide and other stable gas media. The machine adopts automatic control mode, with small leakage, low noise, no need to assign special personnel to watch, and can operate reliably for a long time.

This series of compressors are non-standard equipment, which are generally produced according to user requirements: the rated suction pressure of the machine is from micro positive pressure to 4.0MPa or higher, the maximum discharge pressure can be 15.0MPa, the maximum discharge capacity can be 1500 Nm3/h, and the single unit installed power can reach 55kw. The machine is skid mounted as a whole. All parts and components are connected before leaving the factory. The user only needs to connect the inlet and outlet pipes and connect the power supply to enter the commissioning procedure.

According to the use of carbon dioxide compressor

One is that the intake pressure is slightly positive to 2 kg, and the exhaust pressure is about 20 kg - 80 kg, stored in a carbon dioxide cylinder.It is used for the recovery of carbon dioxide gas from dry ice plants and the recovery of carbon dioxide gas after supercritical extraction.

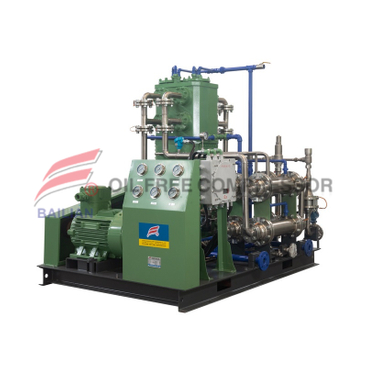

Fashion Design Oil Free Carbon Dioxide co2 Compressor

The intake pressure is 4-6 kg, CO2 is extracted from the CO2 cylinder and filled into the large CO2 cylinder.

According to the structure and displacement of carbon dioxide compressor

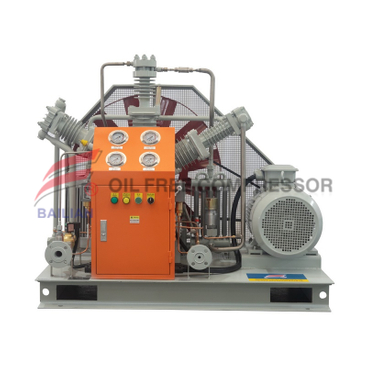

CO2 Extraction Recovery Oil Free Co2 Compressor V Type

Characteristics of V-type two cylinder carbon dioxide compressor

Completely oil-free lubrication to ensure the purity of carbon dioxide gas
Beautiful appearance, simple structure, easy operation and maintenance
V-shaped head, stainless steel cylinder running at low speed, long maintenance interval, high cost performance
The carbon dioxide gas drives the cylinder, follows up the intake pressure, automatically selects the primary or secondary compression, and saves energy and consumption as much as possible
The patented piston ring design, after thousands of hours of continuous operation test, ensures that it can operate for a long time with high strength
Passed the EU CE safety certification

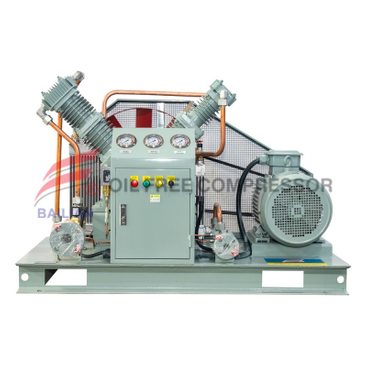

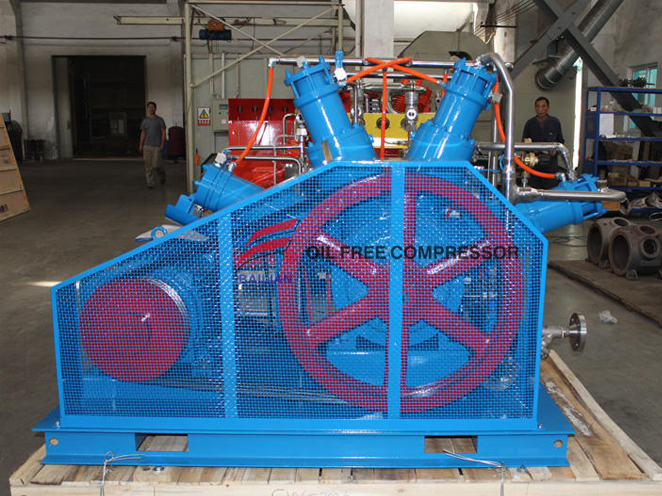

Characteristics of W type three cylinder oil-free carbon dioxide compressor

Completely oil-free lubrication to ensure the purity of carbon dioxide gas
Beautiful appearance, simple structure, easy operation and maintenance
W type head, stainless steel cylinder running at low speed, long maintenance interval, high cost performance
The carbon dioxide gas drives the cylinder, follows up the intake pressure, and automatically selects the primary or secondary or tertiary compression to maximize energy saving and consumption reduction
The patented piston ring design, after thousands of hours of continuous operation test, ensures that it can operate for a long time with high strength

Features of SW type four cylinder oil-free carbon dioxide compressor

Completely oil-free lubrication to ensure the purity of carbon dioxide gas
Beautiful appearance, simple structure, easy operation and maintenance
Fan head, stainless steel cylinder running at low speed, long maintenance interval, high cost performance
The carbon dioxide gas drives the cylinder, follows up the intake pressure, and automatically selects the first or second or third or fourth stage compression to save energy and reduce consumption as much as possible
The patented piston ring design, after thousands of hours of continuous operation test, ensures that it can operate for a long time with high strength

How Does Co2 Compressor Work？

Bailian Operating principle of carbon dioxide compressor

Carbon dioxide compressor is composed of main engine, motor, base, pipeline system, cooling system and display control system.
The movement mechanism of the carbon dioxide compressor is a crank connecting rod mechanism composed of crankshaft, connecting rod, piston and other parts: the motor drives the crankshaft of the compressor to rotate through the belt, the crankshaft drives the connecting rod, and the connecting rod drives the piston to move in a reciprocating straight line, resulting in changes in the cylinder volume. Since the automatic gas valve determines the suction and exhaust process of the cylinder, the purpose of increasing the gas pressure is achieved. The crankshaft rotates for one cycle to complete a working cycle, and the gas with lower pressure enters the cylinder through the intake port and is compressed into the gas with higher pressure and discharged for use.
There is no liquid lubricant in the carbon dioxide compressor. The piston ring and guide ring are made of high-quality polytetrafluoroethylene with self-lubricating performance. All main parts have certain rust resistance. All bearings are equipped with sealing rings to ensure reliable operation of the machine.

Workflow of Bailian carbon dioxide compressor

Under standard working conditions: carbon dioxide gas is sucked into the first stage cylinder of the compressor through the filter, and then after the first stage compression, it is discharged to the first stage cooler for cooling, and then it is sucked into the second stage cylinder. After the second stage compression, it is discharged to the second stage cooler, and then it is discharged through the check valve (to the high-pressure gas tank - configured by the user) for use. If the suction inlet pressure of the carbon dioxide compressor is ≥ 2.0Mpa, the primary startup valve is closed, and the gas is only compressed by the secondary cylinder of the compressor and discharged to the gas tank. In addition, the set value of the pneumatic valve of the third stage carbon dioxide compressor is: the air inlet value (0.6~1.5Mpa), the first stage pneumatic valve is open, and the other pneumatic valves are closed. Air inlet value (1.5~2.8Mpa) The first and third stage pneumatic valves are closed, and the second stage pneumatic valve is opened. When the inlet air is ＞ 2.8Mpa, the primary and secondary pneumatic valves are closed, and the tertiary pneumatic valves are opened. Unloading solenoid valve is also set on the exhaust pipe to vent the gas in the pipe and cylinder during shutdown to prepare for the next light load startup (to prevent frequent motor startup, restart after shutdown should be more than 3 minutes).
Control mode of carbon dioxide compressor
The carbon dioxide compressor is monitored by pressure sensor, and the startup and shutdown are controlled by two pressure transmitters. The specific control mode is as follows:
Start: when the CO2 inlet pressure exceeds the set value and the starting conditions are met, press the start button to start the main motor.
Stop: when the carbon dioxide inlet pressure is lower than the lower limit (0.5Mpa) and the exhaust pressure reaches the set value, the compressor will stop automatically.

Clients We Proud Of

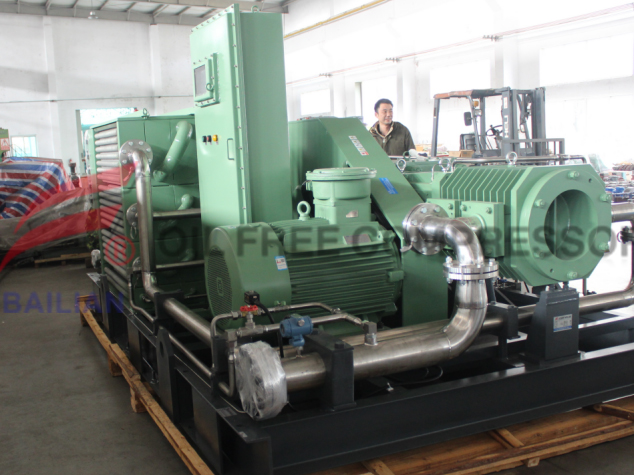

Oil free carbon dioxide compressor: used for carbon dioxide extraction process.

Find High-quality Co2 Compressor For Multiple Uses

Supercritical fluid technology has emerged since the 1970s,Then it easily surpassed the traditional technology with its obvious advantages of environmental protection and high efficiency.
The technology can rapidly penetrate into extraction separation, petrochemical industry and chemical reaction industry. Engineering, material science, biotechnology, environmental engineering and many other fields,And become one of the leading roles in the development of these fields.
Supercritical fluid extraction is particularly suitable for food and pharmaceutical industries. In the United States and Europe,
Tea processing and decaffeination plants with an annual production capacity of more than 10000 tons have already been put into production,
The extraction of effective ingredients and spices of hops has reached the industrialization standard in many countries model. Research and Application of Supercritical Fluid Extraction Technology in the Extraction of Drugs and Health Products. Great progress has also been made in the use of supercritical CO2, and American scientists have begun to use supercritical CO2 to plant Anti cancer drugs are extracted from the substance, and health products are extracted from oil seeds.

Application of carbon dioxide compressor in food

Supercritical carbon dioxide was used to extract oil from sunflower seeds and peanuts. The oil contained neutral lipid, low phosphorus content, low coloring degree and no odor.
Applicable model ZW-550/6-80, inlet pressure 3-6kg, exhaust pressure 80kg, mainly used for CO2 gas recovery after extraction, stored in CO2 cylinders.
Application of carbon dioxide compressor in medical and health products

Ginkgo flavonoids extracted from ginkgo biloba leaves by SCFE method
First class extracted polyunsaturated fatty acids (DHA, EPA) from sand
Seabuckthorn oil extracted from thorn seeds, lecithin extracted from egg yolk, etc
Vascular disease has unique curative effect
Applicable model: CW-600/0.7-15, slightly positive inlet pressure, 15kg exhaust, 600m3 flow
For recovery of CO2 gas after extraction.
Application of carbon dioxide compressor in beer brewing

Hops are indispensable additives in beer brewing, with unique
Aroma, freshness and bitterness.
Each liter of beer contains about 5 grams of carbon dioxide. When making beer, it is poured into the bottle through a certain pressure. Beer poured into the glass will produce many foam, this foam is called beer hops. Hops are produced in relation to a gas called carbon dioxide. In the brewing process of beer production, carbon dioxide needs to be compressed to dissolve in the liquor, and then bottled and capped. When drinking beer, the pressure inside the bottle is greater than that outside the bottle. As soon as the bottle cap is opened, carbon dioxide will be pumped out one after another, producing many bubbles; Pour the beer into the glass and more bubbles will come out. Beer with substandard carbon dioxide will taste very bad.
Applicable model, CW-600/0.3-5
0.3 kg air intake, 5 kg air exhaust, 500 standard square meters flow for one hour.
Carbon dioxide compressor recovery project in dry ice plant

Project background: In the process of making dry ice, dry ice manufacturers will produce a large amount of micro positive pressure CO2 gas due to the volatilization of dry ice, which will not only cause waste of industrial energy, but also fail to meet the requirements of laws and regulations. Therefore, it is necessary to recycle and reuse these CO2 gas.
Applicable model: 3ZW-39/30, micro positive inlet pressure, 30kg exhaust pressure.

Application of carbon dioxide compressor in food
Application of carbon dioxide compressor in medical and health products
Application of carbon dioxide compressor in beer brewing
Carbon dioxide compressor recovery project in dry ice plant
