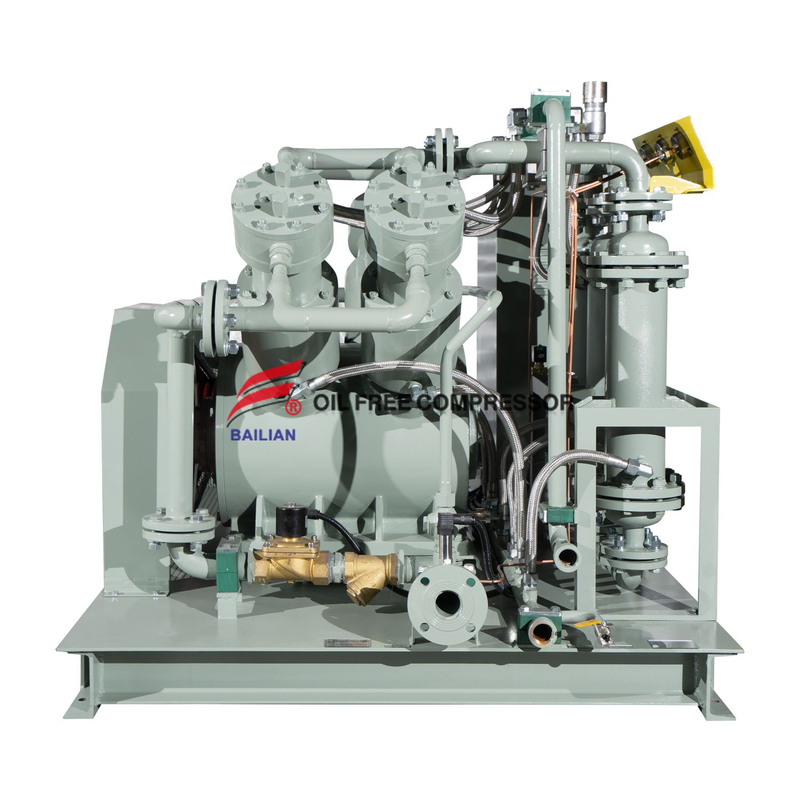

Double V-shaped Water Cooling Oil Free N2 Compressor 2VW-140/8

Medium

N2

Quantity

1

Inlet pressure  MPa（G）

Atmospheric pressure

Inlet temperature       ℃

0~30

Discharge pressure    Mpa（G）

0.8

Discharge temperature（after cooling） ℃

≤50℃

Flow rate    Nm³/h

140（Suction pressure normal pressure）

Piston stroke          mm

110

Model

2VW-140/8

Compression stages

2

Structural style

Double V-shaped

Cylinder quantity

4

Shaft speed      r/min

 580 ※

Voltage          V

380

Cooling mode

Water cooling

Cooling water flow        t/h

3.5

Cooling water temperature      ℃

≤32

Shaft power           kw

≤22

Main motor speed        r/min

1460

Motor

30kw   380V50Hz ※

Dimensions mmXmmXmm

1800*1050*1350 ※

weight         T

1.5

Inlet and outlet dimensions

Inlet  DN80

Discharge  DN25

Inlet and outlet water interface

DN25

Drive mode

Belt drive

Main material

frame, crankshaft

cast iron

Air valve

Stainless steel

Piston rings, guide rings

Filled with PTFE

Scope of supply

Host, motor, cooler, control cabinet, skid mounted chassis, intake filter, safety valve, outlet companion flange, random documents, etc

Additional notes

The data in the ※ column is for user reference, and there may be discrepancies when the machine leaves the factory.

Delivery time

60 days after the contract is signed and the advance payment is received
