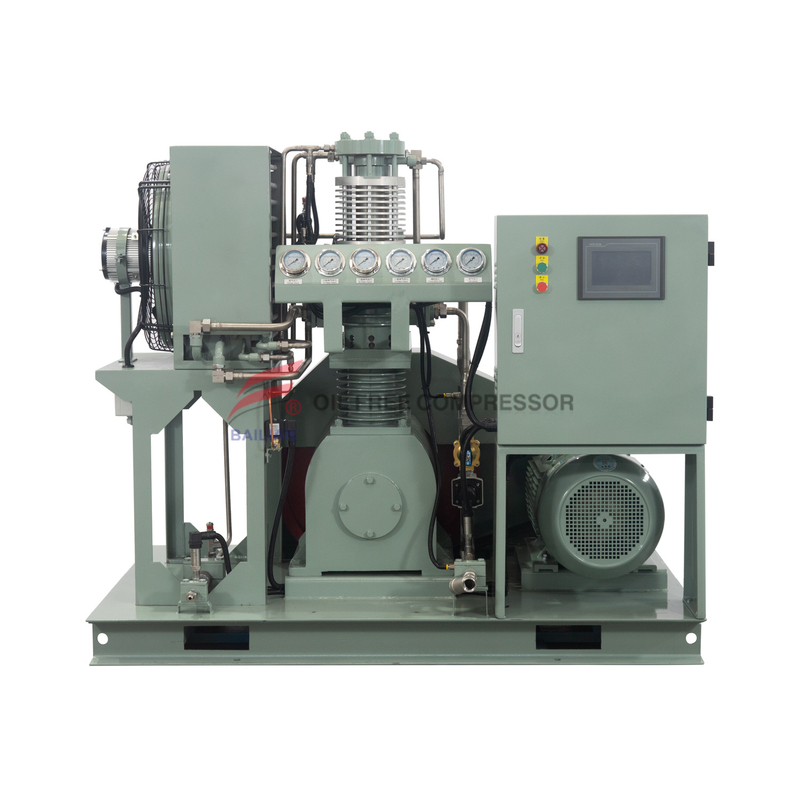

GZW-40/8-300
The nitrogen compressor has the physical and chemical properties of easy processing, wear resistance, impact resistance and corrosion resistance, which can realize that the running parts accurately meet the production requirements, the service life is better than the traditional repair process, and the anti-corrosion performance is better than the traditional method. And the high-reliability material properties can also prolong the service life of the equipment and make maintenance more worry-free. For the leakage of nitrogen compressor oil, at the same time, the current nitrogen compressor is equipped with a professional engineer team, which can respond quickly 24 hours a day, quickly formulate the repair process, and the process of plugging the leakage is also very simple and convenient, which can greatly shorten the nitrogen compressor for enterprises. Oil spill treatment time, reduce business losses.
Medium | N2 | Quantity | 1开 备 | ||
Inlet pressure MPa（G） | 0.8 | Inlet temperature ℃ | ≤ 40 | ||
Discharge pressure Mpa（G） | 30.0 | Discharge temperature（after cooling） ℃ | ≤ 50 | ||
Flow rate Nm3/h | 40 | Piston stroke mm | 90 | ||
Mode | GZW-40/8-300 | Compression stages | 4 | ||
Structural style | Oil free lubrication (vertical) | Cylinder quantity | 4 | ||
Shaft speed r/min | 280 ※ | Voltage V | 380 | ||
Cooling mode | WATER COOLING | Cooling water flow t/h | 2.0 | ||
Shaft power kw | ≤15.0kw | Main motor speed r/min | 970 | ||
Air inlet and outlet interfaces mm | 25、M14 X 1.5 | Inlet and outlet interfaces mm | 15 | ||
Motor | 18.5KW 380V 50Hz ※ | ||||
Dimension mmXmmXmm | 1600X1000X1460 ※ | Weight T | 1.2 ※ | ||
Drive mode | Belt drive | ||||
Material of parts in contact with gas | Cylinder | stainless steel | |||
Valve | stainless steel | ||||
Pipeline and cooler | stainless steel | ||||
Scope of supply | Main engine, motor, skid mounted chassis, starting cabinet, air inlet filter, primary meter and control element before the machine, safety valve, accompanying documents, accompanying spare parts, etc. (Note: the final technical agreement shall prevail). | ||||
Additional notes | Automatic startup and shutdown of intake and exhaust pressure protection | ||||
Delivery time | 50 days after the contract is signed and the advance payment is received | ||||
