Gas Booster Compressor Project for an Australian Gas Company

1. Customer Background & Challenges

An Australian gas manufacturer is a professional service provider specializing in gas production and supply, covering industrial, medical and specialty gas sectors. Driven by local industrial expansion and growing medical‑gas demand in Australia, the customer’s legacy gas boosting system suffered from insufficient capacity, high energy consumption and frequent maintenance. Equipment upgrade became urgent to support business growth.

Specific operational pain points are listed below:

• Capacity Bottleneck: Existing booster compressors had inadequate displacement and failed to meet peak‑period gas supply requirements, resulting in delayed delivery for some customer orders.

• High Operation & Maintenance Costs: The original diaphragm compressors required fluorinated oil for oxygen service. The lubricant carried high procurement costs. Aging hardware triggered frequent breakdowns; annual maintenance costs accounted for over 15 % of total equipment expense, and unplanned downtime disrupted continuous production.

• Excessive Energy Consumption: Low‑efficiency legacy units delivered around 20 % higher power consumption per ton of gas than industry‑leading benchmarks, conflicting with Australia’s strict energy‑saving and environmental‑protection regulations.

2. Technical Requirements & Constraints

Core technical specifications specified by the customer:

• Oil‑free Design: Oil‑free lubrication was mandatory to guarantee gas purity meeting ISO 8573‑1 Class 0, the highest oil‑free grade, and eliminate lubricant contamination risks.

• High Compression Ratio & Stable Output: Inlet pressure: 0.5‑1.0 MPa; required discharge pressure: 20‑30 MPa; volumetric flow: 50 Nm³/h; pressure fluctuation ≤ ±0.2 MPa.

• Robust Operation under Variable Conditions: Reliable performance across Australia’s wide temperature‑humidity range (−10 ℃ ~ 40 ℃, relative humidity 30‑90 %), with moisture‑proof and anti‑corrosion features.

• Integrated Control: Automatic control system with pressure, temperature and fault‑alarm functions visualized on the dashboard for convenient monitoring.

• Compliance: CE marking and conformance with Australian local safety standards.

3. Limitations of Previous Alternatives

The customer previously trialled imported oil‑lubricated compressors and locally‑modified units, both with critical drawbacks:

• Oil‑lubricated compressors: Lower initial capital outlay, yet frequent lubricant and filter replacements pushed up maintenance expenditure. Gas purity only reached Class 1, insufficient for medical‑grade gas production.

• Locally‑retrofitted equipment: Immature technical performance. Maximum compression ratio limited to 15:1, unable to deliver 30 MPa high‑pressure output. No intelligent control system; fault diagnosis relied heavily on operator experience and led to lengthy downtime.

4. Solution: Anqing Bailian Oil‑free Gas Compressors

Anqing Bailian delivered a custom‑tailored fully‑oil‑free reciprocating gas‑compressor solution, adopting model GOW‑50/4‑200 for oxygen and GArZ‑50/4‑300 for argon. Key technical highlights:

• Full Oil‑free Lubrication: Self‑lubricating piston rings and packing seals made of filled PTFE. Zero lubricant inside the compression chamber, achieving ISO 8573‑1 Class 0 gas purity.

• High Compression‑Ratio Architecture: Four‑stage compression. Inlet pressure 0.5‑1.0 MPa; adjustable discharge pressure up to 30 MPa; nominal flow 50 Nm³/h; pressure fluctuation kept within ±0.2 MPa to satisfy peak‑load requirements.

• Integrated Control System: Visual dashboard displaying inlet pressure, inter‑stage pressures, inter‑stage temperatures and fault diagnostics.

• Energy‑optimized Construction: Redesigned cylinder cooling and valve assemblies. Air‑cooled configuration for oxygen compressors; water‑cooling plus chiller unit and dust‑proof enclosure for argon compressors.

• Harsh‑environment Adaptability: High‑performance anti‑corrosion coating on equipment housing; electrical components rated IP55, well‑suited for Australia’s coastal salt‑fog conditions.

5. Project Implementation Highlights

• Customized Engineering: Cylinder material and sealing packages were adjusted according to process media (oxygen, nitrogen, argon) to guarantee medium compatibility.

• Fast Delivery & Commissioning: Only six weeks from contract signature to equipment shipment. Due to pandemic‑related travel restrictions, Anqing Bailian engineers conducted remote video‑guided on‑site installation, cutting commissioning time down to just two days.

• Training & After‑sales Support: One session of on‑site operational training, 12‑month product warranty, plus 7×24‑hour remote technical support with fault response ≤ 4 hours.

6. Project Outcomes & Benefits

After commissioning, the customer achieved substantial economic and operational improvements:

• Enhanced Throughput: Volumetric flow rose from original 30 Nm³/h to 50 Nm³/h, representing a 67 % production‑capacity increase.

• Improved Reliability: Mean Time Between Failures (MTBF) extended from 1 000‑1 500 hours to 3 000 hours; maintenance expenditure reduced by 50 %.

• Assured Gas Purity: Third‑party verification confirmed medical‑grade gas quality, enabling the customer to expand into high‑end gas market segments.

• Positive Business Feedback: Satisfied with equipment stability and energy‑saving performance, the customer subsequently placed repeat orders for three additional identical compressors for other production sites.

7. Customer Testimonial

“Anqing Bailian’s oil‑free gas compressors have completely solved our capacity and purity challenges. The units have run for over two years without major failures. Energy consumption is more than 20 % lower than anticipated. Fast and dependable after‑sales service makes them one of our most trusted suppliers.”

— Mark Thompson, Operations Director, Australian Gas Company

8. Technical Specification Sheet

9. Figure Captions

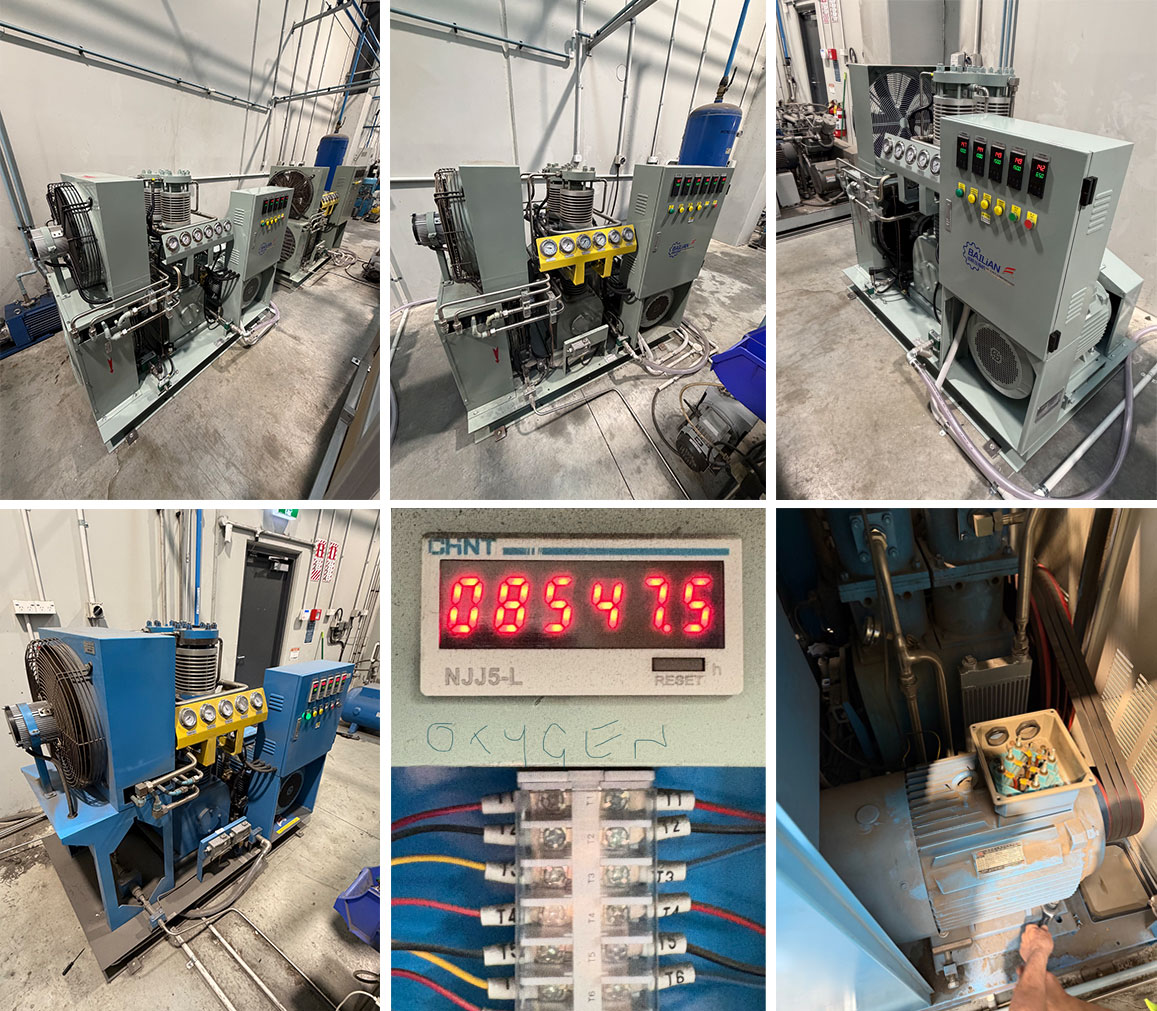

• Equipment Installation Photo: On‑site installation of GOW‑50/4‑300 compressor at the Australian customer’s plant, showing main unit, cooling system, control cabinet and piping layout, highlighting compact footprint and anti‑corrosion finishing.



• System Schematic Diagram: Compressor integrated with upstream‑downstream process equipment (gas storage tanks, purification units, flow meters). Key control nodes and safety devices (safety relief valves, pressure sensors) are annotated.



10. Summary

With the customized oil‑free gas‑compressor solution, Anqing Bailian helped this Australian gas manufacturer break bottlenecks in production capacity, gas purity and energy efficiency, evolving from merely an equipment vendor into a technical partner. This project demonstrates the global competitiveness of high‑end Chinese‑manufactured gas compressors and delivers a replicable energy‑saving and efficiency‑boosting reference for the worldwide gas industry.
