Industrial High Pressure Natural Gas Cng Compressor

1.oil free
2.single or double /three or four stage
3.easy moving
4.heavy duty ,and 24 hours continues working 5.silent working
cooling way:
ETD time:
packing box:
  • GHW-20/6-250


  • 8414804090

high pressure cng compressor refers to a device that pressurizes natural gas through a compressor to a pressure greater than 10 MPa and not greater than 25 MPa, is stored in a high pressure vessel in a gaseous state, or is used for long-distance transportation of natural gas.

The main use of high pressure industrial cng compresosr in natural gas filling stations

Gas station

The CNG refueling station includes a parent station, a standard station, and a substation. The refueling mother station generally takes gas from the high-pressure pipeline to refuel the CNG cylinder truck, and then delivers the gas to the sub-station through the CNG cylinder truck. At the same time, it has the ability to directly refuel the CNG vehicle; the standard station is generally from the city. The pressure pipe network takes the gas and refills the CNG car; the sub-station uses the CNG gas cylinder car as the air source to refuel the CNG car. The standard station takes gas from the medium-pressure pipe network. Because of its relatively large flow rate, it has a large impact on the urban medium-pressure pipe network and affects other users' gas supply. It needs to be comprehensively considered in the selection. More of the sub-master form, in the sub-station type can be divided into regular sub-station and hydraulic sub-station.

A CNG car is a car that uses compressed natural gas instead of conventional gasoline or diesel as a fuel for automobiles. The regions with natural gas pipelines at home and abroad are mainly developing CNG vehicles.

CNG automobile means that natural gas mainly composed of methane is stored in a cylinder similar to a fuel tank in a car at a pressure of about 25 MPa, and is used as an automobile fuel. The main process is to reduce the 0.3~0.8MPa low-pressure natural gas at the CNG bus station, and then boost it to 25MPa through the natural gas compressor. It is controlled by the sequential control panel and stored in the high, medium and low pressure sequence to the gas storage cylinder group, and then the CNG dispenser. Fill the car cylinder. The high-pressure gas of the automobile cylinder is decompressed by the decompression device, and then the gas is supplied to the engine through the gas mixture.

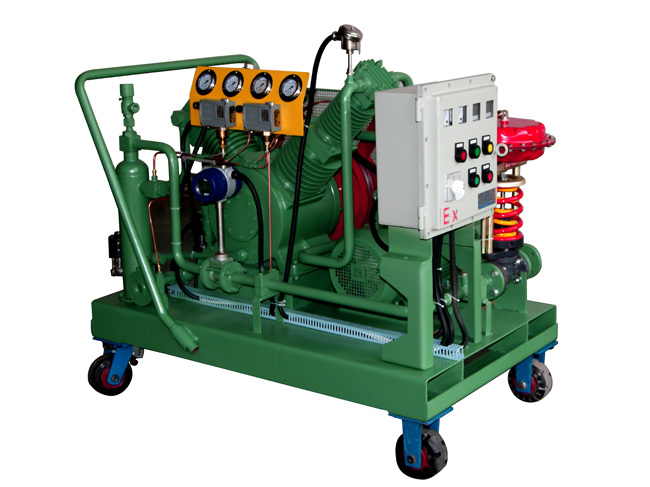

High pressure cng compressor (3)

here is high pressure  industrial cng natural gas compressor technical data:

Model  Working medium  suction pressure (Mpa,Psig) Discharge pressure (Mpa,Psig) Motor.KW  Flow rate Nm3/hr Voltage  Cooling way
HD-191/0.2-0.56 cng gas 0.02,3 0.056,8 7.5 191 220V/380V/415V/440V 50/60HZ water cooling
HZW-100/10-200 cng gas 1,14.5 20,2875 22 100 220V/380V/415V/440V 50/60HZ water cooling
HZW-200/10-200 cng gas 1,14.5 20,2875 37 200 220V/380V/415V/440V 50/60HZ water cooling
HZW-300/10-200 cng gas 1,14.5 20,2875 55 300 220V/380V/415V/440V 50/60HZ water cooling
HZW-500/10-200 cng gas 1,14.5 20,2875 90 500 220V/380V/415V/440V 50/60HZ water cooling
HD-600/3-12 cng gas 0.3,43 1.2,172 55 600 220V/380V/415V/440V 50/60HZ water cooling
HV-20/5-45 cng gas 0.5,72 4.5,646 5.5 600 220V/380V/415V/440V 50/60HZ water cooling
HW-80/0.5-6 cng gas 0.05,7 0.6,86 15 80 220V/380V/415V/440V 50/60HZ water cooling
HD-30/0.1-90 cng gas 0.01,1.4 9,1293 15 30 220V/380V/415V/440V 50/60HZ water cooling
GHW-10/6-250 cng gas 0.6,86 25,3600 4 10 220V/380V/415V/440V 50/60HZ water cooling
GHW-20/6-250 cng gas 0.6,86 25,3600 7.5 20 220V/380V/415V/440V 50/60HZ water cooling
GHD-30/6-250 cng gas 0.6,86 25,3600 15 30 220V/380V/415V/440V 50/60HZ water cooling

1.The above parameters are for reference only, and subject to the final technical quotation

2.More displacement, higher filling pressure, please consult us

3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:

*Compressor working medium:

 If single gas ,how many purity ? if mixed gas , what’s gas content lit ?

*Suction pressure(gauge pressure):     barg

*Exhaust pressure(gauge pressure):     barg

*Flow rate per hour for compressor: (Nm3/hr):

Compressor gas suction temperature ?

Compressor working hours per day :    hours

Compressor working site altitude :   m

Environment temperature ℃:

Has cooling water in the site or not ?

Voltage and frequency for three phase :

Do not has water vapor or H2s in the gas ?

Application for compressor?
