DWW-1.0/14.5
BAILIAN
8414804090

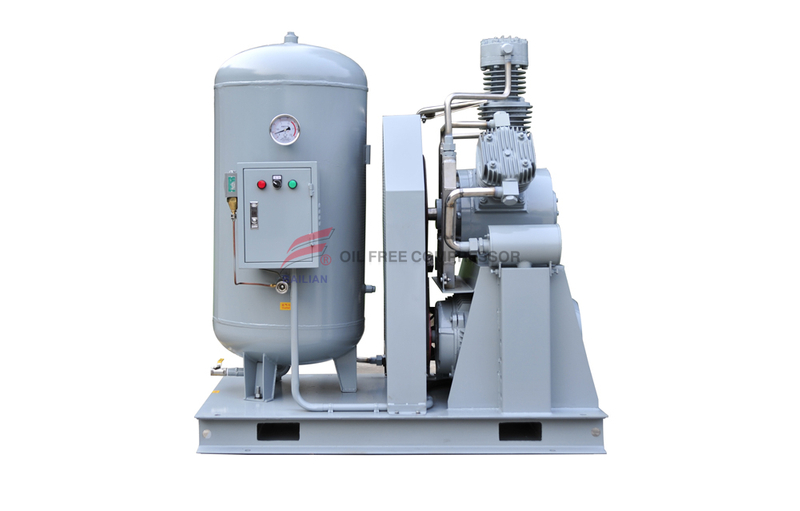

The PET air compressor is the main body in the air blower of the blow molding machine. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a special blower for compressed air. Air pressure generating device. Blowing air compressors are divided into: low pressure blowing machine (14-25bar), medium pressure blowing machine (25-35bar), high pressure blowing machine (35-40bar).
TOTALLY OIL FREE AIR COMPRESSOR
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | AIR | |
2 | model | DWW-1.0/14.5 | |
3 | Structure | oil free reciprocating 3stage 3 cylinder | |
4 | Pressure stage | 3 | |
5 | Rated capacity(standard)m3 /min | 1 | |
6 | Rated inlet pressure bar(G) | Atmosphere pressure | |
7 | Rated outlet pressure bar(G) | 14.5 | |
8 | Inlet temperature℃ | ≤40 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 660 ※ | |
12 | Cooling way | Air cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free | ||
Shaft power | |||
14 | Motor power Kw | 11kw 380V 50Hz 3Ph ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External diamension L×W×H mm | 1350*800*1320 ※ | |
19 | outlet mm | DN25 | |
20 | Weight Kg | 450 ※ | |
21 | Voltage | 380v 50hz 3phase | |
22 | Delivery time | 35 days | |
23 | Working condition | Heavy duty | |
