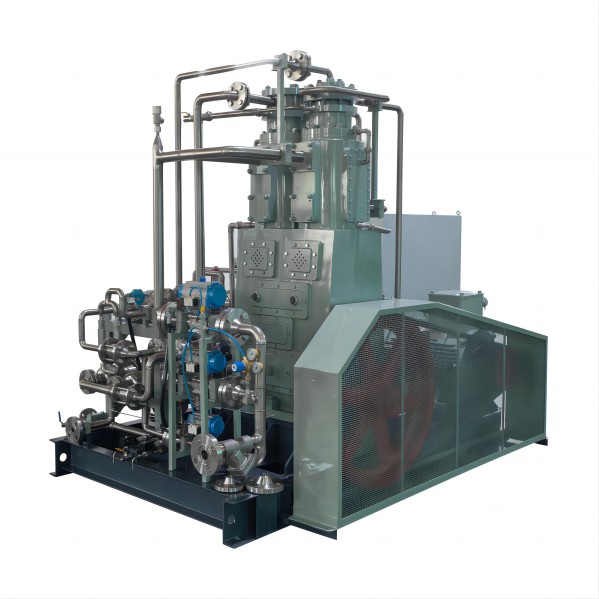

Recovery And Purification of CO2

Recovery and purification of CO2

Carbon dioxide recovery devices are currently widely used in the beverage and food industries, and are also the most economical method for producing high-purity food grade carbon dioxide, provided that there is sufficient quantity and quality of crude carbon dioxide gas.

The carbon dioxide recovery device is mainly used for the washing, purification, drying, liquefaction, and storage of CO2 gas received from the fermentation process, calcium chloride reaction process, and dry ice production process in breweries and distilleries. The carbon dioxide recovery device is automatic and requires the lowest operating cost.

Characteristics of recycling equipment

1. Competitive prices

2 Lower installation area

3.Short installation and debugging time

4. High efficiency

5 High performance

6 Low maintenance costs

Recovery of CO2

The fermentation process in breweries and distilleries

Industrial processes/fuel gases

Various sources - brewery fermentation, natural wells, or by-products from chemical processing industries. Based on advanced purification processes, purification technology removes any impurities from the primary purification stage, and then in a CO2 compressor, deodorization&drying, liquefaction&stripping are carried out to reduce odors, moisture, and non condensable impurities to an acceptable level.

This innovative technological solution enriches the factory's ability to recover up to 99.99% of delivered carbon dioxide purity.

List of main equipment

(A) CO2 recovery device (CO2 gas produced by brewery fermentation)

Low pressure gas scrubber

Carbon dioxide - balloons

Carbon dioxide - compressor

Carbon dioxide pre cooler and separator

Carbon dioxide - deodorant and drying device

Carbon dioxide stripping tower and reboiler

Carbon dioxide - liquefier with refrigeration device

Liquid carbon dioxide - storage tank with condensing device

The motor control panel adopts PLC control.

(B) CO2 recovery device (CO2 gas obtained from fermentation in distillery)

Carbon dioxide gas blower

Petroleum ether gas scrubber

Buffer tank

Carbon dioxide - compressor

High pressure water circulation pump and high-pressure gas scrubber

Carbon dioxide deodorization tower

Carbon dioxide pre cooler and separator

Carbon dioxide drying device

Liquefier with CO2 refrigeration device

Carbon dioxide stripping tower reboiler

Liquid carbon dioxide - storage tank with condensing device

The motor control panel adopts PLC control

(C) CO2 recovery unit (CO2 gas received from CaCl2 process unit)

Low pressure caustic soda scrubber with circulation pump

Low pressure washer with circulation pump

Carbon dioxide - balloons

Carbon dioxide gas compressor

Purification tower

Carbon dioxide pre cooler and separator

Carbon dioxide deodorization tower

Carbon dioxide drying device

Carbon dioxide stripping tower and reboiler

Liquefier with CO2 refrigeration device

Liquid carbon dioxide - storage tank with condensing device

The motor control panel adopts PLC control
