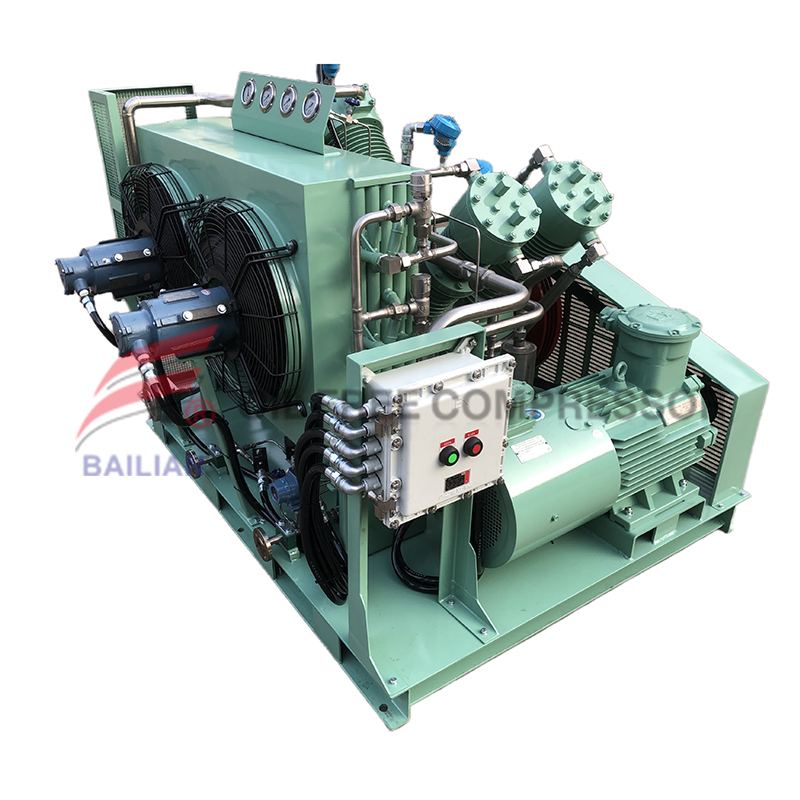

2VCW-127/0.5-18
BAILIAN
·High efficiency
Our oil-free CO2 compressors are designed to be small, low speed and completely oil-free. Therefore, it does not require a single drop of oil to be added during use and consumes low energy. This allows it to do more work in the same amount of time as other CO2 compressors.
·Structural stability
The moving parts and equipment of our CO2 compressors are made of stainless steel in a corrosion-resistant design, which is highly resistant to corrosion and which does not require excessive working conditions. In addition, its simple structural composition requires little time for either installation or dismantling.
·Wide range of applications
Oil-free CO2 compressors for pressurization, pressure regulation, power supply, blowing and other applications can also play an important role in many areas such as power plants, the food industry and geological storage. It is also highly customizable, allowing the user to determine the type of compressor they need to purchase for each application.
To summarize, these are the main advantages of our oil-free CO2 compressors, and we have absolute confidence in the quality of our products and after-sales service. Meanwhile, we guarantee that the products used in practice are absolutely identical to those described.
TECHNICAL DATA | ||||
Medium | CO2 | Quantity | 1 | |
Inlet pressure MPa（G） | 0.05 | Inlet temperature ℃ | 0～40 | |
Discharge pressure Mpa（G） | 1.8 | Discharge temperature（after cooling） ℃ | ≤55 | |
Flow rate Nm3/h | 127（while inlet pressure=0.05MPa） | Piston stroke mm | 110 | |
Model | 2VCW-127/0.5-18 | Compression stages | 3 | |
Structural style | V-shaped pry mounted | Cylinder quantity | 4 | |
Shaft speed r/min | 580 ※ | Voltage V | 380 | |
Cooling mode | Air cooling | Cooling water flow t/h | --- | |
Shaft power kw | 18.5 | Main motor speed r/min | 1460 ※ | |
Motor | 22kw 380V 50Hz※ | |||
Dimensions mmXmmXmm | L1850×W1250×H1350 ※ | weight t | 1.78 ※ | |
Inlet/outlet dimensions mm | DN65/DN20 | Water Inlet/outlet dimensions mm | ----- | |
Drive mode | V-belt | |||
Main component materials | frame, crankshaft | cast iron | ||
Air valve, cylinder liner | Stainless steel | |||
Piston rings, guide rings | Filled with PTFE | |||
Scope of supply | Host, motor, cooler, separator, skid mounted chassis, starter cabinet, intake filter, safety valve, random documents, etc. | |||
Additional notes | The data in the ※ column is for user reference, and there may be discrepancies when the machine leaves the factory. | |||
Delivery time | 70 days after the contract is signed and the advance payment is received | |||
