WW-0.5/60 W type Skid mounted air compressor

Medium

Air

Quantity

1

Inlet pressure  MPa（G）

Atmospheric pressure

Inlet temperature        ℃

-10～35

Discharge pressure    Mpa（G）

6.0

Discharge temperature（after cooling） ℃

≤55

Flow rate        m³/min

0.5

Piston stroke          mm

90

Mode

WW-0.5/60

Compression stages

3

Structural style

W type Skid mounted

Cylinder quantity

3

Shaft speed      r/min

   640  ※

Voltage               V

380

Cooling mode

Air cooling

Cooling water flow        t/h

－

Shaft power           kw

≤7.0

Main motor speed        r/min

1460

Motor

11kw   380V 50Hz ※

Dimensions   mm

1400×1000×1250 ※

Weight        T

   0.50  ※

Drive mode

Belt drive

Material of parts contacting with gas

Air valve and cylinder

Cast iron

piston

Aluminum alloy/stainless steel

Piston ring, guide ring

Filled PTFE

Scope of supply

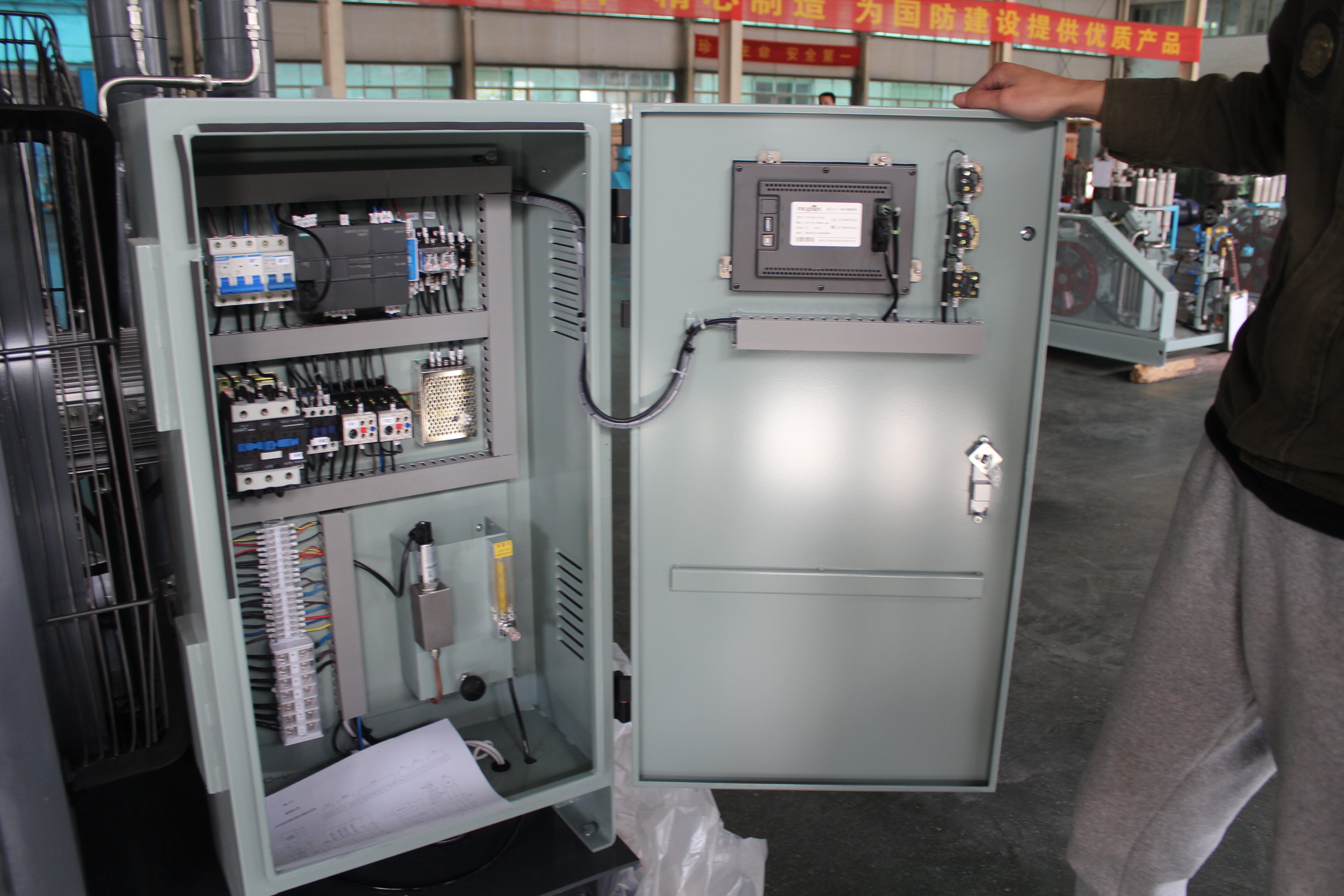

Host, motor, cooler, starting cabinet, intake muffler, safety valve, attached documents, etc

Additional notes

※ the data in this column is for the user's reference.

Delivery time

40 days after the contract is signed and the advance payment is received
