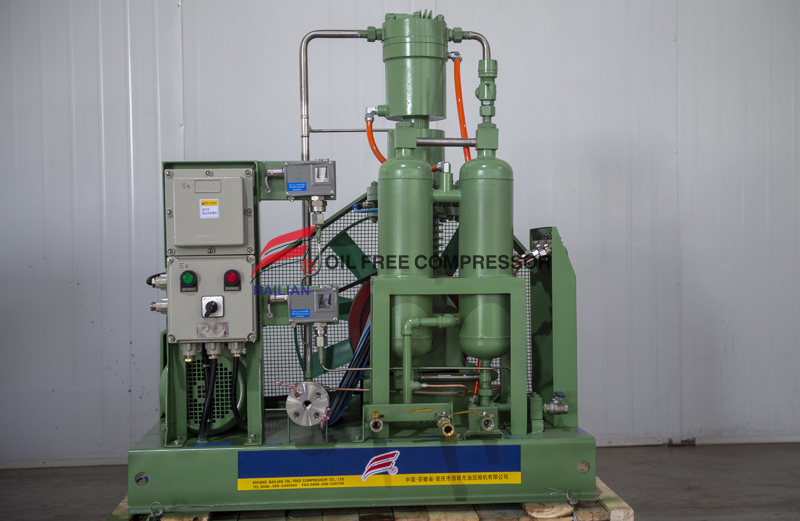

1.5NM3 20bar Low Pressure Oil Free Hydrogen Compressor

Essential for industrial hydrogenation - hydrogen compressor
cooling way:
standard:
ETD time:
packing box:
Availability:
Quantity:

Essential for industrial hydrogenation - hydrogen compressor


In recent years, due to the rapid development of petrochemical industry, advanced new hydrogenation process is widely used in petroleum refining industry, which requires the machinery industry to provide complete sets of hydrogenation equipment, and hydrogen compressor is one of them.


1、 Hydrogen compressor classification


According to the working principle and internal structure, the compressor can be divided into mechanical compressor and non mechanical compressor. Mechanical compressors are divided into liquid driven compressors, diaphragm compressors, linear compressors and ionic liquid compressors; Non mechanical compressors are divided into four categories: cryogenic liquid pump, metal hydride compressor, electrochemical hydrogen compressor and adsorption compressor.


Because hydrogen has the characteristics of low density and small volume energy density, the hydrogen compressor must have the characteristics of large pressure bearing, large flow, safety and good sealing. While preventing hydrogen embrittlement, it should pursue less energy loss as much as possible. At present, liquid driven compressor and diaphragm compressor are widely used in domestic hydrogenation stations.


2、 Working principle of hydrogen compressor


The structure of hydrogen compressor is complex. The more important components include cast iron cylinder, cast iron cylinder liner, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), packing, piston (including piston ring), oil scraper ring, stainless steel piston connecting rod, stainless steel air valve, etc. in addition, there are some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc. Like other reciprocating compressors, hydrogen compressors include three processes: suction, compression and exhaust. Driven by the motor, the crankshaft drives the crosshead, piston connecting rod and piston to move back and forth in the cylinder. The gas is compressed by the piston and finally discharged through the air valve.


3、 Application of hydrogen compressor


1. In the chlor alkali industry, the main function of hydrogen compressor is to cool and purify the high-temperature wet hydrogen from the electrolysis process, pressurize the transmission, maintain the stable pressure of the hydrogen system, and ensure the safe and stable operation of the electrolytic cell.


2. At present, the huge environmental pressure and the gradual depletion of fossil fuels and traditional energy make countries all over the world actively seek new clean energy. Hydrogen energy and hydrogen fuel cell have attracted more and more attention all over the world because of their good environmental protection performance, high energy conversion efficiency and certain economy. In order to promote the development of hydrogen energy, the improvement of hydrogen energy infrastructure is essential. Hydrogen compressor is one of the three core and key monomer equipment required for the construction of hydrogenation station.

OIL FREE hydrogen COMPRESSOR

S/N

ITEMS

TECHNICAL DATA

S/N

ITEMS

TECHNICAL DATA

1

WORKING MEDIUM

Dry Hydrogen gas

1

Working medium

Dry hydrogen gas

2

Model

HV-1.5/1-20

2

model

ZWH-500/0.15-6.5D

3

Structure

Totally oil free V type

3

Structure

oil free reciprocating,Vertical type

4

Pressure stage

2 stage ,2 cylinder

4

Pressure stage

2stage; 2cylinder

5

Rated capacity (standard condition)Nm3/h

1.5(@suction pressure 1barg)

5

Rated capacity(standard)Nm3/h

500Nm3/hr (@suction 0.15barg)

6

Rate inlet MPa(G)

0.1

6

Rated inlet pressure MPa(G)

0.015

7

Rated outlet MPa(G)

2.0

7

Rated outlet pressure MPa(G)

0.65

8

Inlet temperature℃

≤40

8

Inlet temperature℃

0~35

9

Outlet temperature℃

≤130 Before cooling

9

Outlet temperature ℃

≤55

10

Transmit temperature℃

≤50 after cooling

10

Transmit gas temperature℃

≤55

11

Shaft speed r/min

280 ※

11

Shaft speed r/min

485 ※

12

Cooling way

Water cooling

12

Cooling way

Water cooling

13

lubricate

Crank shaft and connect rod

Seal grease seal

13

Lubricate way

Shaft and connect rod

grease

Cylinder

Oil free lubricate

Cylinder

Oil free lubricate


Shaft power

0.48kw


Shaft power

≤56

14

Motor power Kw

1.1KW 380V 50Hz dⅡCT4

14

Motor power Kw

75kw 380V50Hz ExdiiCT4

15

Transmit way

Belt driven

15

Transmit way

Belt driven

16

Installation way

Has simple basement

16

Installation way

Simple basement

17

Automatic control

Automatic stop whenpressure overload

17

Automatic control parts

Overload ,stop automatic

18

Dimension L*W*H mm

800X700X600

18

External dimension L×W×H mm

2800×1900×2450

19

Gas Inlet inch mm

15

19

Inlet and outlet mm

DN150/DN50

20

Gas Outlet inch mm

15

20

Weight Kg

4300

21

Water inlet and outlet mm

15

21

Voltage

380v/50hz/3phase

22

Water cooling capacity kg/h

200kgs/hr ,2-4 bar pressure ,30degree inlet ,and 38degree outlet

22

Water consumption

5000kgs/hr

23

Anti-explosive class

dⅡCT4


Water inlet outlet

DN40

24

Weight Kg

140 ※


Gas valve,cylinder sleeve

Stainless steel

25

Motor

380v 50hz 3phase


Piston ring ,filling stuff

Filled with polytetrafluoroethylene

26

Delivery time

35 DAYS


Crank and shaft and cylinder

Carbon steel

27

DOCUMENT

B/L,CI ,PL.





cylinder

Stainless steel





Gas valve

Stainless steel





Pipe and cooler

Stainless steel
