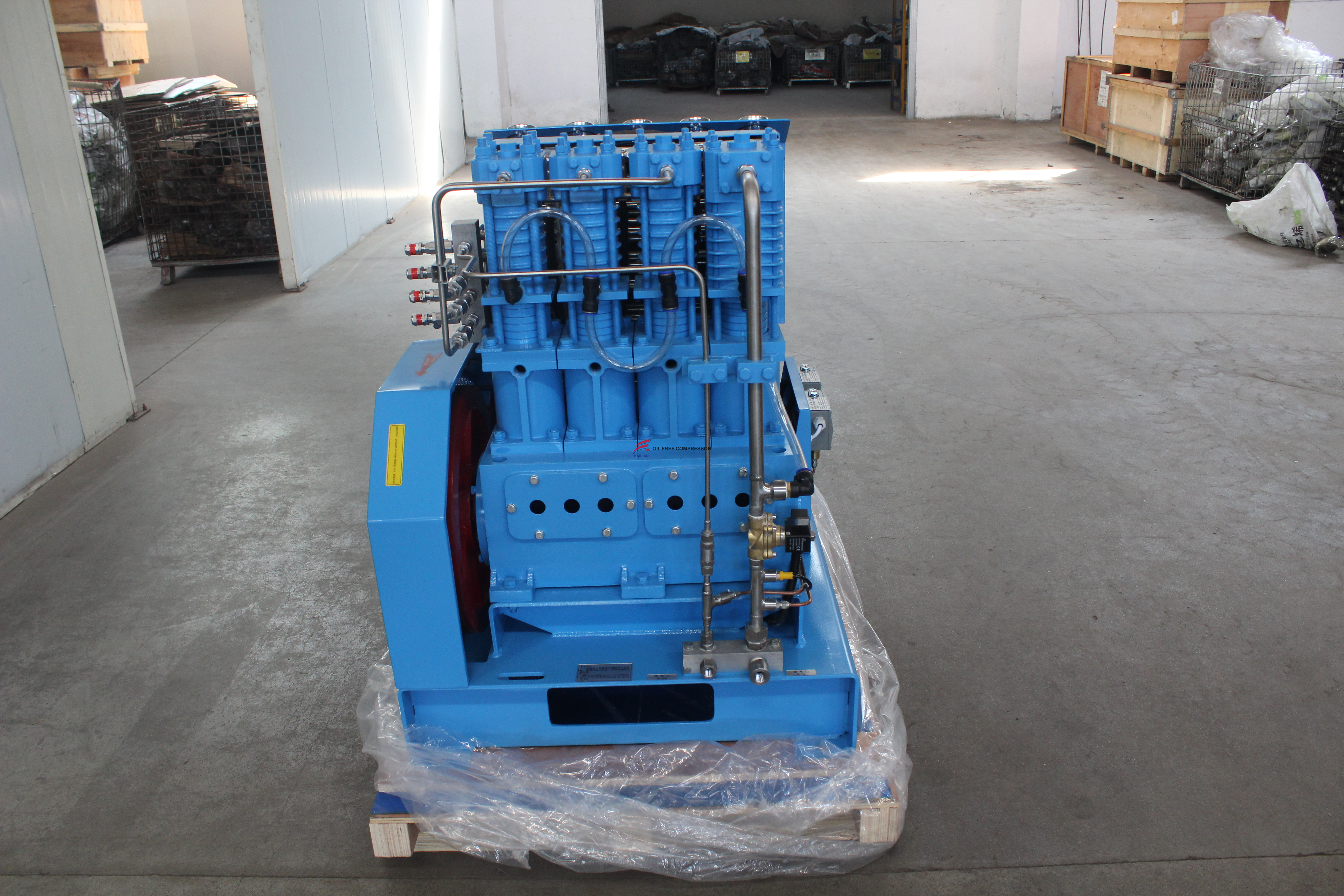

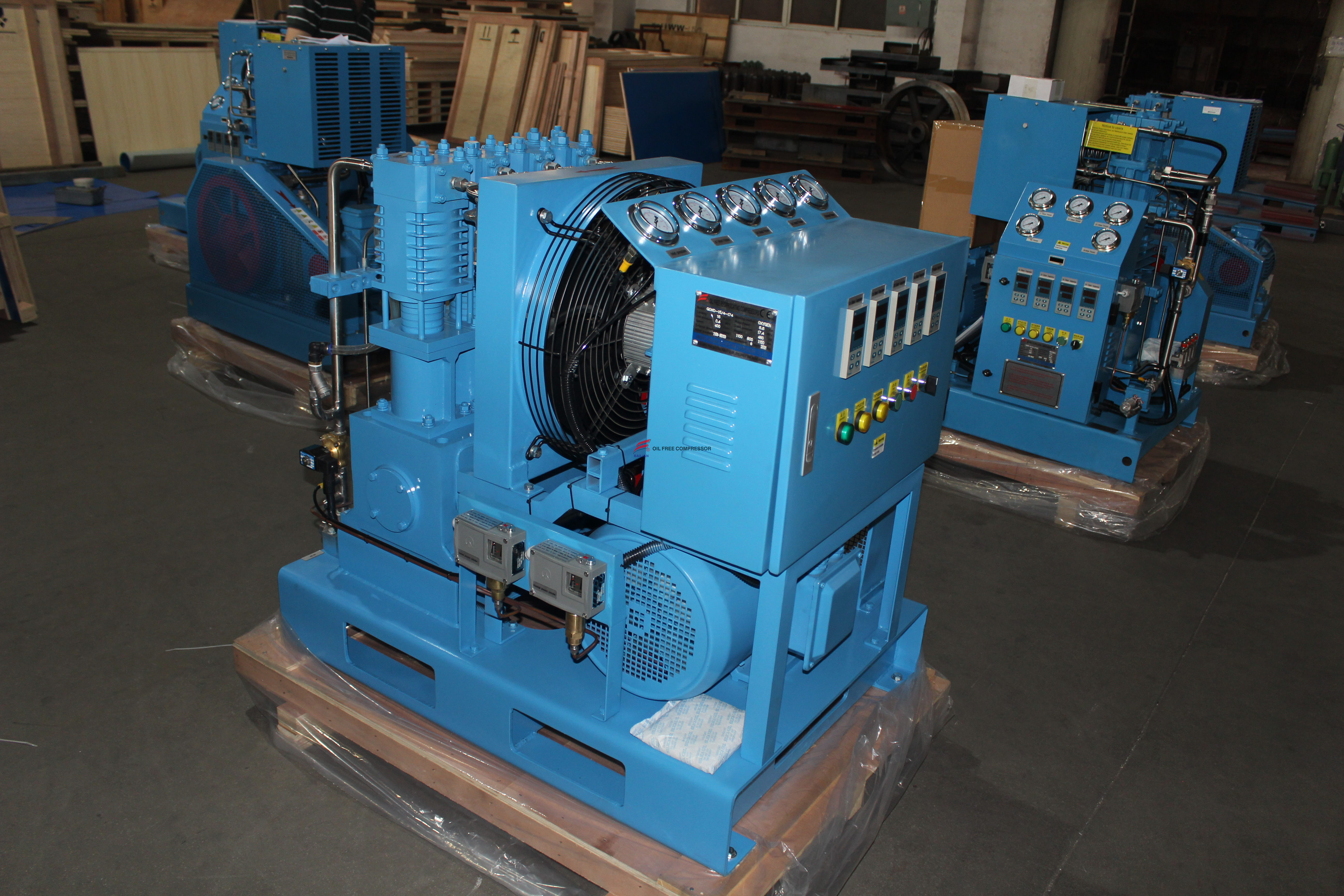

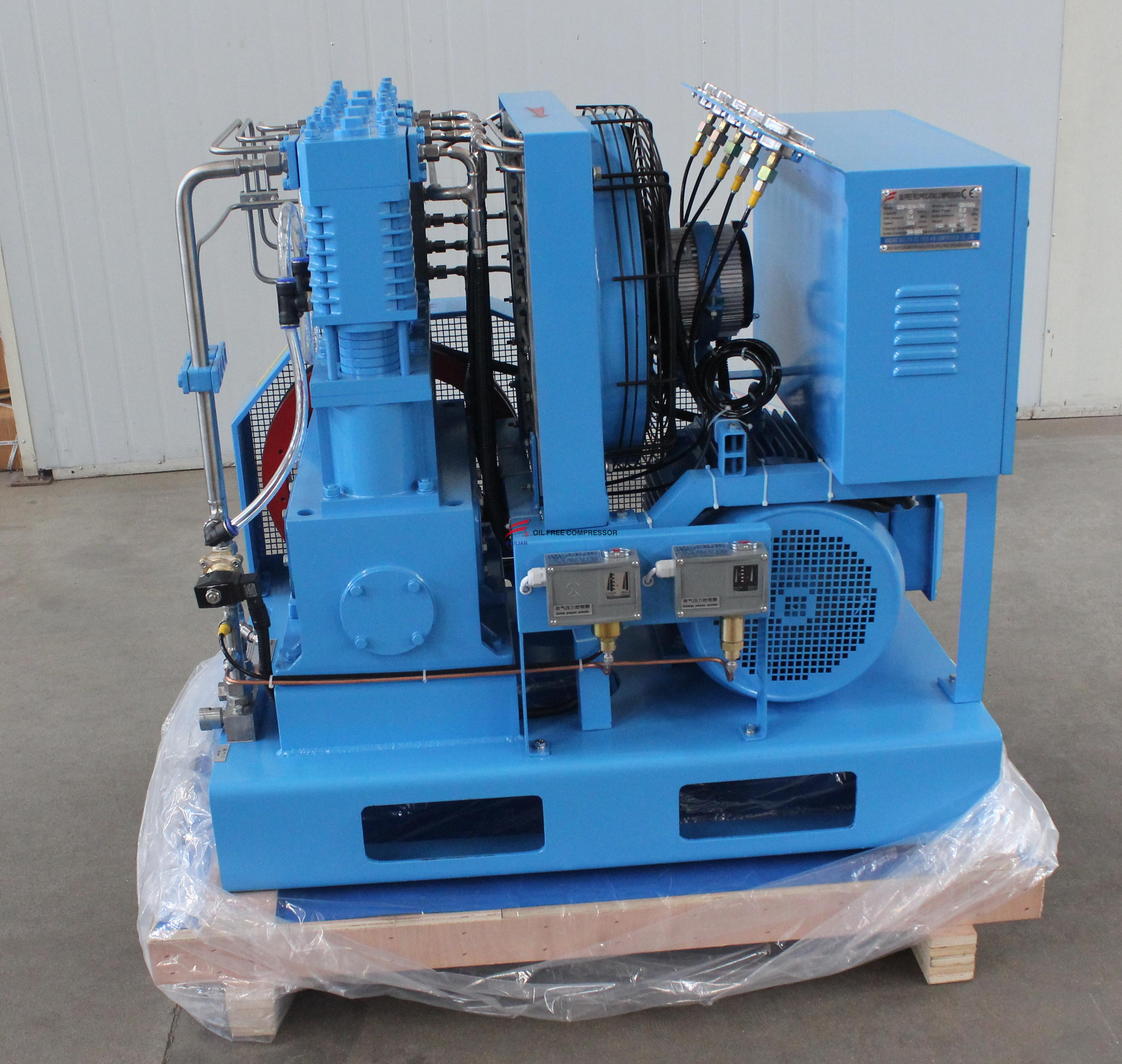

GOW-12-4-300
1. Totally oil free ,absolute no oil inside, very safety

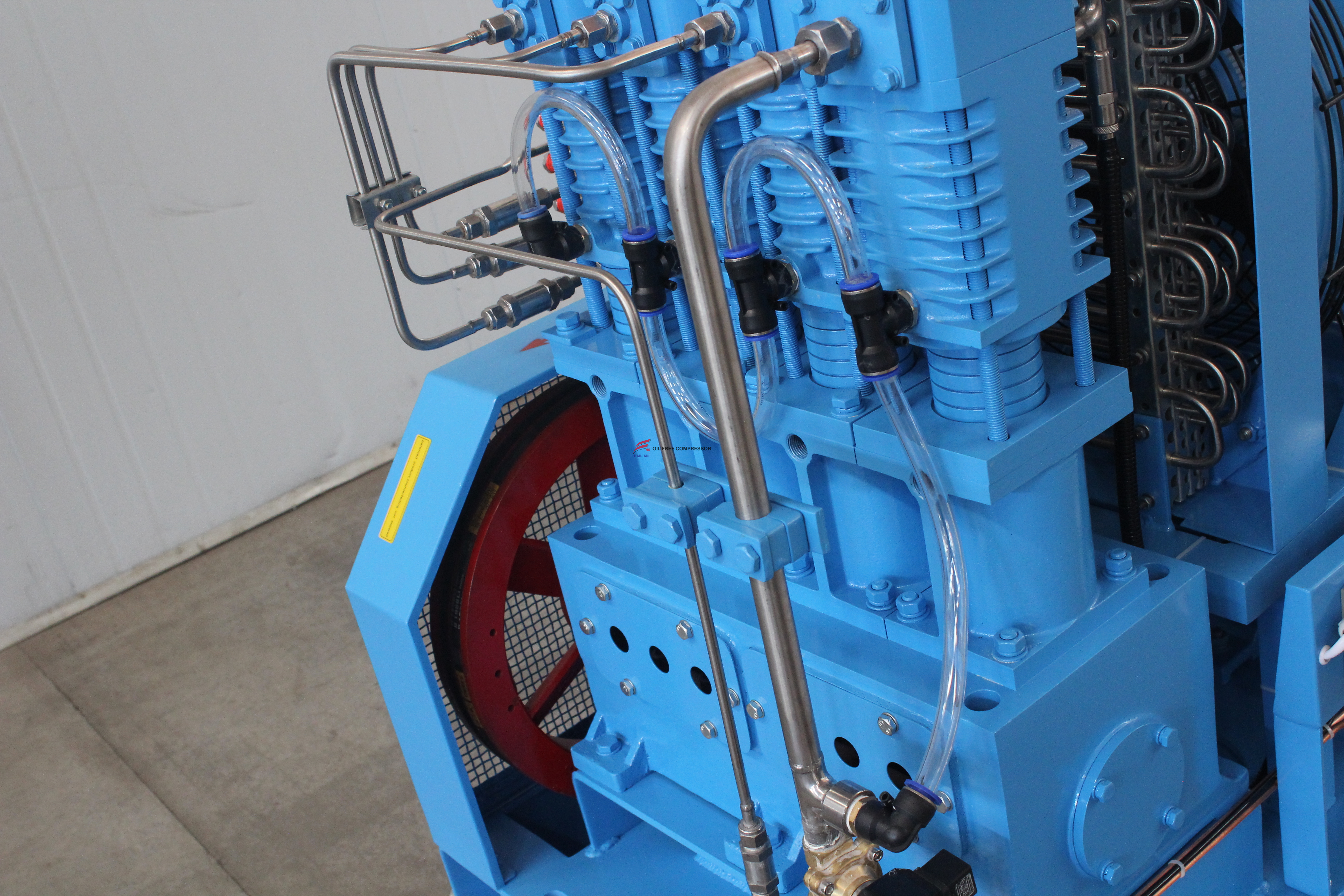

2. 4 cylinder in line design ,all cylinder vertical cylinder ,both piston left and right side same working condition,and same worn condition ,last longer maintenance time
3. Vertical cylinder and piston working condition,There is no lateral force, only acting in the vertical direction,Energy saving ,less electrical consumption for same gas work

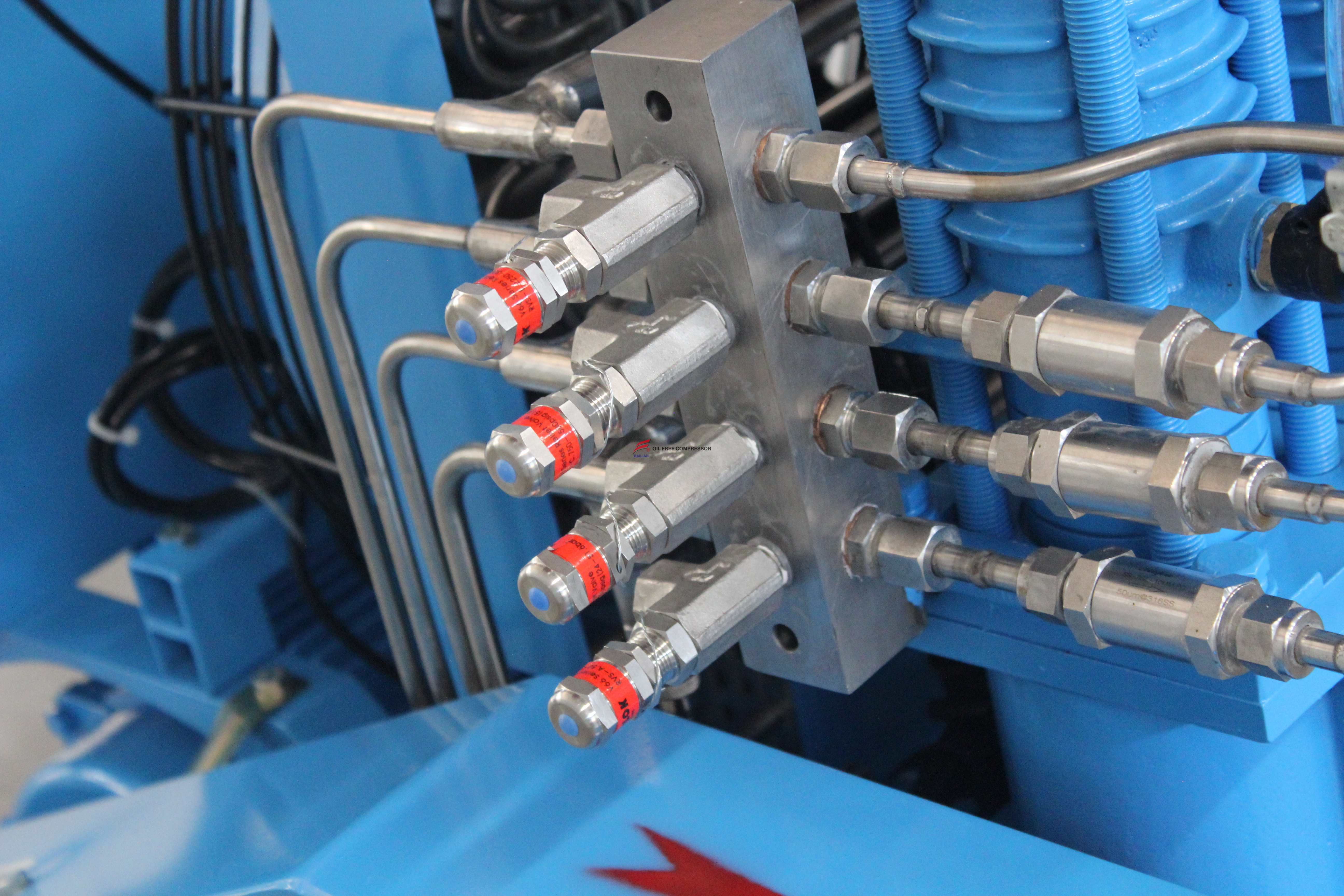

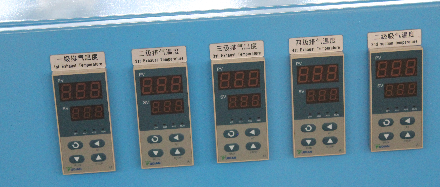

4. 4 pressure stage design ,each stage has safety valve and temperature sensor ,each stage pressure ratio 2-4 ,get balanced pressure for fronter and later cylinder, the overall cylinder has good heat dissipation and balanced stress, and all this make the compressor working heavy duty in long time
5. Patent piston and piston ring design ,including guide ring and seal ring,Self lubricating material ,no oil inside ,special Material formula
Decrease gas leakage and make compressor working in high pressure and high temperature condtion
6. Suction terminal Y type filter ,Filter molecular sieve powder in oxygen generator

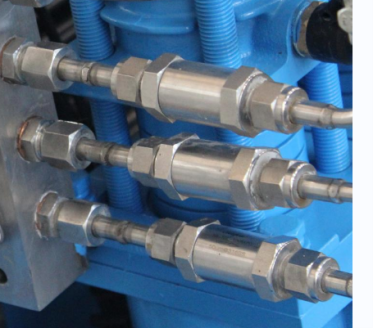

1-2-3stasge cylinder has one stainless filter ,change filter element in time and make the compressor working longer and high efficiency
OIL FREE OXYGEN COMPRESSOR
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry oxygen gas | |
2 | model | GOW-12/4-300 | |
3 | Structure | oil free reciprocating,Vertical type skid mount | |
4 | Pressure stage | 4, 4 cylinder | |
5 | Rated capacity(standard)Nm3/h | 12 | |
6 | Rated inlet pressure MPa(G) | 0.3-0.4 | |
7 | Rated outlet pressure MPa(G) | 30.0 | |
8 | Inlet temperature℃ | ≤40 | |
9 | Outlet temperature ℃ | ≤130 | |
10 | Transmit gas temperature℃ | ≤50 after cooling | |
11 | Shaft speed r/min | 200 ※ | |

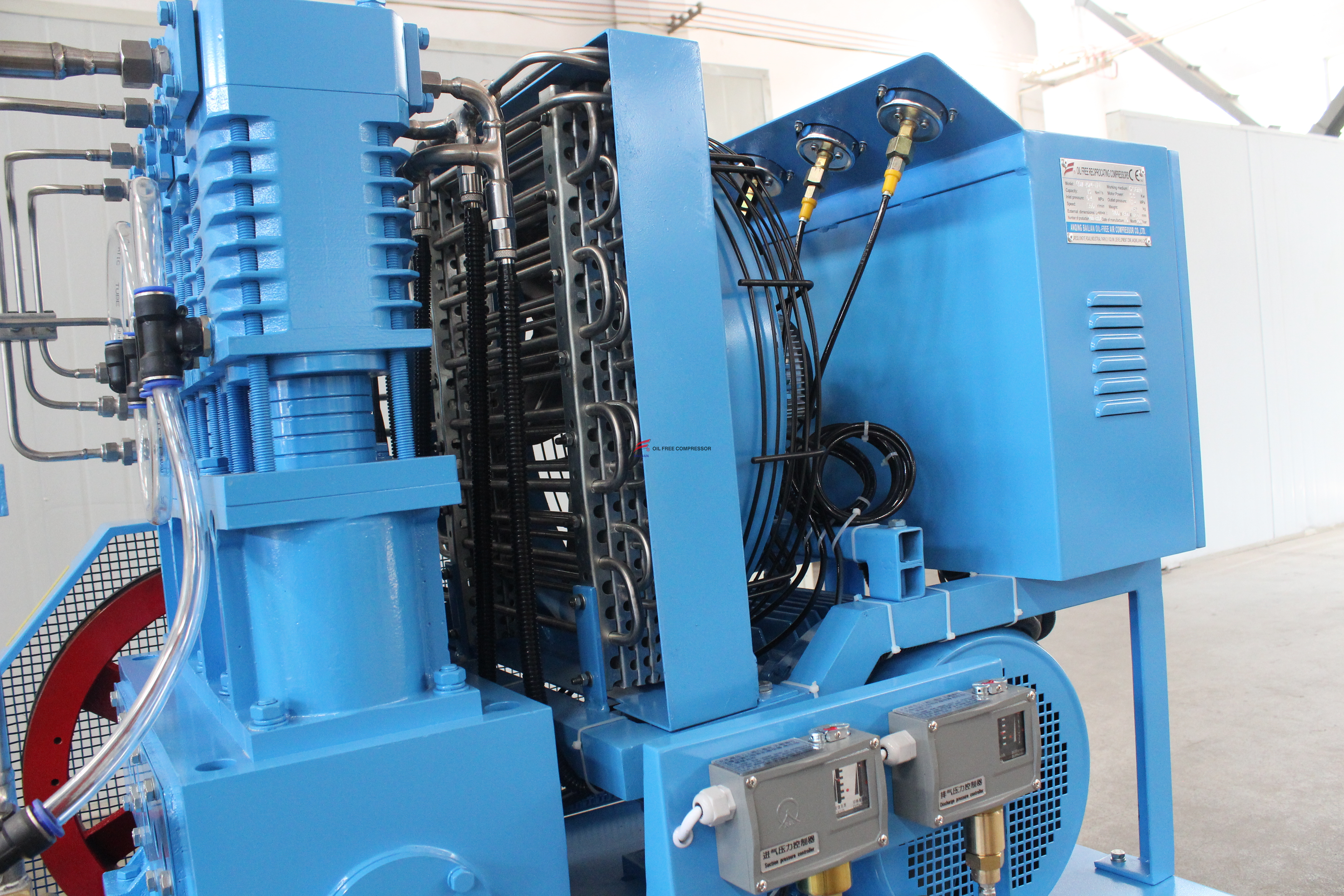

12 | Cooling way | Air cooling | |
13 | Lubricate way | Shaft and connect rod | grease |
Cylinder | Oil free lubricate | ||
14 | Motor power Kw | 5.5KW/7.5KW 380V 50HZ 3phase ※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload, stop automatic | |
18 | External dimension L×W×H mm | 1600X1000X1500 ※ | |
20 | Weight Kg | 480 ※ | |
21 | Voltage | 380v/50hz/3phase | |
