cooling way: | |
---|---|
Color: | |
packing box: | |
ETD time: | |
Certifcate: | |
Availability: | |
Quantity: | |
Gow-3/4-150
BAILIAN
8414804090
microboost oil free oxygen compressor ,3m3 150barg Oil free high pressure Oxygen compressor
An oxygen compressor is a compressor that is used to pressurize oxygen and deliver or store it.
One of the industries is used for rough oxygen cutting, which pumps 93% pure oxygen into an oxygen cylinder and cuts scrap metal with acetylene gas.
There are two uses for high pressure industrial oxygen compressor. One is that the hospital's PSA oxygen generator needs to be pressurized to supply various wards and operating rooms, providing 7-10 bar line pressure, and the other is that PSA oxygen needs to be stored to high pressure oxygen gas. In the container, it is easy to move and the storage pressure is generally 100barg, 150barg, 200barg, or higher 300barg pressure.
high pressure microboost oxygen compressor is suitable for inlet pressure 3-4barg (40-60psig) and discharge pressure 150barg (2150psig)

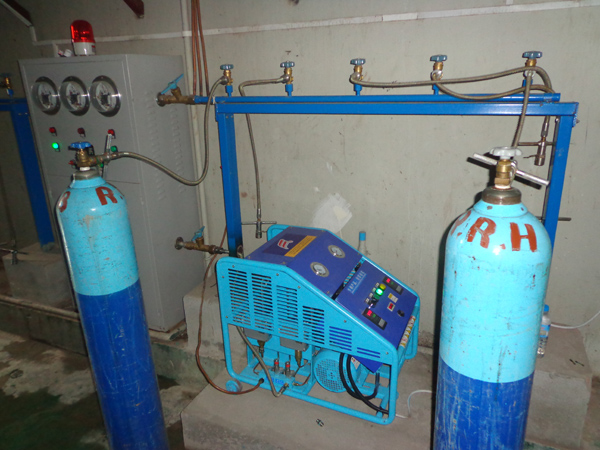

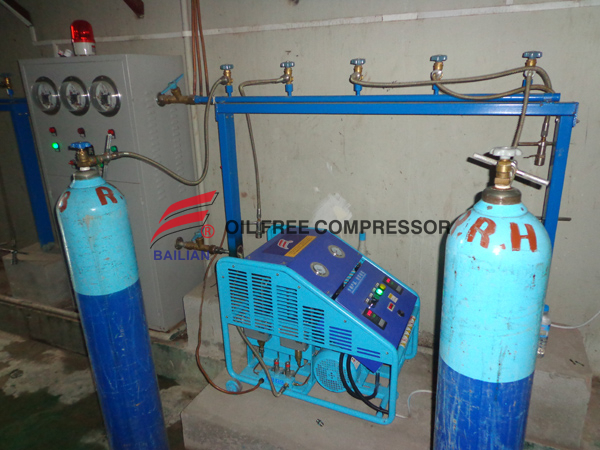

The 3NM3/hour micro PSA air separation oxygen system provides clean oxygen filling service to the community and small island hospitals. It is recommended to work no more than 8 hours per day, 2-3 bottles per bottle.
This compressor features
filling booster reciprocating oxygen compressor adopts two-stage compression, stainless steel cylinder, the inlet is equipped with low intake pressure protection, the exhaust end is equipped with high exhaust pressure protection, and the exhaust temperature is high. If the temperature exceeds overpressure, the system will alarm and stop, ensuring safe operation. Small in size, light in weight and equipped with casters, it is very suitable for mobile use.
The button function indications for each part of the compressor are as follows, designed to be the kind of Tmall style.
Compressor parameters See attachment
All standard reciprocating high pressure microboost oxygen compressor are CE marked to meet the requirements of the EU market. We can also provide customized oxygen compressors according to customer conditions.
S/N | ITEMS | PARAMETER | |
1 | WORKING MEDIUM | OXYGEN O2 | |
2 | MODEL | GOW-3/4-150 | |
3 | STRUCTURE | 100% OIL FREE RECIPROCATING COMPRESSOR | |
4 | PRESSURE STAGE | 2 | |
5 | OXYGEN CAPACITY(STANDARD CONDITION)Nm3/h | 3( @suction pressure 4bar) | |
6 | RATE INPUT MPa(G) | 0.4 | |
7 | RATED OUTPUT MPa(G) | 15.0 | |
8 | INLET TEMPERATURE℃ | ≤40 | |
9 | DISCHARGE TEMPERATURE℃ | ≤130 | |
10 | TRANSMIT TEMPERATURE℃ | ≤45 | |
11 | PUMP SPEED r/min | 400 ※ | |
12 | COOLING WAY | AIR COOLING | |
13 | LUBRICATE WAY | CRANK SHAFT、CONNECT ROD | SEAL GREASE |
CYLINDER | OIL FREE LUBRICATE | ||
14 | MOTOR POWER Kw | 3 ※ | |
15 | TRANSMIT WAY | BELT DRIVEN | |
16 | INSTALLATION WAY | HAS BASEMENT | |
17 | Automatic control items | Pressure over loading | |
18 | Dimension L×W×H mm | 700×650×650 ※ | |
19 | Inlet and outlet mm | 15 | |
20 | Weight Kg | 150KGS ※ | |
21 | GW | 190KGS | |
22 | Motor | 380V 50HZ 3PHASE | |
23 | Working model | 8hours per day |
1. The above parameters are for reference only, and the technical quotation is subject to
2. More displacement, higher filling pressure, please consult us
