GHW-10/6-250
BAILIAN
8414804090

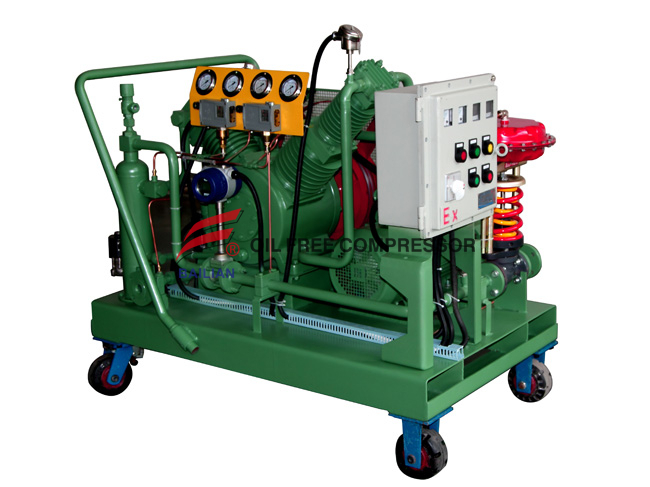

clean energy 250bar stability cng compressor refers to a device that pressurizes natural gas through a compressor to a pressure greater than 10 MPa and not greater than 25 MPa, is stored in a high pressure vessel in a gaseous state, or is used for long-distance transportation of natural gas.
The main use of 250bar cng compressor in natural gas filling stations
Gas station
The CNG refueling station includes a parent station, a standard station, and a substation. The refueling mother station generally takes gas from the high-pressure pipeline to refuel the CNG cylinder truck, and then delivers the gas to the sub-station through the CNG cylinder truck. At the same time, it has the ability to directly refuel the CNG vehicle; the standard station is generally from the city. The pressure pipe network takes the gas and refills the CNG car; the sub-station uses the CNG gas cylinder car as the air source to refuel the CNG car. The standard station takes gas from the medium-pressure pipe network. Because of its relatively large flow rate, it has a large impact on the urban medium-pressure pipe network and affects other users' gas supply. It needs to be comprehensively considered in the selection. More of the sub-master form, in the sub-station type can be divided into regular sub-station and hydraulic sub-station.
clean energy 250bar stability cng compressor is a car that uses compressed natural gas instead of conventional gasoline or diesel as a fuel for automobiles. The regions with natural gas pipelines at home and abroad are mainly developing CNG vehicles.
CNG automobile means that natural gas mainly composed of methane is stored in a cylinder similar to a fuel tank in a car at a pressure of about 25 MPa, and is used as an automobile fuel. The main process is to reduce the 0.3~0.8MPa low-pressure natural gas at the CNG bus station, and then boost it to 25MPa through the natural gas compressor. It is controlled by the sequential control panel and stored in the high, medium and low pressure sequence to the gas storage cylinder group, and then the CNG dispenser. Fill the car cylinder. The high-pressure gas of the automobile cylinder is decompressed by the decompression device, and then the gas is supplied to the engine through the gas mixture.
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | DRY CH4 | |
2 | model | GHW-10/6-250 | |
3 | Structure | Three stage,W type, skid mounted | |
4 | Pressure stage | 3 , 3 cylinder | |
5 | Rated capacity(standard)Nm3/h | 10(@inlet pressure 6bar) | |
6 | Rated inlet pressure MPa(G) | 0.6 | |
7 | Rated outlet pressure MPa(G) | 25 | |
8 | Inlet temperature℃ | ≤35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 200 ※ | |
12 | Cooling way | Water cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free lubricate | ||
14 | Motor power Kw | 4KW 380V 50Hz 3phase dⅡCT4※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1300X1000X1200 ※ | |
19 | Inlet and outlet mm | 15、M14X1.5 | |
20 | Weight Kg | 720 ※ | |
21 | Voltage | 380 50hz 3phase | |
22 | Water consumption | 500kgs/hr | |
here is high pressure industrial cng natural gas compressor technical data:1.The above parameters are for reference only, and subject to the final technical quotation
2.More displacement, higher filling pressure, please consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
