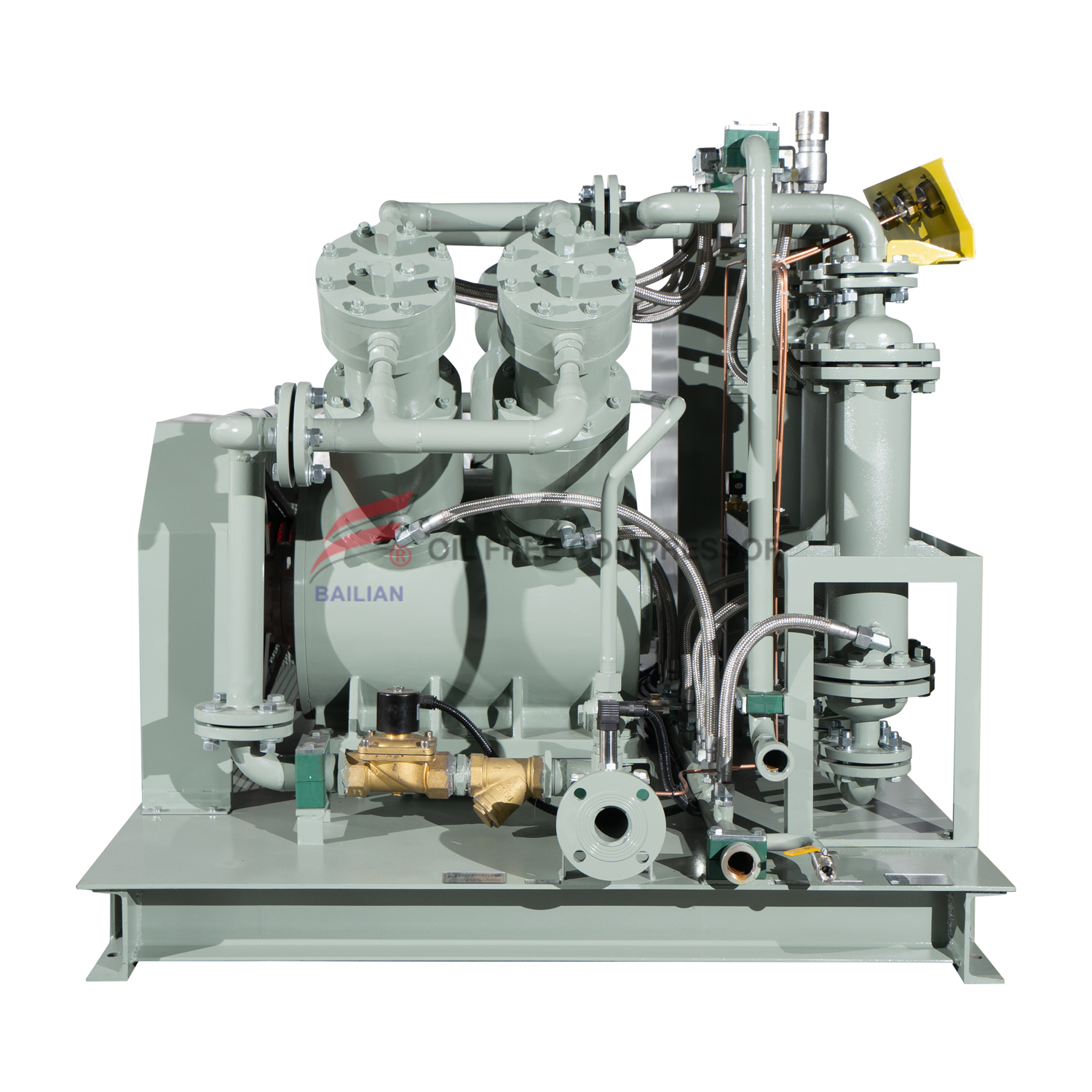

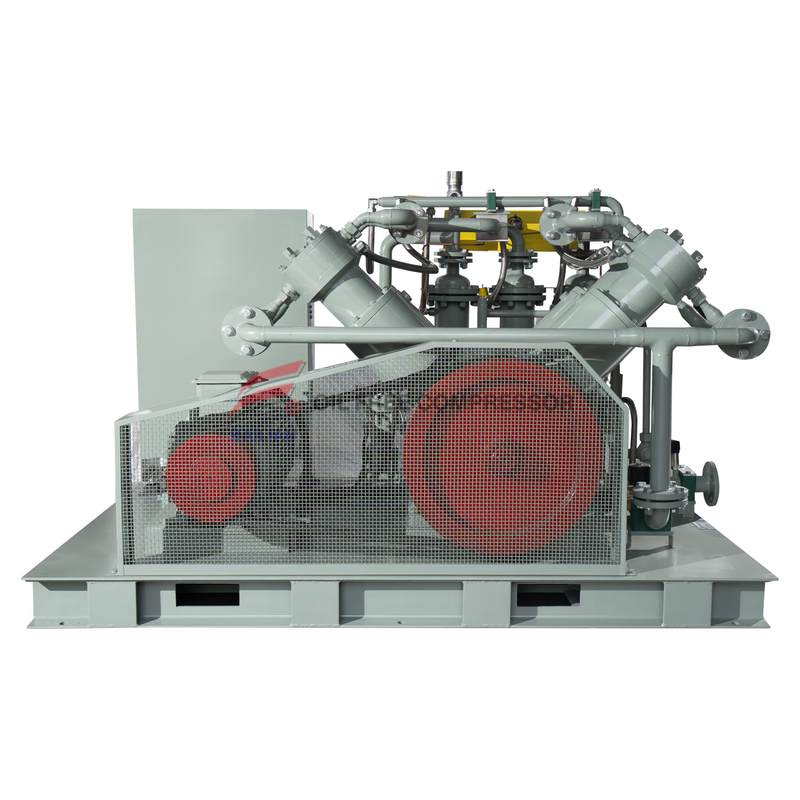

Double V-shaped Sled Mounted Type Natural Gas Compressor 2VWH-100/1.6-26

Medium

Natural gas（gas）

Quantity

1

Inlet pressure  MPa（G）

0.16

Inlet temperature       ℃

0～40

Discharge pressure    Mpa（G）

2.6

Discharge temperature（after cooling） ℃

≤55

Flow rate     Nm³/h

100（while inlet pressure=0.16MPag）

Piston stroke          mm

110

Model

2VWH-100/1.6-26

Compression stages

2

Structural style

Double V-shaped sled mounted type

Cylinder quantity

4

Shaft speed      r/min

480 ※

Voltage          V

380

Cooling mode

Water cooling

Cooling water flow        t/h

1.8

Rated Shaft power                 kw

15

Main motor speed        r/min

480 ※

Motor

18.5kw  380V50Hz ---12pole ExdIIBT4※

Dimension mm

L1800×W1350×H1450※

weight           t

2.0 ※

Drive mode

Coupling direct connection

Main component materials

Crankshaft, frame

cast iron

piston

stainless steel

Piston ring, guide ring

Filled with TPFE

Scope of supply

Host, motor, cooler, skid mounted chassis, starter cabinet, intake filter, safety valve, inlet and outlet matching flanges, random files, etc.

Additional notes

1. On site electrical explosion-proof rating: ExdIIBT4;

2. ※The column data is for user reference only, and there may be discrepancies when the machine leaves the factory.

Delivery time

60days after the contract is signed and the advance payment is received
