GHW-6/6-180
What is the future development trend of hydrogen compressor?
Some hydrogen compressors are used to increase the hydrogen pressure for heat treatment of steel, and some use working conditions to use circulating hydrogen as a raw material for industrial reactions, and the hydrogen compressor provides continuous hydrogen pressure for the reactor. In the future, hydrogen compressors will be more used in hydrogen fuel cells to pressurize hydrogen to high pressure and inject it into hydrogen vehicles to obtain clean, green, and pollution-free energy.
Serious reminder: The gas compressed by the compressor must be dry and free of particles!
TECHNICAL DATA | |||||
Medium | H2 | Quantity | 1开 备 | ||
Inlet pressure MPa（G） | 0.6 | Inlet temperature ℃ | ≤ 40 | ||
Discharge pressure Mpa（G） | 18.0 | Discharge temperature（after cooling） ℃ | ≤ 50 | ||
Flow rate Nm3/h | 6 | Piston stroke mm | 75 | ||
Model | GHW-6/6-180 | Compression stages | 3 | ||
Structural style | Completely oil-free lubrication W-type | Cylinder quantity | 3 | ||
Shaft speed r/min | 200 ※ | Voltage V | 380 | ||
Cooling mode | AIR COOLING | Cooling water flow t/h | --- | ||
Shaft power kw | ≤2.2kw | Main motor speed r/min | 730 | ||
Inlet and outlet interfaces mm | 15、M16*1.5 | Water Inlet and outlet interfaces mm | --- | ||

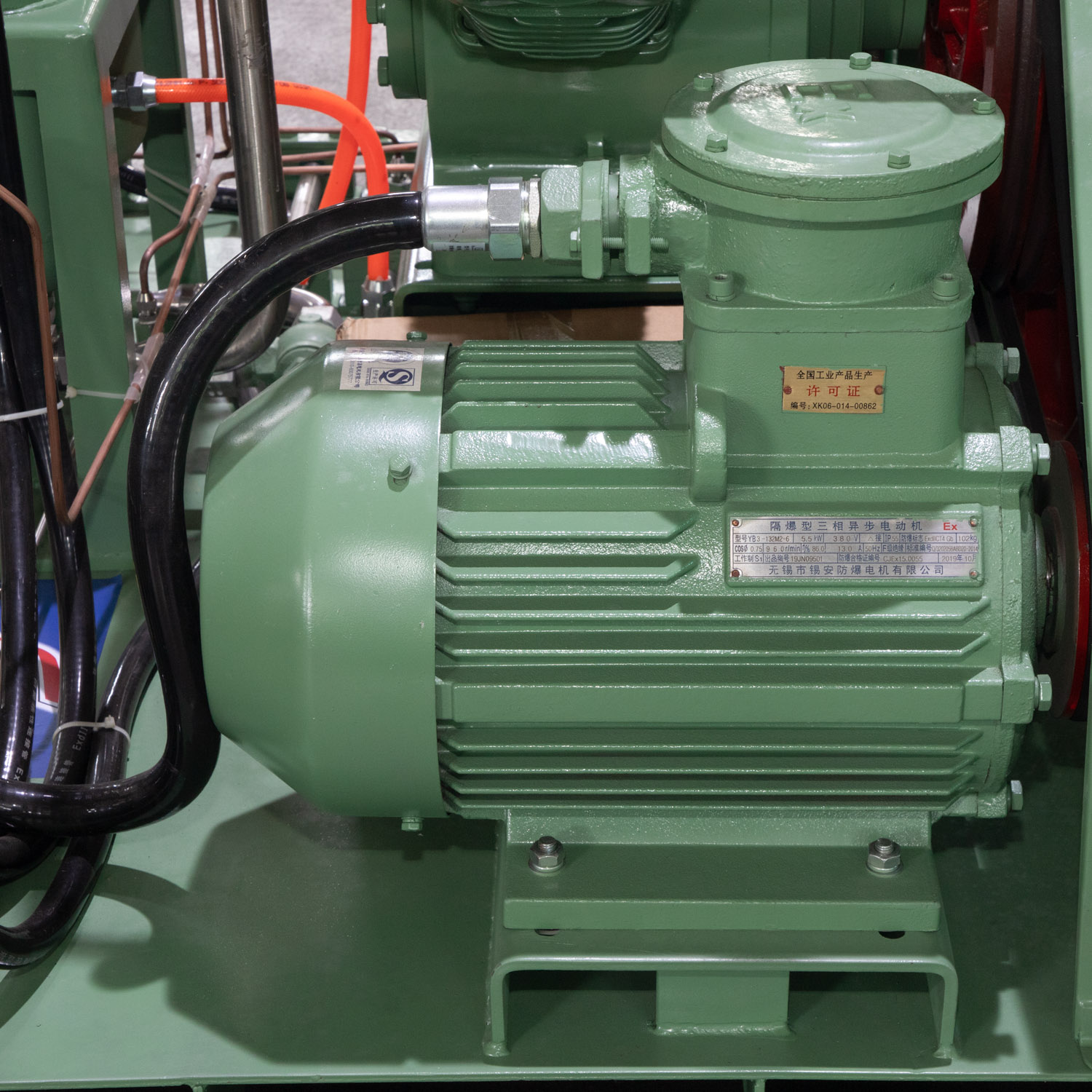

Motor | 4KW 380V 50Hz dⅡCT4 ※ | ||||
Dimension mm | 1400X1000X1200 ※ | weight T | 0.8 ※ | ||
Drive mode | Belt drive | ||||
Material of the part in contact with gas | cylinder | Stainless steel | |||
Air valve | Stainless steel | ||||
Pipeline and cooler | Stainless steel | ||||
Scope of supply | Main engine, motor, pry mounted chassis, starter cabinet, intake filter, front primary meter and control components, safety valve, random files, random spare parts, etc. (Note: The final technical agreement shall prevail). | ||||
Additional notes | Standard configuration :Electric motor (Luv-electric or Anhui xuanlida or equivalent brand)Safety valve (Zhejiang Wanneng or equivalent brand) solenoid valve（zhejiang Sanlixin）Pressure gauge (Nanjing Zhipu or equivalent brand),pressure controller/pressure transmitter (Changzhou Tianli) Electrical components (Zhengtai) Sealing method: mechanical seal. Equipped with independent explosion-proof fan for heat exchange. Reminder: Dangerous gases, users must do daily security checks! | ||||
Delivery time | 50days after the contract is signed and the advance payment is received | ||||
