GOW-1.2/1.5-150
1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.
2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.
3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy
4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.

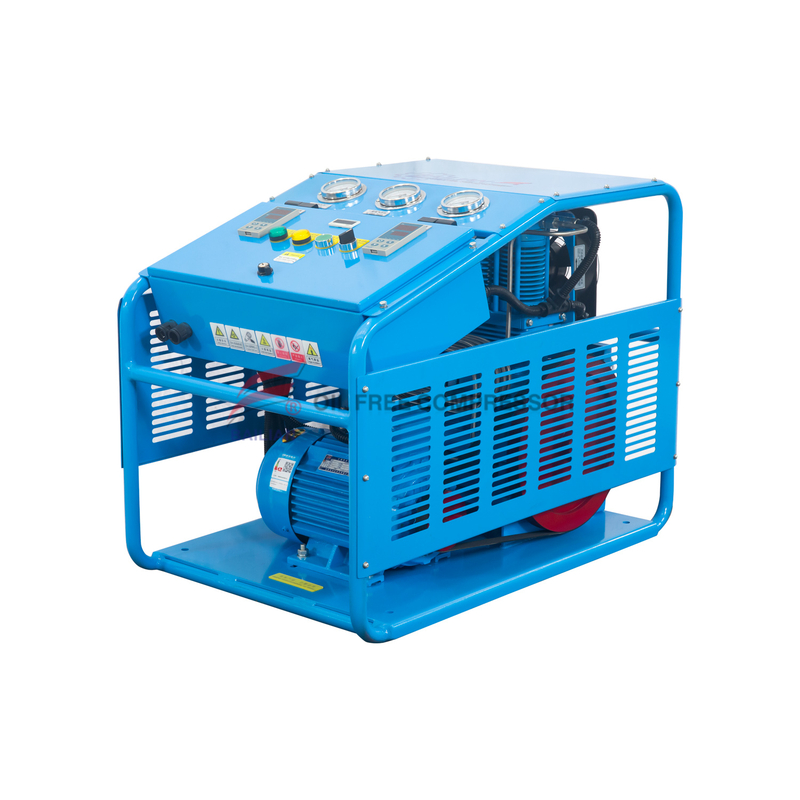

TOTALLY OIL FREE OXYGEN COMPRESSOR
TECHNICAL DATA
S/N | ITEMS | PARAMETER | |
1 | WORKING MEDIUM | OXYGEN O2 | |
2 | MODEL | GOW-1.2/1.5-150 | |
3 | STRUCTURE | 100% OIL FREE RECIPROCATING COMPRESSOR | |
4 | PRESSURE STAGE | 2 | |
5 | OXYGEN CAPACITY(STANDARD CONDITION)Nm3/h | 1.2( @suction pressure 1.5bar) | |
6 | RATE INPUT MPa(G) | 0.14-0.2 | |
7 | RATED OUTPUT MPa(G) | 15.0 | |
8 | INLET TEMPERATURE℃ | ≤40 | |
9 | DISCHARGE TEMPERATURE℃ | ≤130 before cooling | |
10 | TRANSMIT TEMPERATURE℃ | ≤50 | |
11 | PUMP SPEED r/min | 300 ※ | |
12 | COOLING WAY | AIR COOLING | |
13 | LUBRICATE WAY | CRANK SHAFT、CONNECT ROD | SEAL GREASE |
CYLINDER | OIL FREE LUBRICATE | ||
Shaft power | ≤0.53kw | ||
14 | MOTOR POWER Kw | 1.5 ※ | |
15 | TRANSMIT WAY | BELT DRIVEN | |
16 | INSTALLATION WAY | HAS BASEMENT | |
17 | Automatic control items | Pressure over loading | |
18 | Dimension L×W×H mm | 800*600X600 ※ | |
19 | Inlet and outlet mm | M4*1.5、M14X1.5 | |
20 | Weight Kg | 100KGS ※ | |
21 | GW | 130KGS | |
22 | Motor | 380V 50HZ 3PHASE | |
