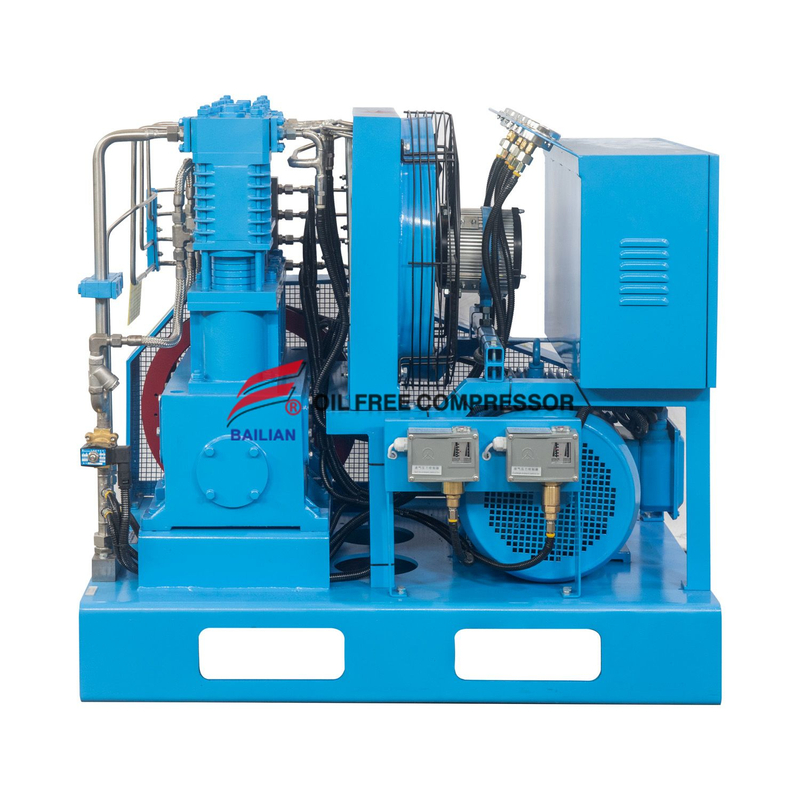

GOW-18/4-150 100%Totally Oil Free Type Oxygen Compressor

cooling way:
ETD Time:
Availability:
Quantity:
  • GOW-18/4-150

What are the advantages of oxygen compressor?

1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.

2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.

3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy

4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.

No

Description

Technical Parameters

1

Working medium

Dry oxygen gas

2

Equipment model

GOW- 18/4- 150

3

Structural style

100%TOTALLY OIL FREE    TYPE

4

Compression stage

4


Cylinder

4

5

Rated flow(standard state)Nm3/h

20

6

Rated inlet pressure MPa(G)

0.2-0.45

7

Rated outlet pressure MPa(G)

15.0

8

gas inlet temperature℃

≤35

9

Discharge temperature℃

≤130 before cooling

10

Gas supply temperature℃

≤55 after cooling

11

Rotational speed of compressor/min

190                                          ※

12

Type of cooling

Air-cooling

13

Method of lubrication

Bent  axle 、 Connecting

rod

Sealing grease lubrication

Air cylinder

Oil free lubrication

14

Power of motor :Kw

11                            ※

15

Transmission way

Belt driven

16

The type of installation

Has simple install basement

17

The automatic control

It will be  stop  by  automatic, when the exhaust pressure overrun

18

The  dimension:  Long × wide × high

mm

1500X950X1500

19

The size of gas inlet (mm)

25

20

The size of gas outlet(mm)

M16* 1.5

21

In and out of the water interface mm

Null

22

Water consumption kg/h

Null

23

Weight(Kg)

960                      ※

24

Delivery date

15days upon receive the advanced payment

25

Power supply

380V 50HZ 3PHASE

26

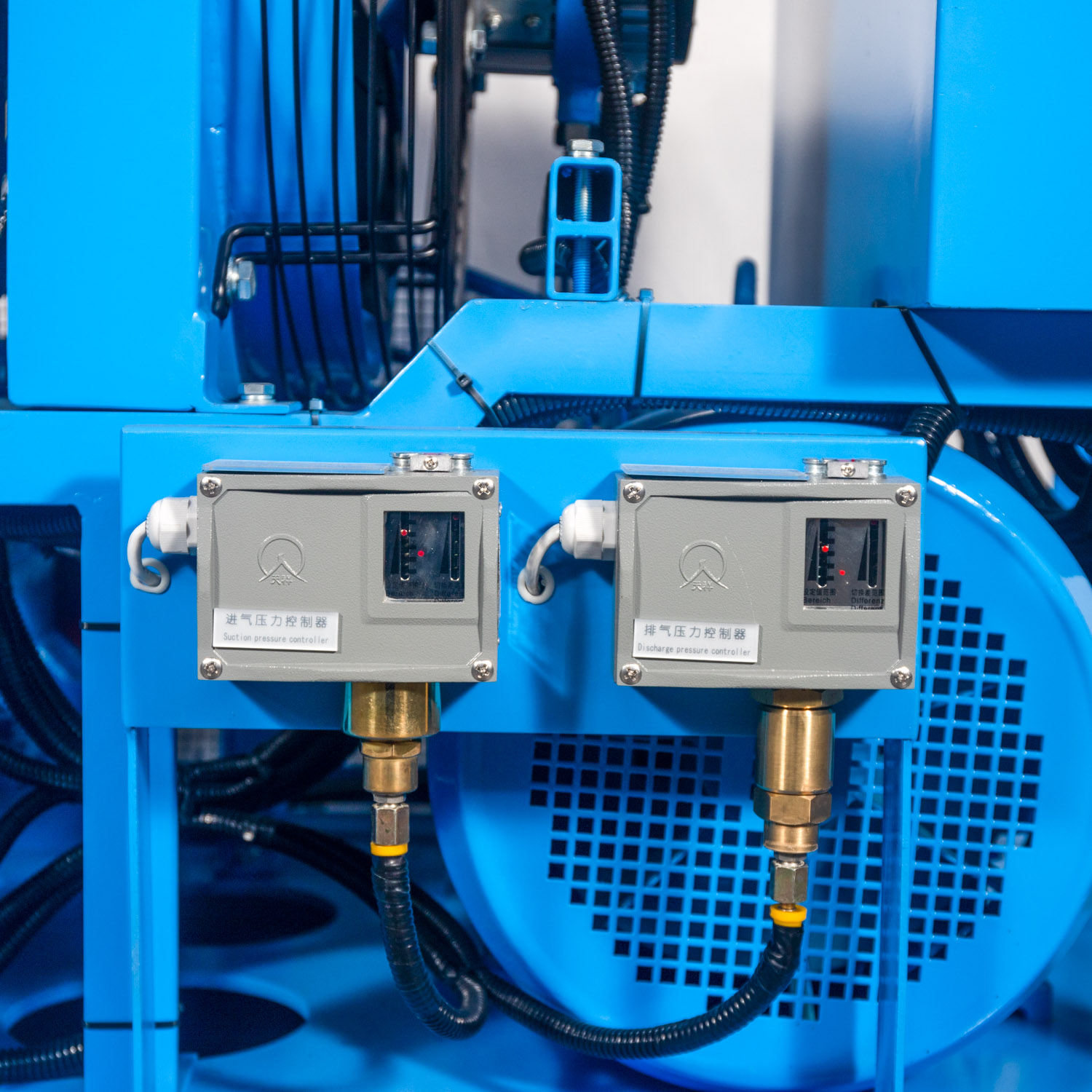

Low suction pressure

Pressure switch


High discharge pressure

Pressure switch


1-2-3-4 stage safety valve

With


1-2-3-4 temperature

With


Temperature alarming ans top

with

Supply scope  :Cooling fan, motor, armored chassis, starter cabinet, air inlet filter, front table and control elements, safety valve, compressor files, spare parts, etc.
