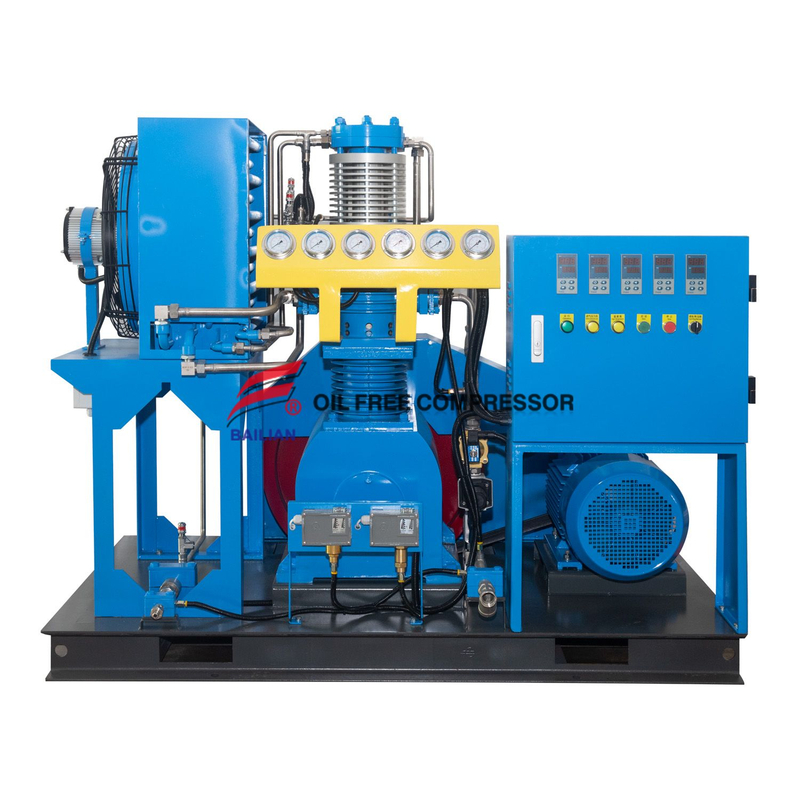

GOW-30/4-140
1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.
2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.
3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy
4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.
No | Description | Technical Parameters | |
1 | Working medium | oxygen gas | |
2 | Equipment model | GOW-30/4-140 | |
3 | Structural style | 100%TOTALLY OIL FREE TYPE | |
4 | Compression stage | 4 | |
5 | Rated flow(standard state)Nm3/h | 30(INLET 4BARG ) | |
6 | Rated inlet pressure MPa(G) | 0.2-0.45 | |
7 | Rated outlet pressure MPa(G) | 14.0 | |
8 | gas inlet temperature℃ | ≤40 | |
9 | Discharge temperature℃ | ≤130 | |
10 | Gas supply temperature℃ | ≤55 | |
11 | Rotational speed of compressor/min | 190 ※ | |
12 | Type of cooling | Air-cooling | |
13 | Method of lubrication | Bent axle、Connecting rod | Sealing grease lubrication |
Air cylinder | Oil free lubrication | ||
14 | Power of motor :Kw | 11 ※ | |
15 | Transmission way | Belt driven | |
16 | The type of installation | Has simple install basement | |
17 | The automatic control | It will be stop by automatic, when the exhaust pressure overrun | |
18 | The dimension: Long×wide×high mm | 1600X950X1500 ※ | |
19 | The size of gas inlet (mm) | 25 | |
20 | The size of gas outlet(mm) | M16*1.5 | |
21 | In and out of the water interface mm | Null | |
22 | Water consumption kg/h | Null | |
23 | Weight(Kg) | 960 ※ | |
24 | Delivery date | 15days upon receive the advanced payment | |
25 | Power supply | 380V 50hz 3PHASE | |
1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.
2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.
3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy
4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.
