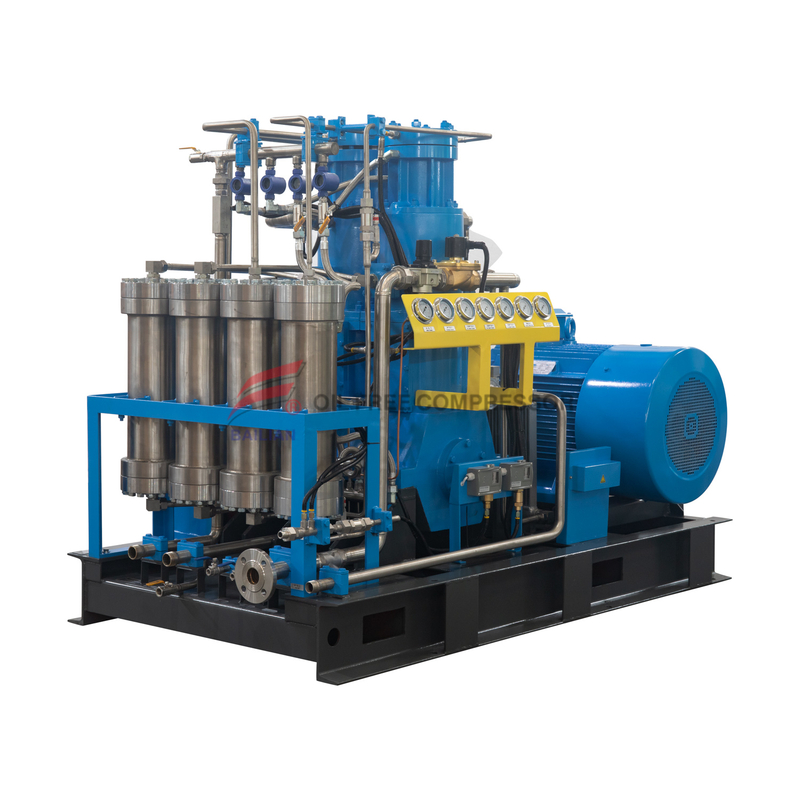

GZOW-300/5-165
Medium | O2 | Quantity | 1 | ||
Inlet pressure MPa（G） | 0.5 | Inlet temperature ℃ | 0～35 | ||
Discharge pressure Mpa（G） | 16.5 | Discharge temperature（after cooling） ℃ | ≤55 | ||
Flow rate Nm3/h | 300(While inlet pressure=0.5MPa） | Piston stroke mm | 140 | ||
Model | GZOW-300/5-165 | Compression stages | 4 | ||
Structural style | Reciprocating piston vertical sled mounted type | Cylinder quantity | 4 | ||
Shaft speed r/min | 330 ※ | Voltage V | 380V50Hz | ||
Cooling mode | Water cooling | Cooling water flow t/h | 6.0 | ||
Shaft power kw | 55 | Main motor speed r/min | 960 ※ | ||
Motor | 75kw 380V 50Hz ※ | ||||
Dimensions mmXmmXmm | L2650×W1950×H2450 ※ | weight t | 4.8 ※ | ||
interface size mm | Inlet DN50/discharge DN20/cooling water DN40 | ||||
Drive mode | Belt drive | ||||
Main component materials | frame and slide | cast iron | |||
Piston rings, packing | Filled with PTFE | ||||
Air valve and cylinder liner | Stainless steel | ||||
Scope of supply | Main engine, motor, cooler, oil pump, skid mounted chassis, starter cabinet, intake filter, primary instrument and control components, safety valve, special tools, inlet and outlet matching flanges, random documents, etc. | ||||
Additional notes | 1. Overflow components: oil and grease prohibited. 2. Lubricating oil to be provided by the user (oxygen resistant lubricating oil,~30L). 3. Users need to provide external circulating cooling water. 4. The column data ※is for user reference, and there may be discrepancies when the machine leaves the factory。 | ||||
Delivery time | 90 days after the contract is signed and the advance payment is received | ||||
The above parameters are quoted as standard for our company. If there are special requirements, we will discuss them separately.
1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.
2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.
3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy
4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.
