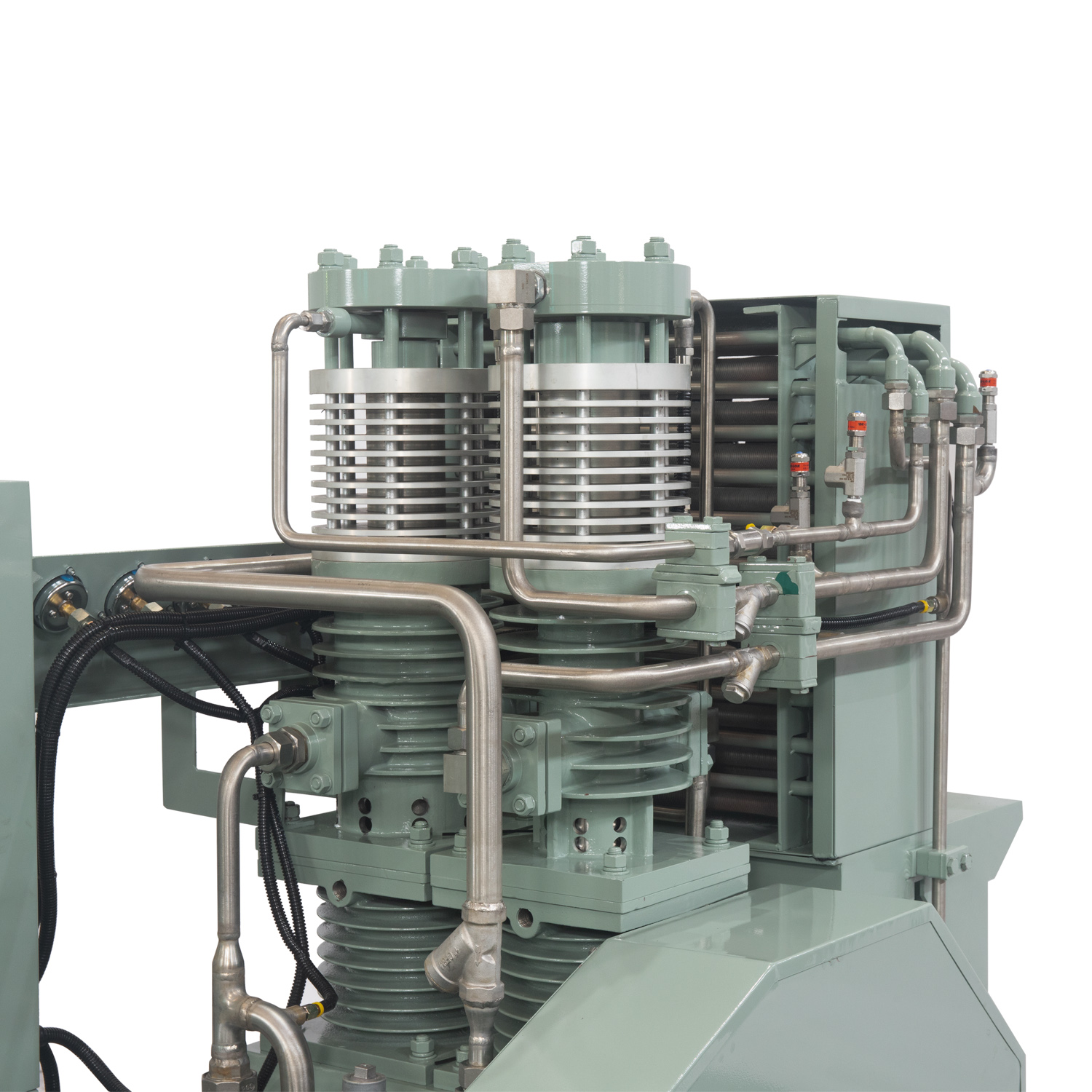

GZW-15/7-250 Totally Oil-free Vertical Air Compressor

Medium

Air

Quantity

1开 备

Inlet pressure  MPa（G）

0.7

Inlet temperature        ℃

≤ 40

Discharge pressure    Mpa（G）

 25.0

Discharge temperature（after cooling） ℃

≤ 45

Flow rate        Nm³/h

15

Piston stroke          mm

90

Model

GZW-15/7-250

Compression stages

4

Structural style

Totally oil-free vertical

Cylinder quantity

4

Shaft speed      r/min

   170  ※

Voltage               V

380

Cooling mode

Air cooling

Cooling water flow        t/h

---

Shaft power           kw

≤5.0kw

Main motor speed        r/min

730

Gas inlet and outlet interfaces     mm

25、M16X1.5

Inlet and outlet interfaces       mm

---

Motor

7.5KW   380V 50Hz  ※

Dimensions   mmXmmXmm

1400X950X1250 ※

Weight        T

   0.88  ※

Drive mode

Belt drive

Material of parts contacting with gas

Cylinder

carbon steel

Valve

stainless steel

Pipeline

stainless steel

Scope of supply

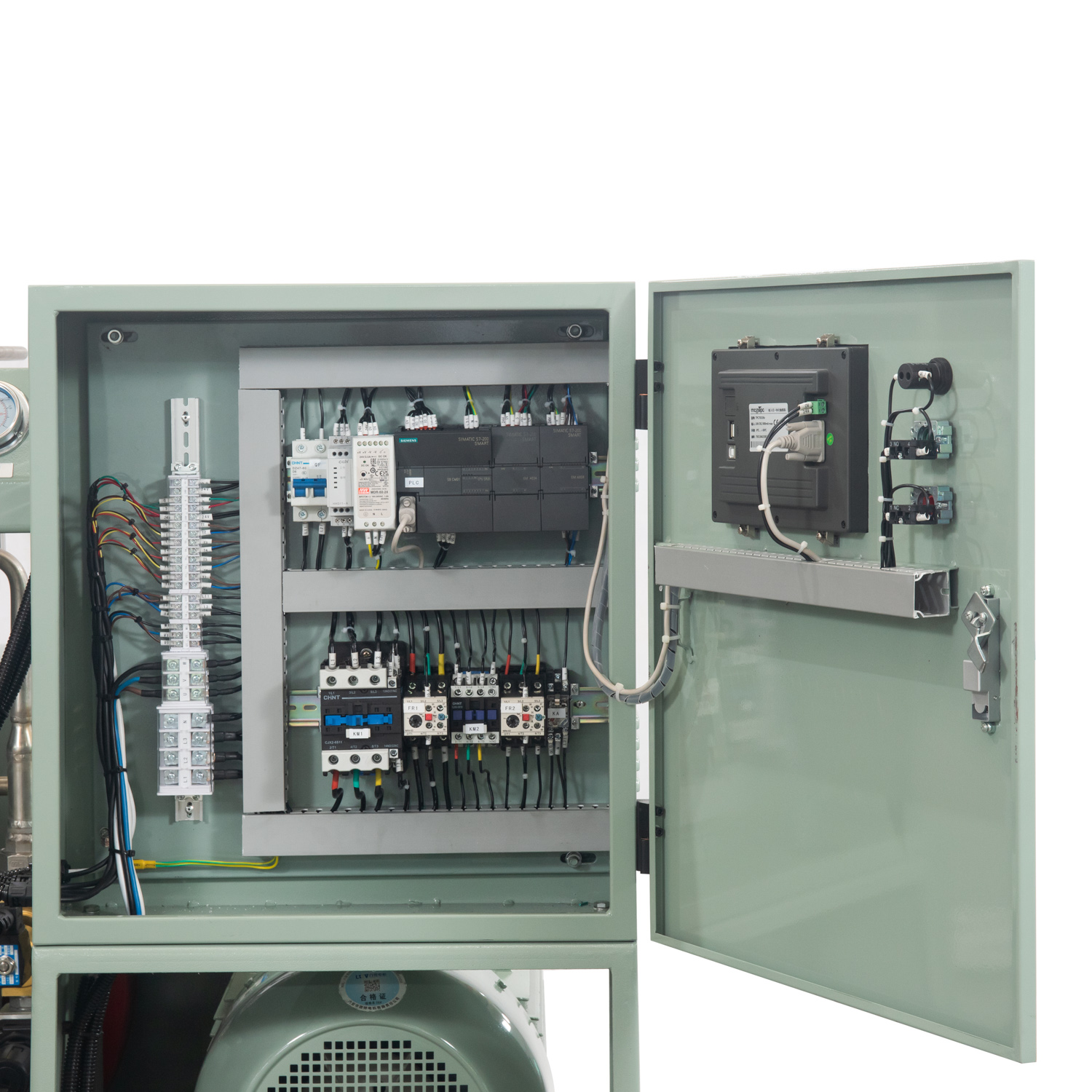

Main machine, motor, skid mounted chassis, starting cabinet, air inlet filter, primary meter and control element before the machine, safety valve, accompanying documents, accompanying spare parts, etc.

(Note: the final technical agreement shall prevail).

Additional notes

Sealing method: packing seal

Delivery time

50 days after the contract is signed and the advance payment is received
