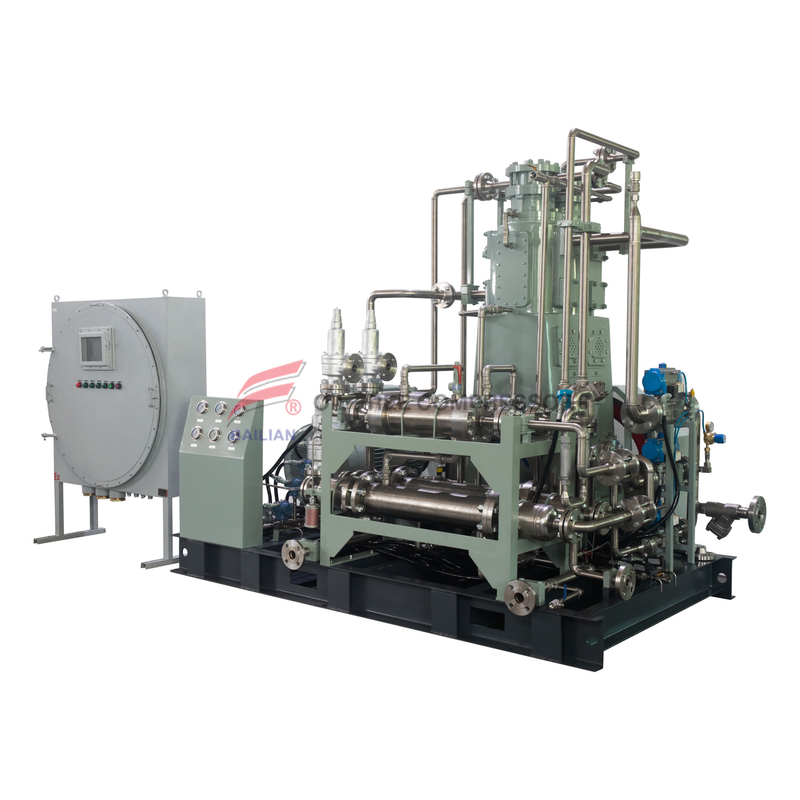

GZWY-480/4-400
BAILIAN
TECHNICAL DATA | |||||
Medium | N2 | Quantity | 1 | ||
Inlet pressure MPa（G） | 0.4 | Inlet temperature ℃ | 0～35 | ||
Discharge pressure Mpa（G） | 40.0 | Discharge temperature（after cooling） ℃ | ≤55 | ||
Flow rate Nm3/h | 480（while inlet pressure=0.4MPa） | Piston stroke mm | 180 | ||
Model | GZWY-480/4-400 | Compression stages | 4 | ||
Structural style | Reciprocating piston vertical sled mounted type | Cylinder quantity | 4 | ||
Shaft speed r/min | 330 ※ | Voltage V | 380V50Hz | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | 120 | Main motor speed r/min | 330 ※ | ||
Motor | 132kw 380V 50Hz SF1.15 Efficient permanent magnet motor ※ | ||||
Dimension mm | L3600×W2200×H2580 ※ | weight t | 7.5 ※ | ||
interface size mm | Inlet DN65/discharge DN20 | ||||
Drive mode | coupling | ||||
Main component material | frame and slide | cast iron | |||
Piston rings, packing | Filled with PTFE | ||||
Air valve and cylinder liner | Stainless steel | ||||
Scope of supply | Main engine, motor, cooler, oil pump, skid mounted chassis, starter cabinet, intake filter, primary instrument and control components, safety valve, special tools, inlet and outlet matching flanges, random documents, etc. | ||||
Additional notes | 1. Lubricating oil to be provided by the user (use low-temperature lubricating oil when the ambient temperature is below 5 ℃); 2. The column data※ is for user reference, and there may be discrepancies when the machine leaves the factory. Standard configuration :Motor（Luv-electric or Anhui xuanlida ） safety valve（zhejiang Wanneng ) solenoid valve（zhejiang Sanlixin） pressure gage（nanjing Zhipu or Equivalent brand） Pressure controller/pressure transmitter（changzhou Tianli）Electrical components（Zhengtai） thermal resistance（shanghai Gekun） PLC（Siemens） Touch screen（Kunluntongtai） | ||||
Delivery time | 100days after the contract is signed and the advance payment is received | ||||
