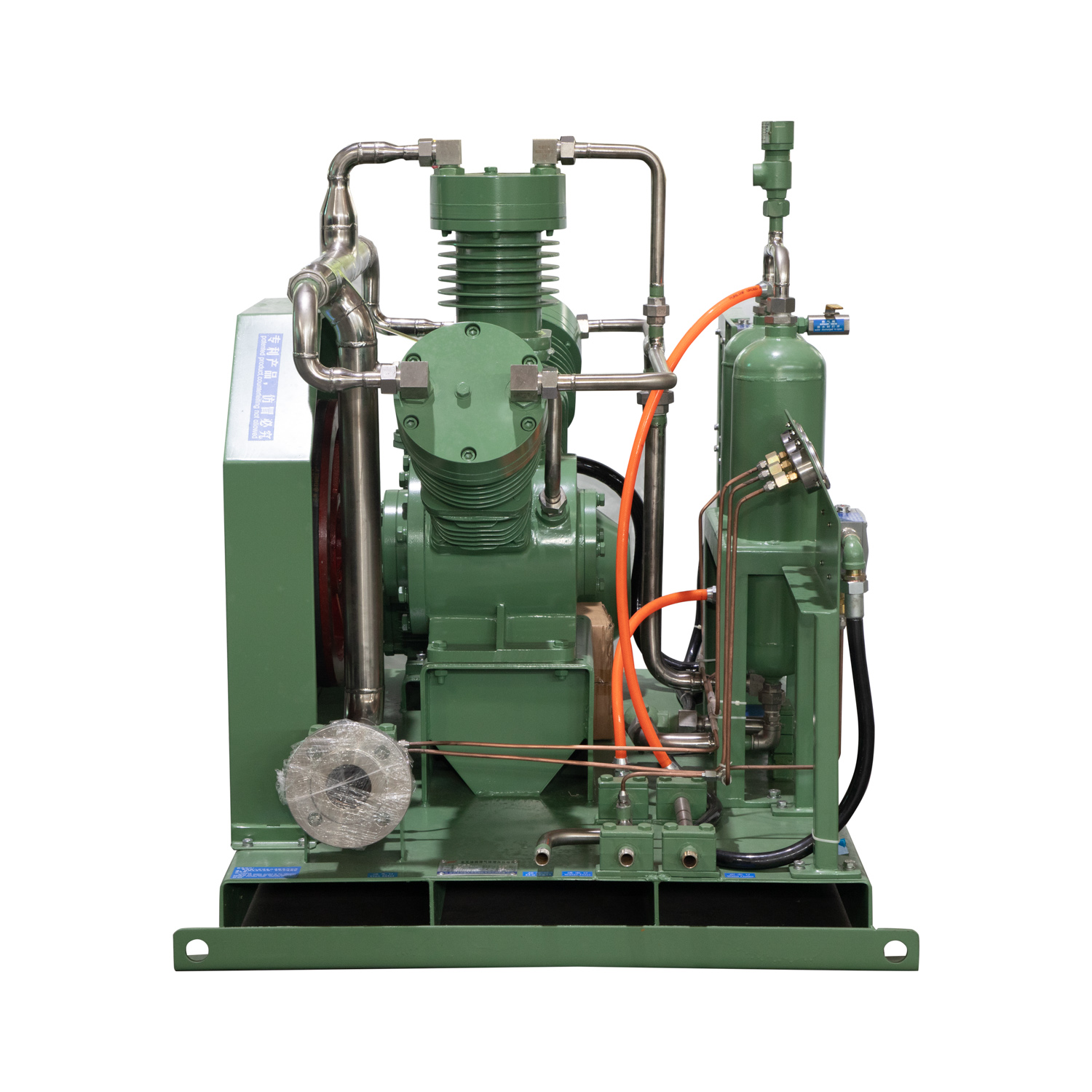

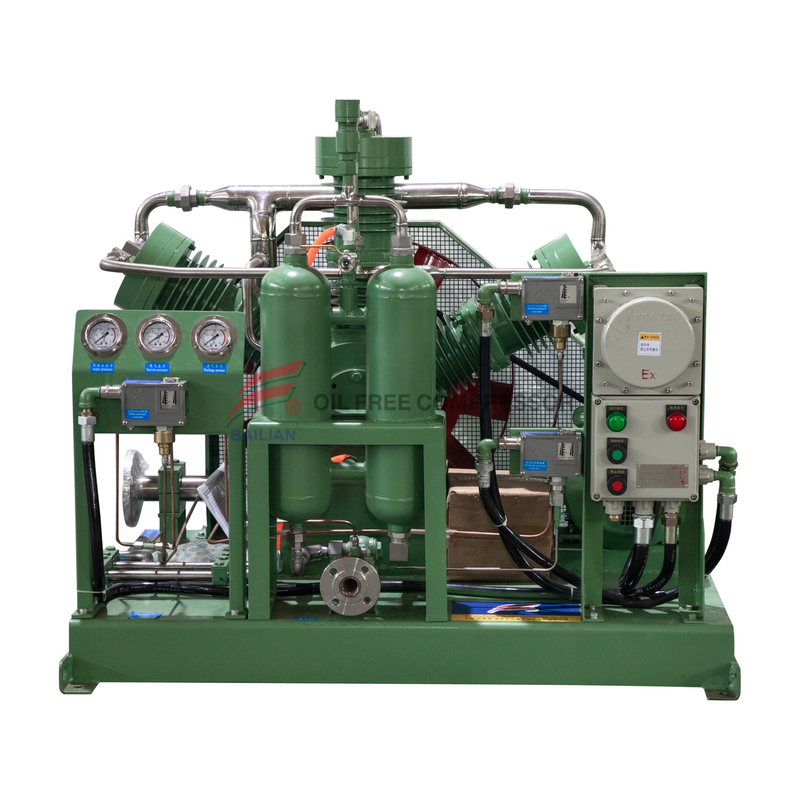

HW-35/1-10
Medium | H2 | Quantity | 1 | ||
Inlet pressure MPa（G） | 0.1 | Inlet temperature ℃ | -10～30 | ||
Discharge pressure Mpa（G） | 1.0 | Discharge temperature（after cooling） ℃ | ≤55 | ||
Flow rate Nm3/h | 35（While inlet pressure=0.1MPa） | Piston stroke mm | 75 | ||
Model | HW-35/1-10 | Compression stages | 2 | ||
Structural style | W-shaped sled mounted | Cylinder quantity | 3 | ||
Shaft speed r/min | 440 ※ | Voltage V | 380 | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | ≤6 | Main motor speed r/min | 1460 | ||

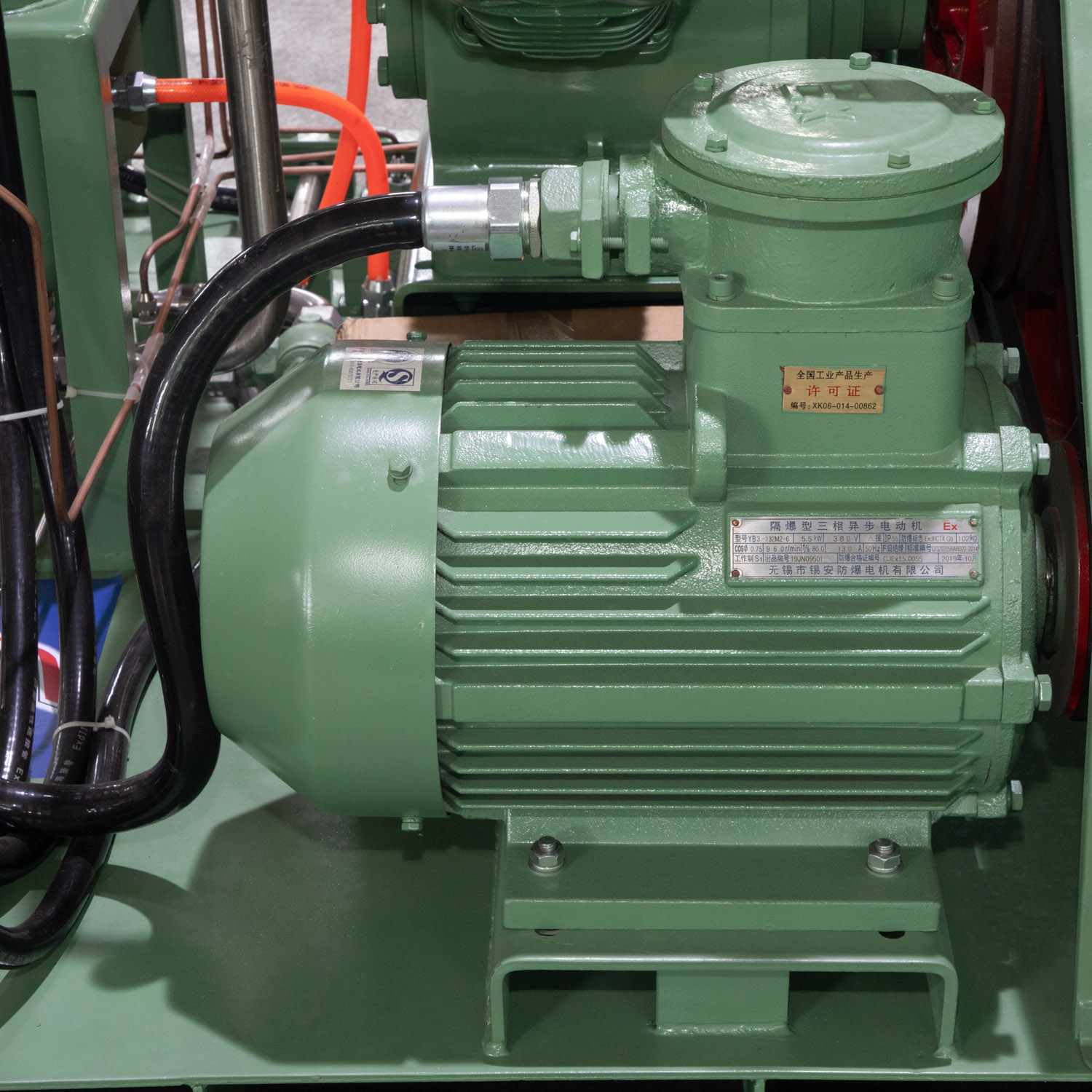

Motor | 7.5kw 380V 50Hz3Ph dIICT4 explosion-proof ※ | ||||
Dimension mm | 1250×800×1250 ※ | weight kg | 480 ※ | ||
Air intake and exhaust interface | DN25 / DN15 | Water pipe interface | --- | ||
Drive mode | Belt drive (anti-static belt) | ||||
Materials in contact with gas | cylinder | cast iron | |||
piston | aluminum alloy | ||||
Pistons and guide rings | Filled with PTFE | ||||
Scope of supply | Main engine, motor, cooler, safety valve, random documents, etc. | ||||
Additional notes | 1、The column data ※is for user reference, and there may be discrepancies when the machine leaves the factory. 2. Mechanical seal type. 3. On site electrical explosion-proof level: dIICT4Standard configuration：Motor（Shanghai Shangli Explosion proof Motoror Equivalent brand ） safety valve（zhejiang Wanneng） solenoid valve（zhejiang Sanlixin）pressure gage（nanjing Zhipu） Pressure controller/pressure transmitter（changzhou Tianli） Electrical components（Zhengtai） | ||||
Delivery time | 40days after the contract is signed and the advance payment is received | ||||
What is the future development trend of hydrogen compressor?
Some hydrogen compressors are used to increase the hydrogen pressure for heat treatment of steel, and some use working conditions to use circulating hydrogen as a raw material for industrial reactions, and the hydrogen compressor provides continuous hydrogen pressure for the reactor. In the future, hydrogen compressors will be more used in hydrogen fuel cells to pressurize hydrogen to high pressure and inject it into hydrogen vehicles to obtain clean, green, and pollution-free energy.
