SFV-12/1-50
BAILIAN
8414804090

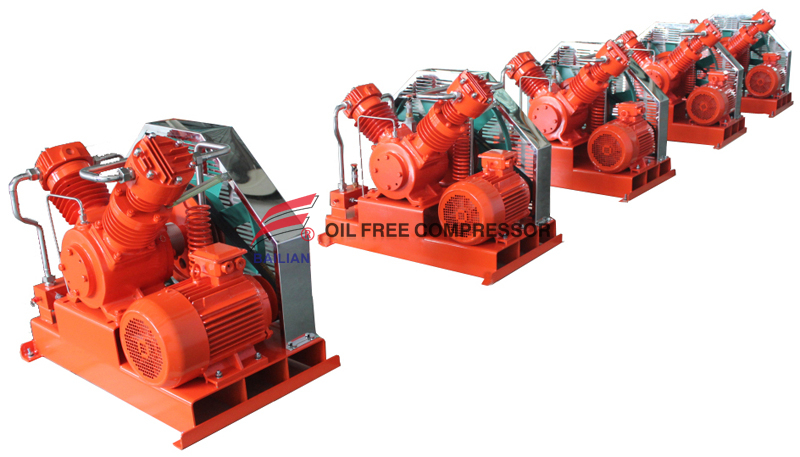

Sf6 Sulfur Hexafluoride Gas Compressor
Mainly used in the repair and maintenance of SF6 circuit breakers, recycling SR gas in the circuit breaker
The main features of bailian feng brand oil free Sulfur Hexafluoride sf6 Compressor products:
All oil-free lubrication，so the gas is clean and non-polluting.
High efficiency and low energy consumption.
Fully balanced design, low vibration
High reliability, continuous operation for 24 hours.
No special basic requirements, easy to install and maintain
The unit is air-cooled or water-cooled to reduce installation costs.
Compact structure, low operating and maintenance costs.
here is high pressure Sulfur Hexafluoride Compressor technical data
| Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
| SF6-2.5/1-50 | SF6 | 0.1,14 | 5,720 | 1.5 | 2.5 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SFV-5/1-25 | SF6 | 0.1,14 | 0.8,115 | 1.5 | 5 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SF6-6/1-50 | SF6 | 0.1,14 | 5,720 | 3 | 6 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SF6-12/1-50 | SF6 | 0.1,14 | 5,720 | 5.5 | 12 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SFV-15/1-25 | SF6 | 0.1,14 | 2.5,360 | 4 | 15 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SFV-15/2-30 | SF6 | 0.2,28 | 3.0,430 | 4 | 15 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SFV-18/1-50 | SF6 | 0.1,14 | 5,720 | 5.5 | 18 | 220V/380V/415V/440V 50/60HZ | air cooling |
| SFV-20/2-50 | SF6 | 0.2,28 | 5,720 | 5.5 | 20 | 220V/380V/415V/440V 50/60HZ | air cooling |
1.The above parameters are for reference only, and subject to the final technical quotation
2.More displacement, higher filling pressure, please consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
