ArW-5/15
BAILIAN
8414804090

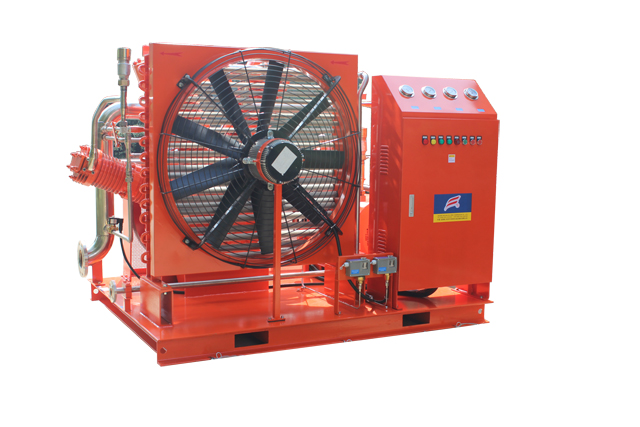

sf6 recovery compressor
Mainly used in the repair and maintenance of SF6 circuit breakers, recycling SR gas in the circuit breaker
The main features of bailian feng brand oil free sf6 recovery compressor products:
All oil-free lubrication,so the gas is clean and non-polluting.
High efficiency and low energy consumption.
Fully balanced design, low vibration
High reliability, continuous operation for 24 hours.
No special basic requirements, easy to install and maintain
The unit is air-cooled or water-cooled to reduce installation costs.
Compact structure, low operating and maintenance costs.
here is quiet sf6 recovery gas compressor technical data
Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
SF6-2.5/1-50 | SF6 | 0.1,14 | 5,720 | 1.5 | 2.5 | 220V/380V/415V/440V 50/60HZ | air cooling |
SFV-5/1-25 | SF6 | 0.1,14 | 0.8,115 | 1.5 | 5 | 220V/380V/415V/440V 50/60HZ | air cooling |
SF6-6/1-50 | SF6 | 0.1,14 | 5,720 | 3 | 6 | 220V/380V/415V/440V 50/60HZ | air cooling |
SF6-12/1-50 | SF6 | 0.1,14 | 5,720 | 5.5 | 12 | 220V/380V/415V/440V 50/60HZ | air cooling |
SFV-15/1-25 | SF6 | 0.1,14 | 2.5,360 | 4 | 15 | 220V/380V/415V/440V 50/60HZ | air cooling |
SFV-15/2-30 | SF6 | 0.2,28 | 3.0,430 | 4 | 15 | 220V/380V/415V/440V 50/60HZ | air cooling |
SFV-18/1-50 | SF6 | 0.1,14 | 5,720 | 5.5 | 18 | 220V/380V/415V/440V 50/60HZ | air cooling |
SFV-20/2-50 | SF6 | 0.2,28 | 5,720 | 5.5 | 20 | 220V/380V/415V/440V 50/60HZ | air cooling |
1.The above parameters are for reference only, and subject to the final technical quotation
2.More displacement, higher filling pressure, please consult us
