1.Total oil free
2.single or double,3-4 stage pressure riato
4.heavy duty ,and 24 hours continues working 5.silent working

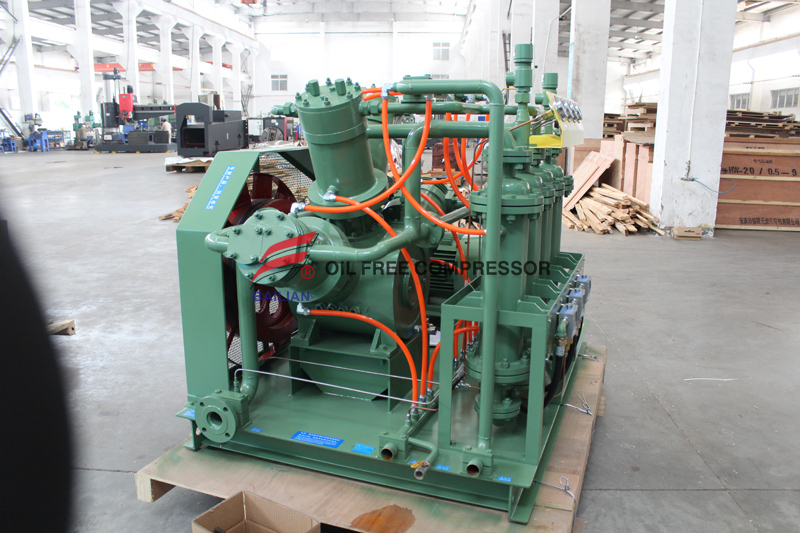

cylinder filling hydrogen compressor,as the name suggests, are devices that change the volume of hydrogen to complete compression and delivery. According to the principle, the hydrogen compressor can be divided into two types: volumetric type and speed type. Hydrogen compressors are available in diaphragm, reciprocating piston, rotary, screw, and turbine types.
Hydrogen is an important industrial raw material and has many uses in the industry. The common uses of hydrogen compressors are as follows:
hydrogen cylinder filling compressor manufacturers: filling hydrogen into high pressure bottle for storage, our hydrogen compressor filling pressure 150-200BARG
Decomposition of ammonia to produce hydrogen, pressurized for use in heat treatment of steel mill stainless steel
Photovoltaic power generation + hydrogen refueling station: electricity is produced by photovoltaic power generation, and then hydrogen is produced by water electrolysis. The hydrogen booster compressor supplier in the general hydrogen refining station is pressurized to 400-450 barg, and is filled into a high-pressure hydrogen bottle to supply hydrogen energy vehicles. use.
cylinder filling hydrogen compressor manufacturers in chemical reactions, such as hydrogen compressors for polysilicon
|Model||Working medium||suction pressure (Mpa,Psig)||Discharge pressure (Mpa,Psig)||Motor.KW||Flow rate Nm3/hr||Voltage||Cooling way|
|HV-1/5||Hydrogen||atmosphere||0.5,72||0.75||1||220V/380V/415V/440V 50/60HZ||water cooling|
|HV-15/0.5-9||Hydrogen||0.05,7||0.9,130||3||15||220V/380V/415V/440V 50/60HZ||water cooling|
|HW-20/0.5-9||Hydrogen||0.05,7||0.9,130||4||20||220V/380V/415V/440V 50/60HZ||water cooling|
|HV-17/3.4-21||Hydrogen||0.34,49||2.1,300||3||17||220V/380V/415V/440V 50/60HZ||water cooling|
|HW-16/0.5-80||Hydrogen||0.05,7||8,1150||7.5||16||220V/380V/415V/440V 50/60HZ||water cooling|
|GHV-2/2-150||Hydrogen||0.2,28||15,2160||1.5||2||220V/380V/415V/440V 50/60HZ||water cooling|
|HW-10/4-200||Hydrogen||0.4,57||20,2875||4||10||220V/380V/415V/440V 50/60HZ||water cooling|
|HD-40/200||Hydrogen||atmosphere||20,2875||22||40||220V/380V/415V/440V 50/60HZ||water cooling|
|HW-50/4-200||Hydrogen||0.4,57||20,2875||18.5||50||220V/380V/415V/440V 50/60HZ||water cooling|
|GHD-50/2-150||Hydrogen||0.2,28||15,2160||22||50||220V/380V/415V/440V 50/60HZ||water cooling|
|HD-120/2-17||Hydrogen||0.2,28||1.7,244||22||120||220V/380V/415V/440V 50/60HZ||water cooling|
|HD-100/0.5-25||Hydrogen||0.05,7||2.5,360||30||100||220V/380V/415V/440V 50/60HZ||water cooling|
|HD-200/3||Hydrogen||atmosphere||0.3,43||30||200||220V/380V/415V/440V 50/60HZ||water cooling|
|ZWH-200/0.8-12||Hydrogen||0.08,11.5||1.2,172||30||200||220V/380V/415V/440V 50/60HZ||water cooling|
1. The above parameters are for reference only, and subject to the final technical quotation
2. More displacement, higher filling pressure, please consult us
Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
