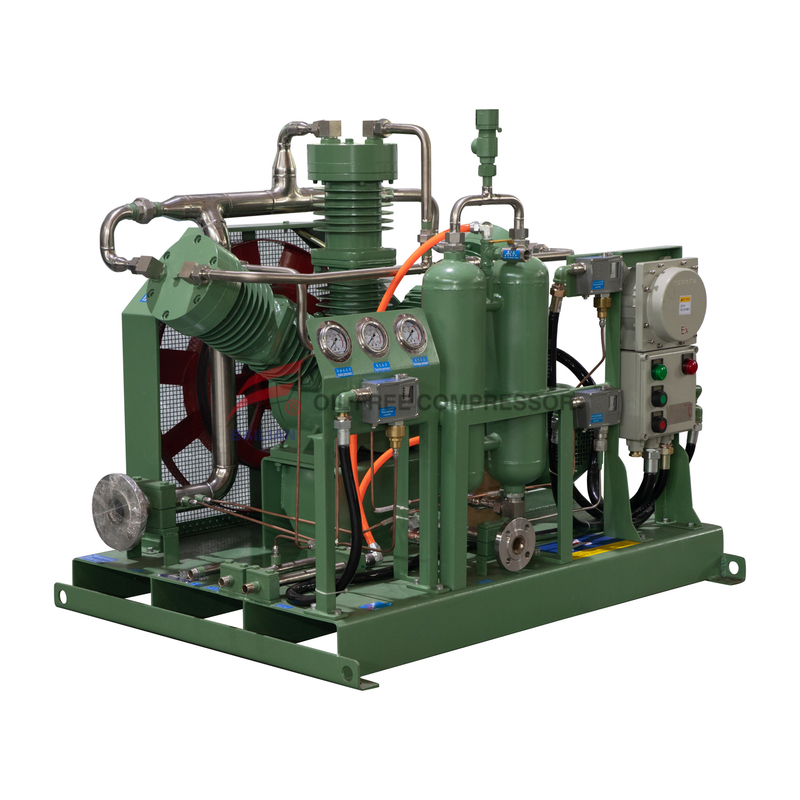

TZWH-150/16-50
What is the future development trend of hydrogen compressor?
Some hydrogen compressors are used to increase the hydrogen pressure for heat treatment of steel, and some use working conditions to use circulating hydrogen as a raw material for industrial reactions, and the hydrogen compressor provides continuous hydrogen pressure for the reactor. In the future, hydrogen compressors will be more used in hydrogen fuel cells to pressurize hydrogen to high pressure and inject it into hydrogen vehicles to obtain clean, green, and pollution-free energy.
TECHNICAL DATA | ||||
Medium | H2 | Quantity | 1 | |
Inlet pressure MPa（G） | 1.6 | Inlet temperature ℃ | 0~40 | |
Discharge pressure Mpa（G） | 5.0 | Discharge temperature（after cooling） ℃ | ≤55℃ | |
Flow rate Nm3/h | 150（while inlet pressure=16MPa） | Piston stroke mm | 75 | |
Model | TZWH-150/16-50 | Compression stages | 2 | |
Structural style | Vertical oil-free pry mounted type | Cylinder quantity | 4 | |
Shaft speed r/min | 380 ※ | Voltage V | 380 | |
Cooling mode | Air cooling | Cooling water flow t/h | --- | |
Shaft power kw | ≤15.5 | Main motor speed r/min | 1460 | |
Motor | 18.5kw 380V50Hz dIICT4 ※ | |||
Dimension mm | 2200*1500*1550※ | weight T | 1.85 | |
Import and export dimensions | Inlet DN32 discharge DN15 | Water inlet and outlet interface | ---- | |
Drive mode | Reducer | |||
Main material | frame, crankshaft | cast iron | ||
Gas valves and pipelines | stainless steel | |||
Pistons and guide rings | Filled with PTFE | |||
Scope of supply | Main engine, motor, cooler, skid mounted chassis, intake filter, oil pump motor set, safety valve, outlet matching flange, random documents, etc. | |||
Additional notes | 1. Lubricating oil should be provided by the user upon startup. (When the ambient temperature is below 5 ℃, use low-temperature lubricating oil instead) 2. Nitrogen filled sealing of piston rod; Continuous provision of nitrogen gas source is required; Nitrogen consumption:~3Nm ³/h 3. On site electrical protection level: dIICT4 4. Hazardous gases; Carry out daily inspection work. 5. The column data ※ is for user reference, and there may be discrepancies when the machine leaves the factory. Standard configuration :Electric motor (Luv-electric or Anhui xuanlida or equivalent brand)Safety valve (Zhejiang Wanneng） solenoid valve（zhejiang Sanlixin）Pressure gauge (Nanjing Zhipu)pressure controller/pressure transmitter (Changzhou Tianli)Electrical components (Zhengtai) thermal resistance（shanghai Gekun）PLC（Siemens） Touch screen (Kunlun tongtai) | |||
Delivery time | 70days after the contract is signed and the advance payment is received | |||
