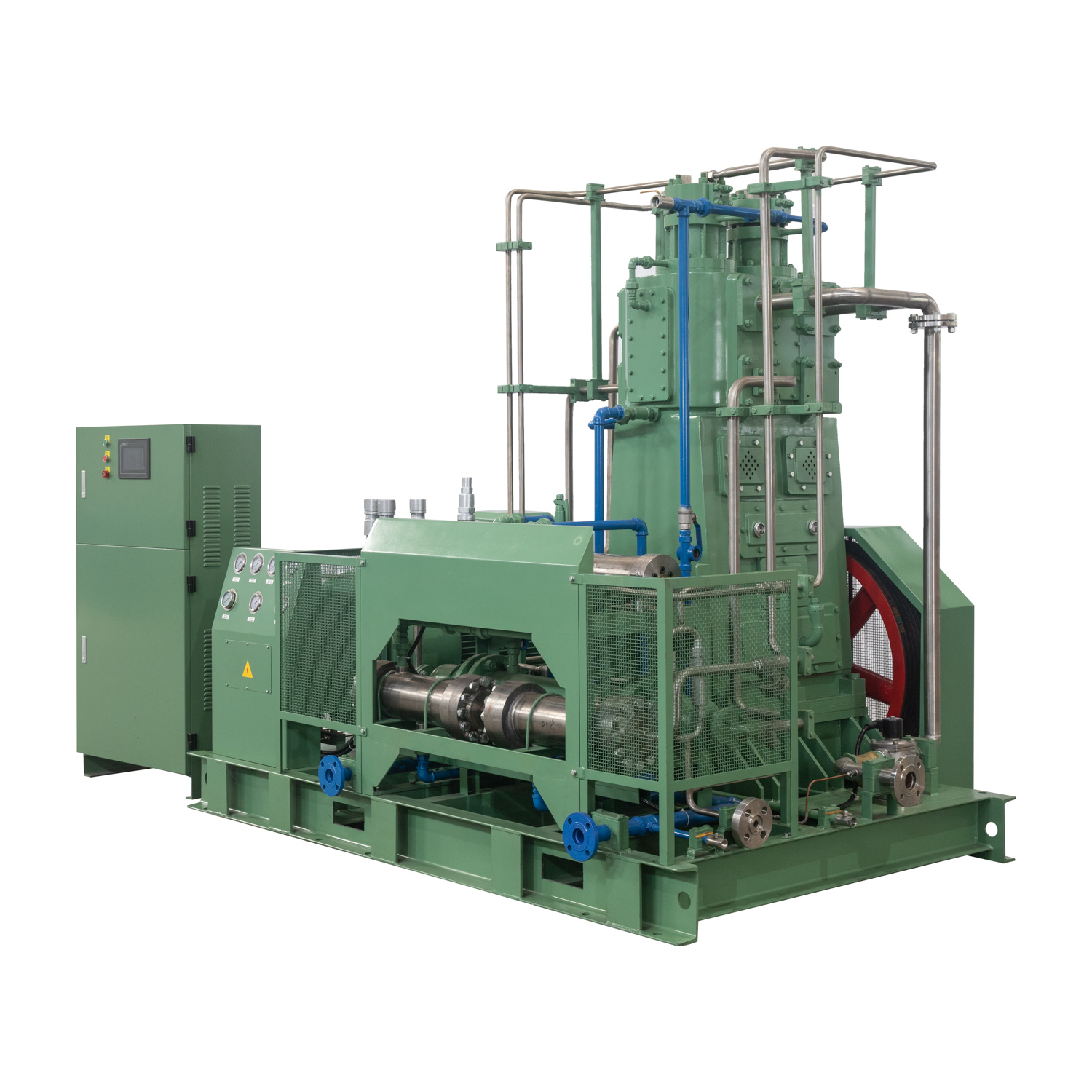

Vertical Oil-free Lubricating Skid-mounted Type CNG Compressor GZWH-100/1-250

Medium

CNG

Quantity

1

Inlet pressure  MPa（G）

0.1

Inlet temperature        ℃

0～35

Discharge pressure    Mpa（G）

25.0

Discharge temperature（after cooling） ℃

≤55

Flow rate        Nm³/h

100(While inlet pressure=0.1MPa)

Piston stroke          mm

120

Model

GZWH-100/1-250

Compression stages

4

Structural style

Vertical oil-free lubricating skid-mounted type

Cylinder quantity

4

Shaft speed      r/min

 330 ※

Voltage               V

380

Cooling mode

Water cooling

Cooling water flow        t/h

2.8

Shaft power           kw

26

Motor speed     r/min

1460

Motor

30kw 380V50Hz ExdiiCT4 ※

Dimensions   mmXmmXmm

3200×1900×2450 ※

Weight        T

  2.8 ※

Interface size         mm

INLET DN50/OUTLET DN15/COOLING WATERDN32

Drive model

Reducer connection

Material of main parts

fuselage and cylinder

cast iron

Piston ring, packing

Filled with PTFE

Air valve, cylinder liner

stainless steel

Scope of supply

Main engine, motor, cooler, oil pump, skid-mounted chassis, starting cabinet, air inlet filter, primary instrument and control elements, safety valve, special tools, inlet and outlet companion flanges, accompanying documents, etc

Additional notes

1、The site electrical explosion-proof grade is ExdiiCT4GB.

2. PLC control;

3. The piston rod is sealed with nitrogen, and the user needs to continuously provide nitrogen source on site.

4. The lubricating oil is prepared by the user.

5. ※ The data in the column is for the user's reference, and there are discrepancies when the machine leaves the factory。

Delivery time

80 days after the contract is signed and the advance payment is received
