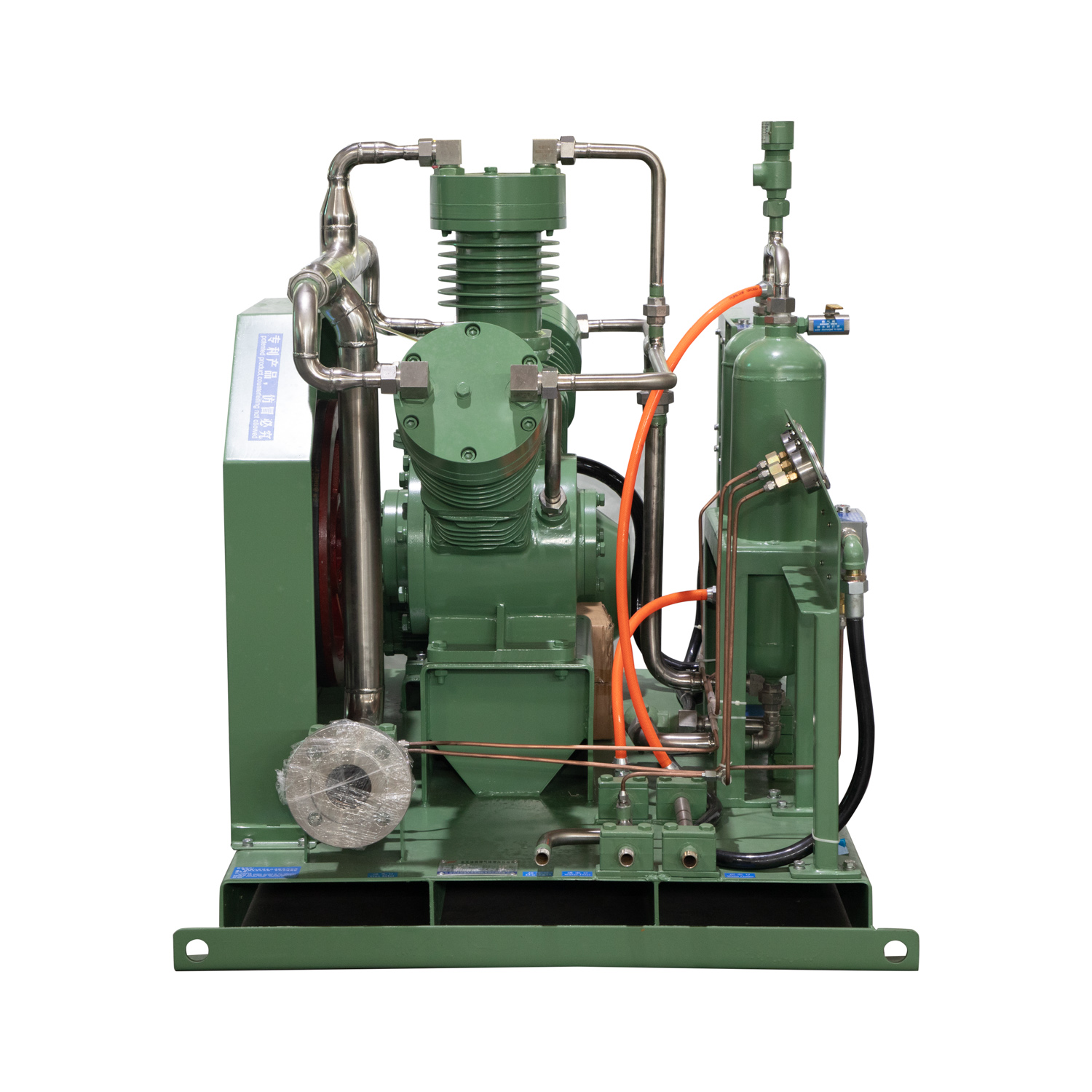

ZWH-350/1-25
TECHNICAL DATA | |||||
Medium | H2 | Quantity | 1 | ||
Inlet pressure MPa（G） | 0.1 | Inlet temperature ℃ | 0～35 | ||
Discharge pressure Mpa（G） | 2.5 | Discharge temperature（after cooling） ℃ | ≤55 | ||
Flow rate Nm3/h | 350（while inlet =0.1MPa） | Piston stroke mm | 140 | ||
Model | ZWH-350/1-25 | Compression stages | 3 | ||
Structural style | Vertical oil-free lubrication sled mounted type | Cylinder quantity | 4 | ||
Shaft speed r/min | 415 | Voltage V | 380 | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | 55 | Main motor speed r/min | 1470 ※ | ||

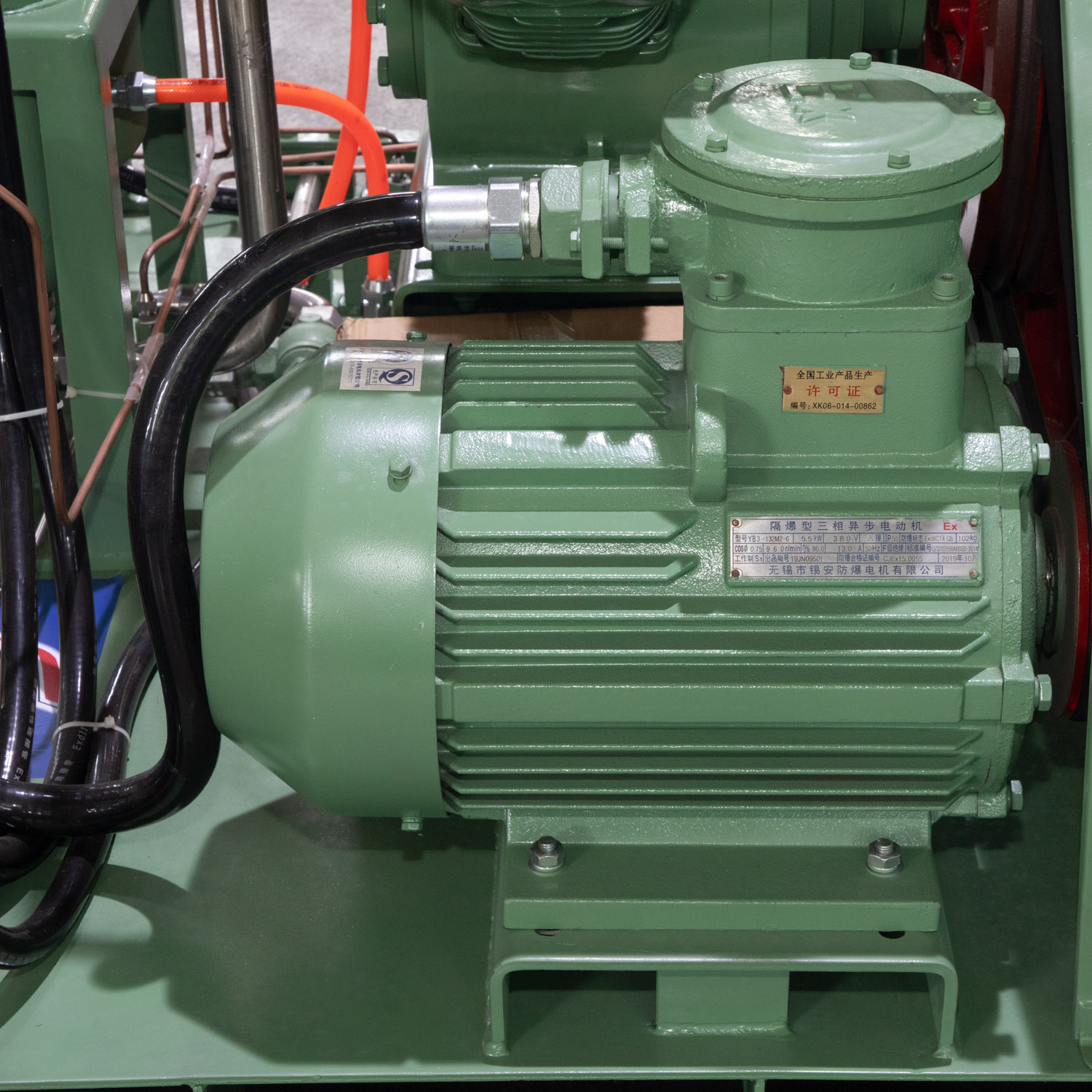

Motor | 75kw 380V 50Hz ExdiiCT4 ※ | ||||
Dimension mmXmmXmm | 3500×2000×2550 ※ | weight t | 5.8 ※ | ||
interface size mm | Inlet DN80/discharge DN25 | ||||
Drive mode | reducer | ||||
Main component material | Body, cylinder | cast iron | |||
Piston rings, packing | Filled with PTFE | ||||
Air valve and cylinder liner | Stainless steel | ||||
Scope of supply | Main engine, motor, reducer, cooler, oil pump, skid mounted chassis, starter cabinet, intake filter, primary instrument and control components, safety valve, special tools, inlet and outlet matching flanges, random documents, etc. | ||||
Additional notes | 1. The on-site electrical explosion-proof level is ExdiiCT4Gb. 2. The piston rod is sealed with nitrogen, and the user needs to provide a nitrogen source on site. 3. Lubricating oil to be provided by the user. 4. The column data ※is for user reference, and there may be discrepancies when the machine leaves the factory. | ||||
Delivery time | 80 days after the contract is signed and the advance payment is received | ||||
