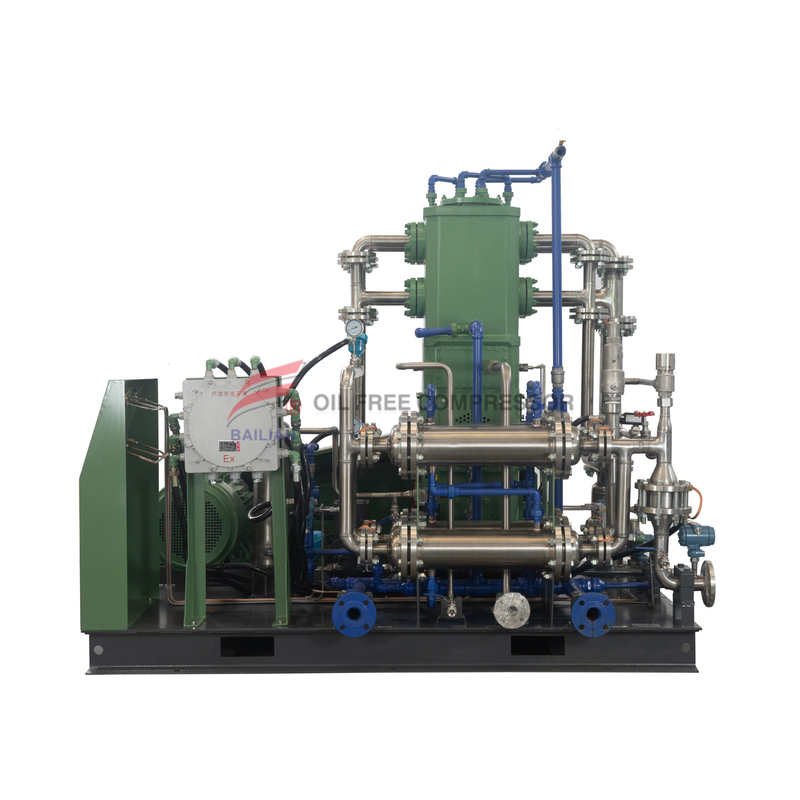

ZWHY-4200/22.5-35
TECHNICAL DATA | |||||
Medium | H2 | Quantity | 1 | ||
Inlet pressure MPa（G） | 2.25 | Inlet temperature ℃ | 0～40 | ||
Discharge pressure Mpa（G） | 3.5 | Discharge temperature（after cooling） ℃ | ≤45 | ||
Flow rate Nm3/h | 4200（while inlet pressure=2.25MPa） | Piston stroke mm | 180 | ||
Model | ZWHY-4200/22.5-35 | Compression stages | 1 | ||
Structural style | Reciprocating piston vertical sled mounted type | Cylinder quantity | 2 | ||
Shaft speed r/min | 425 ※ | Voltage V | 380V50Hz | ||
Cooling mode | WATER COOLING | Cooling water flow t/h | 12 | ||
Shaft power kw | 100 | Main motor speed r/min | 425 ※ | ||
Motor | 132kw 380V 50Hz –14极 ExdIICT4 ※ | ||||
Dimension mmXmmXmm | L3800×W2200×H2550 ※ | weight t | 7.5 ※ | ||
interface size mm | Inlet DN80/discharge DN65/cooling water DN50 | ||||
Drive mode | Coupling direct connection | ||||
Main component material | frame and slide | cast iron | |||
Piston rings, packing | Filled with PTFE | ||||
Air valve,cylinder liner | Stainless steel | ||||
Scope of supply | Main engine, motor, cooler, oil pump, skid mounted chassis, starter cabinet, intake filter, primary instrument and control components, safety valve, special tools, inlet and outlet matching flanges, random documents, etc. | ||||
Additional notes | 1. On site electrical explosion-proof level: ExdIICT4; 2. The piston rod is sealed with nitrogen gas, and a continuous nitrogen source needs to be provided on site; 3. Lubricating oil to be provided by the user; 4. The column data ※ is for user reference, and there may be discrepancies when the machine leaves the factory. | ||||
Delivery time | 100 days after the contract is signed and the advance payment is received | ||||
