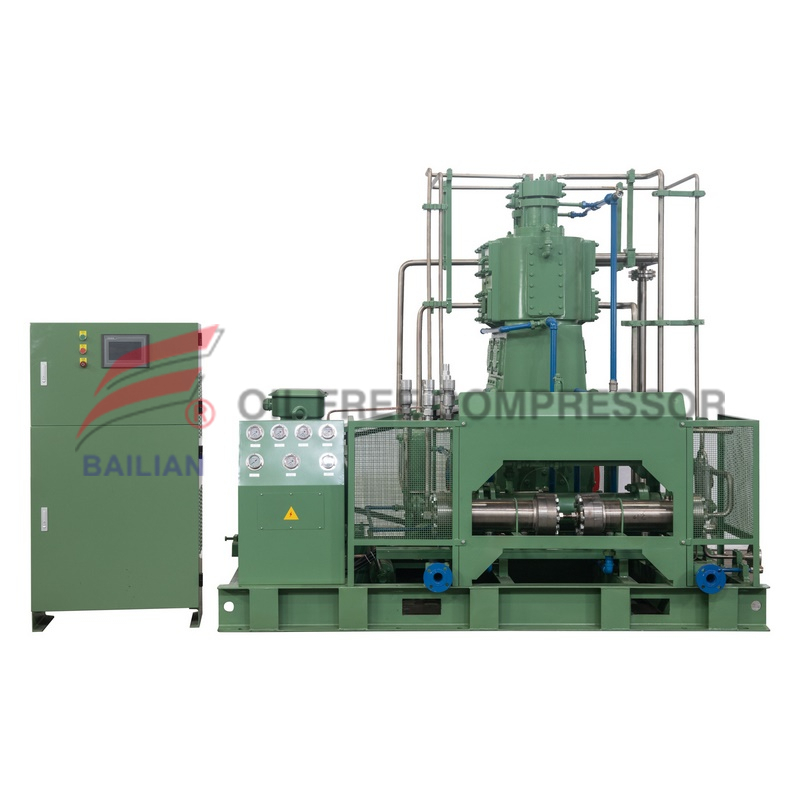

1500NM3 35bar Laster Cutting Oil Free Nitrogen Compressor
Bailian oil free nitrogen compressor
According to the product structure, it can be divided into
Type Z, V, W, SW, GSW, ZW
The displacement of the compressor can reach 10nm3 / min and the maximum pressure can reach 70MPa
The product has the following characteristics
1. Scientific and reasonable design and stable operation
2 low noise, low vibration, compact structure, stable operation, safety and reliability, high automation level,
The machine remote display and control system can also be configured according to customer requirements
3. Display the alarm shutdown function of high temperature, low inlet pressure and high exhaust pressure of the compressor,
4. Patented piston ring design, stuffing box design, less gas leakage and longer maintenance time
Product application:
It is widely used for pressure increase, pressure stabilization, power and purging in process flow, as well as power plant, food industry, medicine and other industries
Project and parameters | |||
Medium | Nitrogen | Quantity | 1 |
Inter pressure MPa（G） | 0.6 | Inter temperature ℃ | 0～35 |
Discharge pressure Mpa（G） | 3.5 | Exhaust temperature (after cooling)℃ | ≤55 |
Flow rate Nm3/h | 1500 (when Intake=0.6MPa) | Piston stroke mm | 180 |
Model | ZWY-1500/6-35 | Compressed series | 2 |
Structural type | Reciprocating piston vertical skid loading type | Number of cylinders | 4 |
Speed of crankshaft r/min | 425 ※ | Voltage V | 380V50Hz |
Cooling method | Water cooling | Cooling water flow t/h | 17.0 |
Shaft power KW | 145 | Motor speed r/min | 425 ※ |
Motor | 200kw 380V 50Hz-14 ※ | ||
Size mmXmmXmm | L3250×W2200×H2450 ※ | Weight T | 7.4 ※ |
Interface size mm | Intake DN125 / exhaust DN50 / cooling water DN65 | ||
Driving mode | coupling | ||
Material of the contact with the gas | Body, slide | cast iron | |
Piston ring, filler | filled polytetrafluoroethylene | ||
Gas valve, cylinder head | Stainless steel | ||
supply of material scope | Main engine, motor, cooler, oil pump, skid-mounted chassis, starting cabinet, air inlet filter, primary instrument and control components, safety valve, special tools, import and export matching flange, random documents, etc | ||
Other matters needing attention | 1. Lubricating oil users shall provide themselves; 2. The compressor does not have a buffer tank. The user should set up a suitable buffer tank to prevent the frequent start and stop of the machine. 3. Column data is for user reference, and the machine enters and leaves from the factory. | ||
Delivery time | Contract signing，100 days after receive the advanced payment | ||
