GSW-78/3.5-120
BAILIAN
8414804090

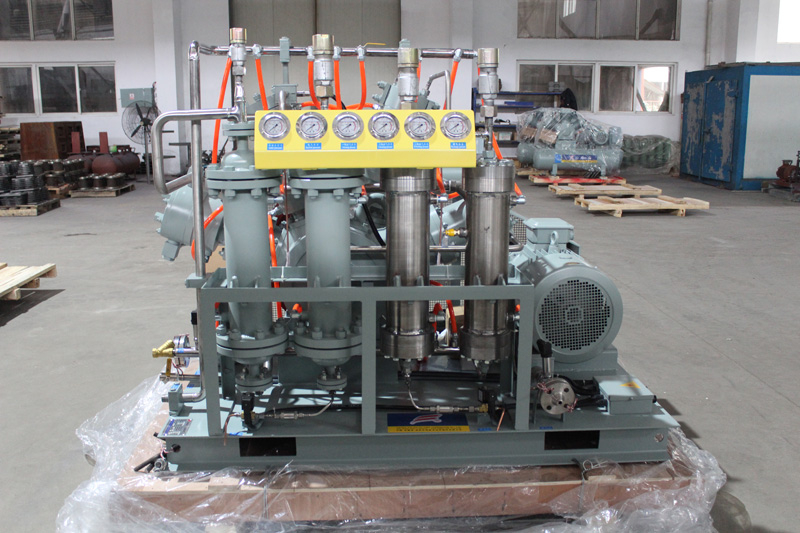

recycle high pressure nitrogen compressor is a compressor used to pressurize nitrogen and deliver or store it.
Nitrogen has many applications in the national economy.
E.g
Laser cutting
Nitrogen acts as a shielding gas in laser cutting. Medium-pressure nitrogen is mainly used to blow away oxygen, preventing metal cutting and surrounding oxidation at high temperatures during cutting, improving the cleanliness of the cutting surface and aesthetics.
2. Nitrogen storage
Generally, the outlet pressure of PSA nitrogen generator is ≤10barg. If the capacity of nitrogen generator is excessive, or if it is filled at night by peak and valley electricity, it is more economical. It needs to store nitrogen for later use. At this time, nitrogen is generally used. The compressor is pressurized to a pressure of 200-300barg and filled into a high-pressure bottle. Generally, a high-pressure bottle can be filled with about 10 cubic meters of nitrogen.
The high pressure nitrogen compressor for recycle gas filling is a completely oil-free nitrogen compressor, which requires the use of ordinary lubricating oil, but the nitrogen chamber is separated from the lubricating oil. During operation, the nitrogen is always clean and oil-free, suitable for the inlet pressure 4-8BARG. Exhaust 150-250BARG, small flow demand, mainly used for nitrogen pipeline pressurization, nitrogen filled bottle storage, suitable for 24 hours continuous operation, low maintenance cost, simple operation, safe and reliable
This high pressure nitrogen purge compressor features
.
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | NITROGEN ,dry , | |
2 | model | GSW-78/3.5-120 | |
3 | Structure | 4 stage, skid mounted | |
4 | Pressure stage | 4, 4 cylinder | |
5 | Rated capacity(standard)Nm3/h | 78(@inlet pressure 3.5 barg) ; | |
6 | Rated inlet pressure MPa(G) | 0.24-0.45 | |
7 | Rated outlet pressure MPa(G) | 12.0 | |
8 | Inlet temperature℃ | 0～35 （ -47 is too low,max -29) | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 420 ※ | |
12 | Cooling way | Water cooling | |
13 | Lubricate way | Shaft and connect rod | Pressure lubricate |
Cylinder | Oil free lubricate | ||
Shaft power | ≤17.5 | ||
14 | Motor power Kw | 22kw 380V 50Hz 3phase | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | 1800×1250×1650 ※ | |
19 | Inlet and outlet mm | ||
20 | Weight Kg | 1380 ※ | |
21 | Voltage | 380V 50hz 3phase | |
22 | Water consumption | 2.0Ton /HR | |
23 | Water inlet and outlet mm | DN20 | |
24 | Control way | Traditional control | |
1.The above parameters are for reference only, and subjest to the final technical quotation
2.More displacement, higher filling pressure, please consult us
