cooling way: | |
---|---|
Color: | |
standard: | |
ETD: | |
packing: | |
Availability: | |
Quantity: | |
WW-100-6-30
BAILIAN
8414804090

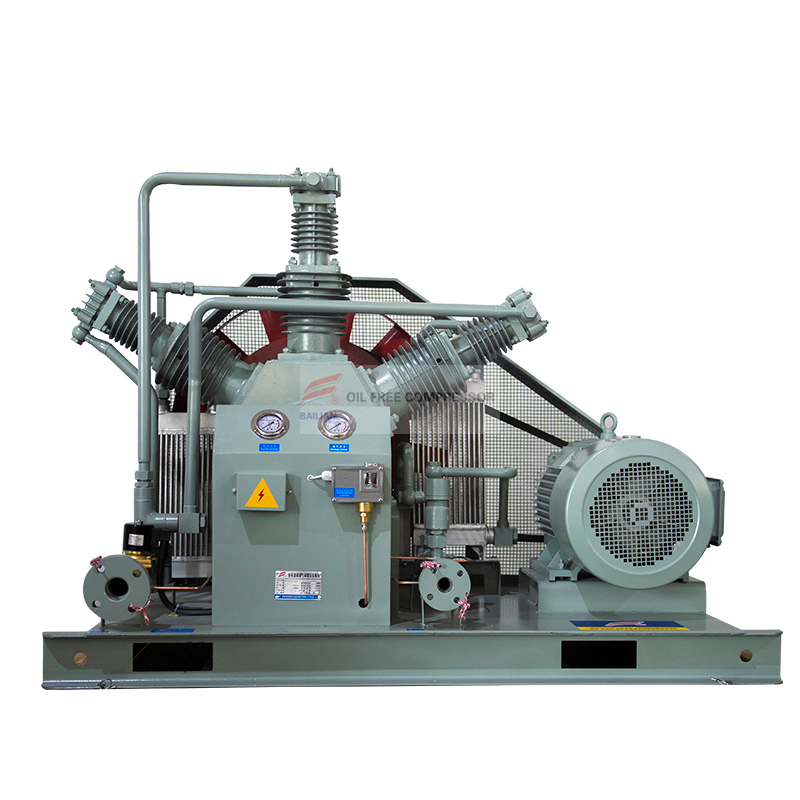

Chemical factory use oil free nitrogen compressor WW-100-6-30
Laser cutting
Nitrogen acts as a shielding gas in laser cutting. Medium-pressure nitrogen is mainly used to blow away oxygen, preventing metal cutting and surrounding oxidation at high temperatures during cutting, improving the cleanliness of the cutting surface and aesthetics.
TOTALLY OIL FREE NITROGEN COMPRESSOR
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry NITROGEN,oil free | |
2 | model | WW-100/6-30 | |
3 | Structure | two stage, skid mounted | |
4 | Pressure stage | 2 stage , 6 CYLINDER | |
5 | Rated capacity(standard)Nm3/h | 100(@inlet pressure 4bar) | |
6 | Rated inlet pressure MPa(G) | 0.4 | |
7 | Rated outlet pressure MPa(G) | 3.0 | |
8 | Inlet temperature℃ | ≤35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 650 ※ | |
12 | Cooling way | Air cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free lubricate | ||
Shaft power | ≤12 kw | ||
14 | Motor power Kw | 15KW 415V 50Hz※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External diamension L×W×H mm | 1420×1320×1100 ※ | |
19 | Inlet and outlet mm | DN40 / DN20 | |
20 | Weight Kg | 690 ※ | |
21 | Voltage | 415V 50hz 3phase |
