15nm3 9bar Oil Free Oxygen Compressor

Availability:
Quantity:

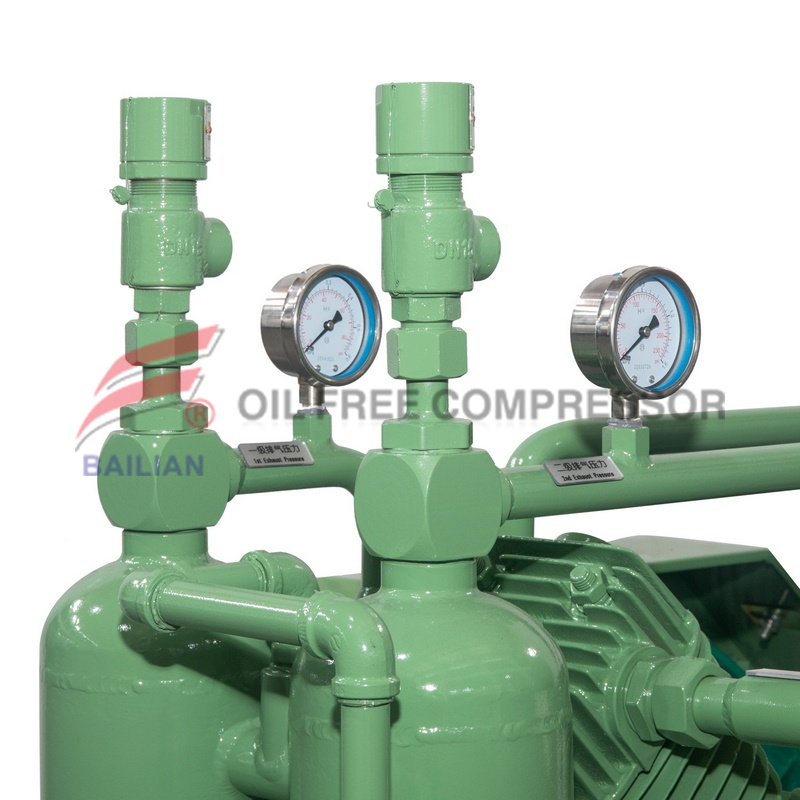

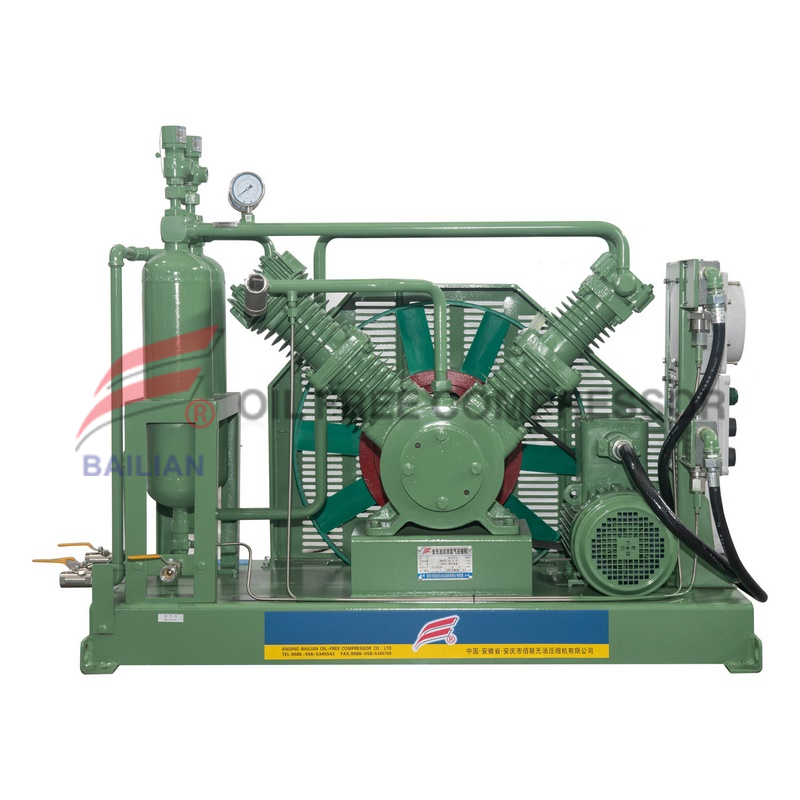

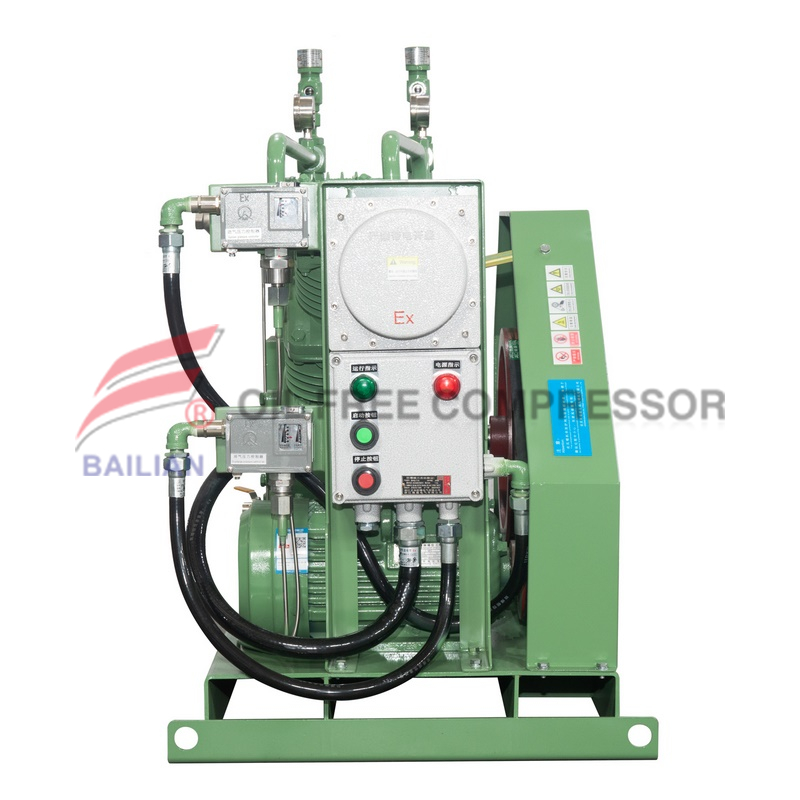

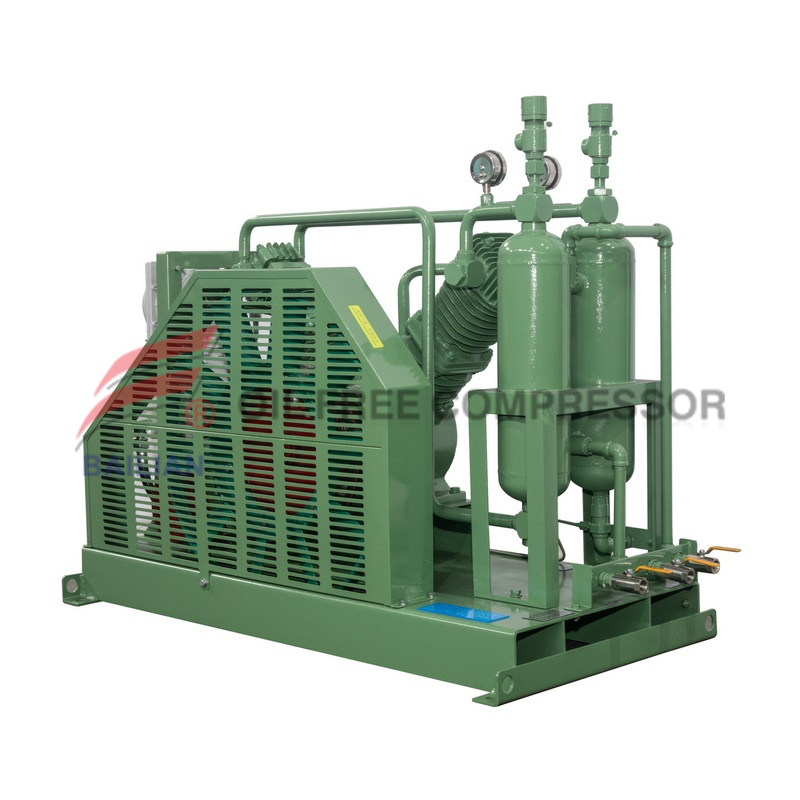

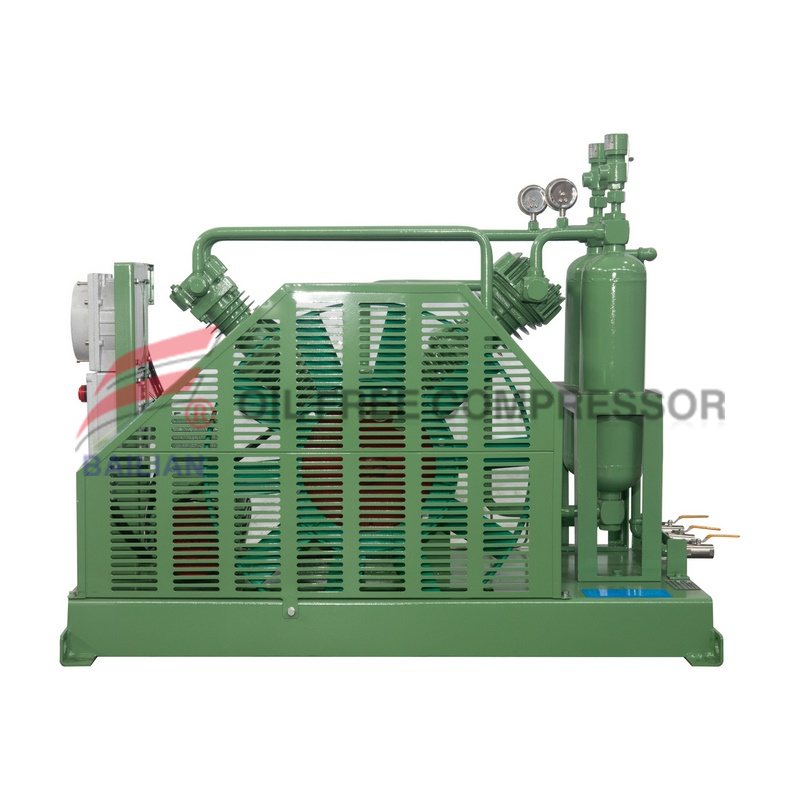

15nm3 9bar Oil Free Oxygen Compressor

Essential for industrial hydrogenation - hydrogen compressor

In recent years, due to the rapid development of petrochemical industry, advanced new hydrogenation process is widely used in petroleum refining industry, which requires the machinery industry to provide complete sets of hydrogenation equipment, and hydrogen compressor is one of them.


1、 Hydrogen compressor classification


According to the working principle and internal structure, the compressor can be divided into mechanical compressor and non mechanical compressor. Mechanical compressors are divided into liquid driven compressors, diaphragm compressors, linear compressors and ionic liquid compressors; Non mechanical compressors are divided into four categories: cryogenic liquid pump, metal hydride compressor, electrochemical hydrogen compressor and adsorption compressor.


Because hydrogen has the characteristics of low density and small volume energy density, the hydrogen compressor must have the characteristics of large pressure bearing, large flow, safety and good sealing. While preventing hydrogen embrittlement, it should pursue less energy loss as much as possible. At present, liquid driven compressor and diaphragm compressor are widely used in domestic hydrogenation stations.


2、 Working principle of hydrogen compressor


The structure of hydrogen compressor is complex. The more important components include cast iron cylinder, cast iron cylinder liner, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), packing, piston (including piston ring), oil scraper ring, stainless steel piston connecting rod, stainless steel air valve, etc. in addition, there are some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc. Like other reciprocating compressors, hydrogen compressors include three processes: suction, compression and exhaust. Driven by the motor, the crankshaft drives the crosshead, piston connecting rod and piston to move back and forth in the cylinder. The gas is compressed by the piston and finally discharged through the air valve.


3、 Application of hydrogen compressor


1. In the chlor alkali industry, the main function of hydrogen compressor is to cool and purify the high-temperature wet hydrogen from the electrolysis process, pressurize the transmission, maintain the stable pressure of the hydrogen system, and ensure the safe and stable operation of the electrolytic cell.


2. At present, the huge environmental pressure and the gradual depletion of fossil fuels and traditional energy make countries all over the world actively seek new clean energy. Hydrogen energy and hydrogen fuel cell have attracted more and more attention all over the world because of their good environmental protection performance, high energy conversion efficiency and certain economy. In order to promote the development of hydrogen energy, the improvement of hydrogen energy infrastructure is essential. Hydrogen compressor is one of the three core and key monomer equipment required for the construction of hydrogenation station.

OIL FREE hydrogen COMPRESSOR


S/N

ITEMS

TECHNICAL DATA

1

WORKING MEDIUM

Hydrogen gas

2

Model

HV-15/0.5-9

3

Structure

Totally oil free V type

4

Pressure stage

2

5

Rated capacity (standard condition)Nm3/h

15(@suction pressure 0.5barg)

6

Rate inlet MPa(G)

0.05

7

Rated outlet MPa(G)

0.9

8

Inlet temperature℃

≤40

9

Outlet temperature℃

≤130

10

Transmit temperature℃

≤45

11

Shaft speed r/min

500 ※

12

Cooling way

Water cooling

13

lubricate

Crank shaft and connect rod

Seal grease seal

Cylinder

Oil free lubricate

14

Motor power Kw

3 380V 50Hz dⅡCT4

15

Transmit way

Belt driven

16

Installation way

Has simple basement

17

Automatic control

Automatic stop whenpressure overload

18

Dimension L*W*H mm

1300X600X1100

19

Gas Inlet inch mm

15

20

Gas Outlet inch mm

15

21

Water inlet and outlet mm

15

22

Water cooling capacity kg/h

300 ,2-4 bar pressure ,30degree inlet ,and 35 degree outlet

23

Anti-explosive class

dⅡCT4

24

Weight Kg

380 ※

25

Motor

380v 50hz 3phase

26

Delivery time

35 DAYS

27

DOCUMENT

B/L,CI ,PL.and CO,
