| cooling way: | |
|---|---|
| Color: | |
| standard: | |
| packing box: | |
| ETD time: | |
| Quantity: | |
ZOW-1500/5-12
BAILIAN
8414804090
Oxygen is a violent combustion improver that can easily cause burning and explosion.
Special care should be taken when designing and using tank reciprocating oxygen compressor: Compressed gas parts are strictly prohibited from coming into contact with oil, oil is not contaminated during maintenance, and must be cleaned with solvent before assembly.
Since 1995, we have been developing our medical oilless low pressure oxygen compressor system. When manufacturing every component that comes into contact with the gas, we follow strict oxygen cleaning guidelines and maintain a detailed cleaning record.

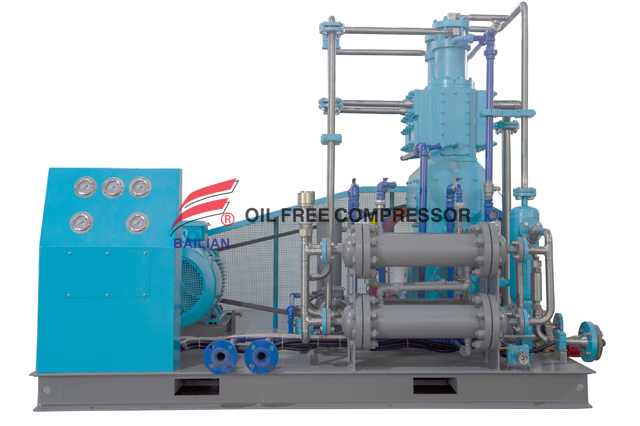

The low pressure oilless oxygen compressor is a semi-oil-free oxygen compressor, which requires the use of ordinary lubricating oil, but the oxygen chamber is separated from the lubricating oil. During operation, the oxygen is always clean and oil-free, suitable for low intake pressure, row The gas pressure is not high, but the oxygen flow demand of relatively large flow rate is generally several hundred to several thousand standard one hour. It is mainly used for oxygen pipeline pressurization, which is very suitable for continuous operation for 24 hours. The maintenance interval can reach 6000-7000 hours. The cost performance is very good
low pressure oilless medical oxygen compressor features
Vertical cylinder compression, the cylinder is perpendicular to the horizontal plane, using the potential energy of the piston itself, effectively reducing power consumption, reducing the cost of use, significant economic benefits, water-cooled cooling mode, ensuring good cooling effect of the compressor, and effectively extending the critical vulnerability The service life of the piece, the inlet is equipped with low intake pressure protection, the exhaust end is equipped with high exhaust pressure protection, and the exhaust gas temperature is high protection. Each stage is equipped with a safety valve and a temperature display, if over temperature and overpressure The system will stop the alarm and ensure safe operation. There is a forklift at the bottom of the compressor, which can be easily transferred to the construction site.
| Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way |
| ZOW-500/0.2-10 | oxygen | 0.2,30 | 1,145 | 75 | 500 | 220V/380V/415V/440V 50/60HZ | water cooling |
| ZOW-1500/12-15 | oxygen | 1.2,150 | 1.5,215 | 30 | 1500 | 220V/380V/415V/440V 50/60HZ | water cooling |
| ZOW-1500/5-12 | oxygen | 5,70 | 1.2,172 | 75 | 1500 | 220V/380V/415V/440V 50/60HZ | water cooling |
1.The above parameters are for reference only, and the technical data is subject to our final technical solution
2.More displacement, higher filling pressure, please consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
