300nm3 Oil Free Oxygen Compressor

Availability:
Quantity:

300nm3 Oil Free Oxygen Compressor

Essential for industrial hydrogenation - hydrogen compressor


In recent years, due to the rapid development of petrochemical industry, advanced new hydrogenation process is widely used in petroleum refining industry, which requires the machinery industry to provide complete sets of hydrogenation equipment, and hydrogen compressor is one of them.


1、 Hydrogen compressor classification


According to the working principle and internal structure, the compressor can be divided into mechanical compressor and non mechanical compressor. Mechanical compressors are divided into liquid driven compressors, diaphragm compressors, linear compressors and ionic liquid compressors; Non mechanical compressors are divided into four categories: cryogenic liquid pump, metal hydride compressor, electrochemical hydrogen compressor and adsorption compressor.


Because hydrogen has the characteristics of low density and small volume energy density, the hydrogen compressor must have the characteristics of large pressure bearing, large flow, safety and good sealing. While preventing hydrogen embrittlement, it should pursue less energy loss as much as possible. At present, liquid driven compressor and diaphragm compressor are widely used in domestic hydrogenation stations.


2、 Working principle of hydrogen compressor


The structure of hydrogen compressor is complex. The more important components include cast iron cylinder, cast iron cylinder liner, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), packing, piston (including piston ring), oil scraper ring, stainless steel piston connecting rod, stainless steel air valve, etc. in addition, there are some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc. Like other reciprocating compressors, hydrogen compressors include three processes: suction, compression and exhaust. Driven by the motor, the crankshaft drives the crosshead, piston connecting rod and piston to move back and forth in the cylinder. The gas is compressed by the piston and finally discharged through the air valve.


3、 Application of hydrogen compressor


1. In the chlor alkali industry, the main function of hydrogen compressor is to cool and purify the high-temperature wet hydrogen from the electrolysis process, pressurize the transmission, maintain the stable pressure of the hydrogen system, and ensure the safe and stable operation of the electrolytic cell.


2. At present, the huge environmental pressure and the gradual depletion of fossil fuels and traditional energy make countries all over the world actively seek new clean energy. Hydrogen energy and hydrogen fuel cell have attracted more and more attention all over the world because of their good environmental protection performance, high energy conversion efficiency and certain economy. In order to promote the development of hydrogen energy, the improvement of hydrogen energy infrastructure is essential. Hydrogen compressor is one of the three core and key monomer equipment required for the construction of hydrogenation station.

OIL FREE hydrogen COMPRESSOR

S/N

ITEMS

TECHNICAL DATA

1

Working medium

Dry hydrogen gas

2

model

ZWH-300/0.25-30

3

Structure

oil free reciprocating,Vertical type

4

Pressure stage

3stage, 4cylinder

5

Rated capacity(standard)Nm3/h

300Nm3/hr (@suction 0.25barg)

6

Rated inlet pressure MPa(G)

0.025

7

Rated outlet pressure MPa(G)

3.0

8

Inlet temperature℃

0~35

9

Outlet temperature ℃

≤55 after cooling

10

Transmit gas temperature℃

≤55

11

Shaft speed r/min

485 ※

12

Cooling way

Water cooling

13

Lubricate way

Shaft and connect rod

Lubricate oil

Cylinder

Oil free lubricate


Shaft power

≤58

14

Motor power Kw

75kw 400V50Hz---12极ExdIICT4

15

Transmit way

Belt driven

16

Installation way

Simple basement

17

Automatic control parts

Overload ,stop automatic

18

External dimension L×W×H mm

2800×1800×2550

19

Inlet and outlet mm

DN100/DN25

20

Weight Kg

4200

21

Voltage

400v/50hz/3phase

22

Water consumption

6200kgs/hr


Water inlet outlet

DN40


Pipe and valve,gas valve

Stainless steel


Piston ring ,filling stuff

Filled with polytetrafluoroethylene


Crank and shaft

Carbon steel

23

SEAL WAY

FILLING NITROGEN GAS SEAL TO PISTON ROD,NEED HAS NITROGEN GAS RESOURCE

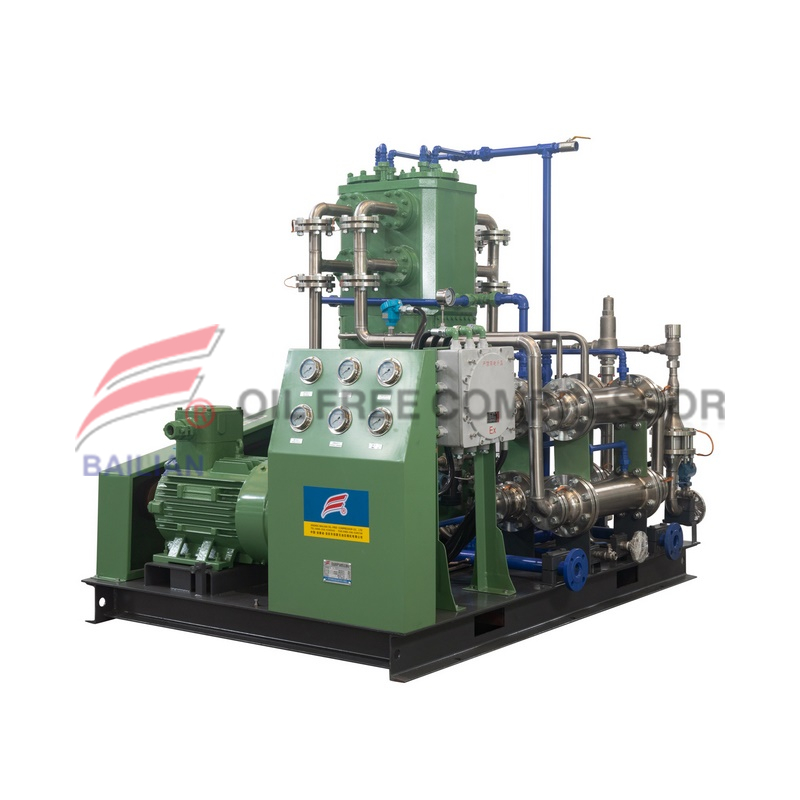

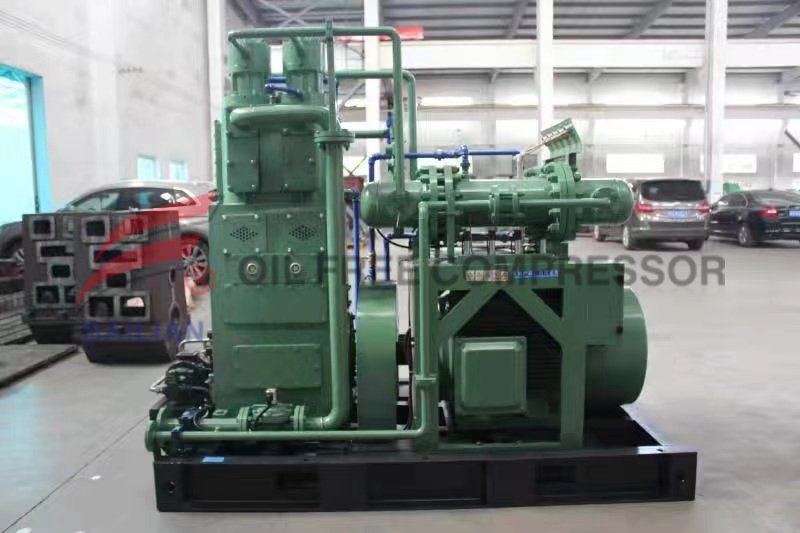

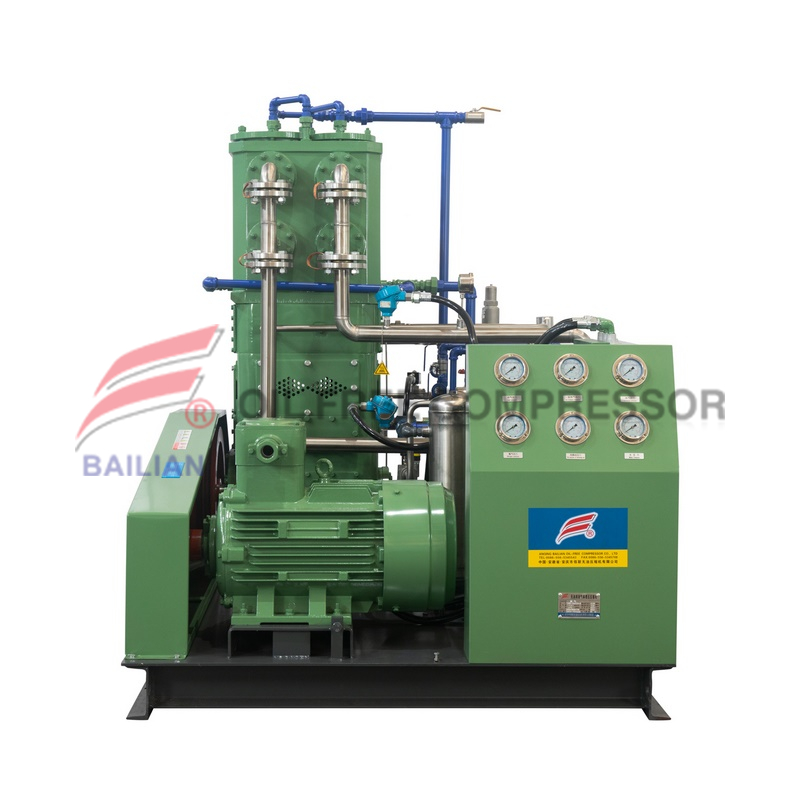

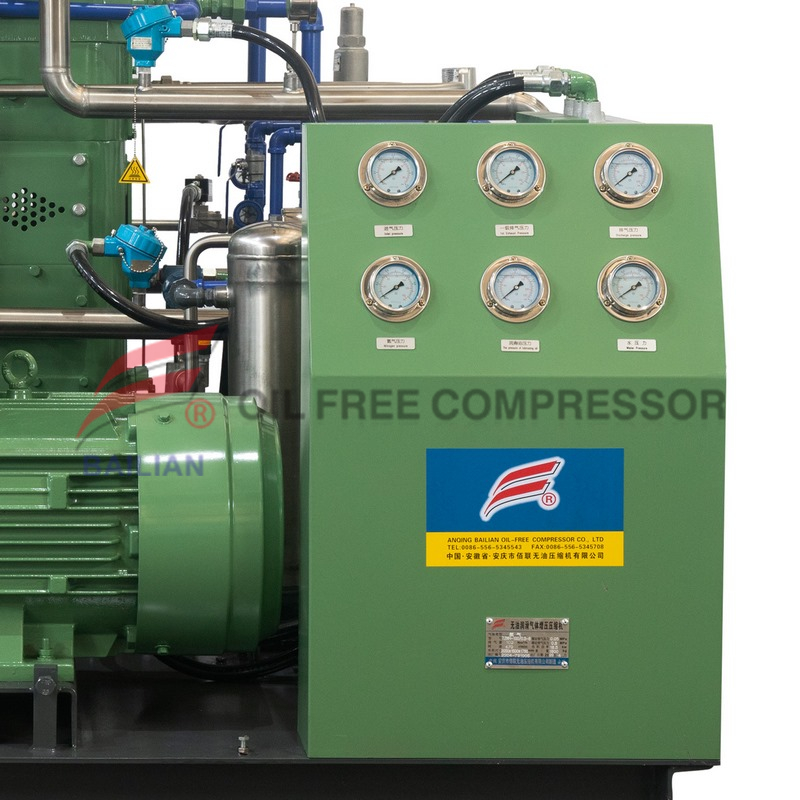

9e26b67b3aa91a011f779546be7963d100 (复制)099 (复制)101
