| cooling way: | |
|---|---|
| Drive Mode: | |
| Lubrication: | |
| ETD Time: | |
| Quantity: | |

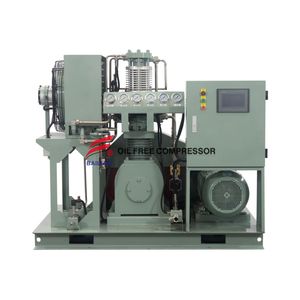

2VW-150/5-68
BAILIAN
Easy maintenance: The nitrogen compressor has fewer parts and seals, is easy to maintain and cost effective.
Cost-effective: Nitrogen compressors are characterized by high output power and low cost.
Strong adjustability: The output pressure and flow of the nitrogen compressor are precisely controlled by the pressure regulating valve of the propellant gas.
Adjust the drive air pressure so that the output pressure of the air pressure line booster pump is set exactly between the projecting air pressure and the maximum output pressure.
High output pressure: The maximum working pressure of pneumatic liquid line pressure increase pump can be achieved, and the maximum working pressure of pneumatic gas line pressure increase pump can be achieved.
Excellent material: The high pressure part of the nitrogen compressor is made of hard aluminum alloy. The high-pressure piston is made of stainless steel. And two-layer sealant. The material of the key parts can be selected depending on the medium.
Various gas drives: compressed air, nitrogen, water vapor etc.
Large output current: Pneumatic pipeline booster pump only needs 0.2-0.8 MPa compressed air. All "O" rings of the same pump series, the wear parts of the maintenance kit can be replaced with each other, which significantly reduces maintenance costs. Pneumatic inline booster pumps do not require lubricants.
Important reminder: The gas compressed by the compressor must be dry and free of particles!
TECHNICAL DATA | ||||
Medium | N2 | Quantity | 1 | |
Inlet pressure MPa（G） | 0.5 | Inlet temperature ℃ | 0～40 | |
Discharge pressure Mpa（G） | 6. 8 | Discharge temperature（after cooling） ℃ | ≤55 | |
Flow rate Nm3/h | 150（while inlet pressure=0.5MPag） | Piston stroke mm | 110 | |
Model | 2VW-150/5-68 | Compression stages | 3 | |
Structural style | Double V-shaped pry mounted type | Cylinder quantity | 4 | |
Shaft speed r/min | 600 ※ | Voltage V | 380 | |
Cooling mode | Air cooling | Cooling water flow t/h | --- | |
Shaft power kw | 24 | Main motor speed r/min | 1460 ※ | |
Motor | 30kw 380V 50Hz ExdIIBT4 ※ | |||
Dimension mm | L1850×W1350×H1550 ※ | weight t | 1.7 ※ | |
Drive mode | Anti static belt | |||
Main component materials | frame, crankshaft | cast iron | ||
Air valve, cylinder liner | stainless steel | |||
Piston ring, guide ring | Filled with TPFE | |||
Scope of supply | Host, motor, cooler, skid mounted chassis, starter cabinet, intake filter, safety valve, random files, etc. | |||
Additional notes | 1. On site electrical explosion-proof rating: ExdIIBT4; 2. ※The column data is for user reference only, and there may be discrepancies when the machine leaves the factory. | |||
Delivery time | 60days after the contract is signed and the advance payment is received | |||
