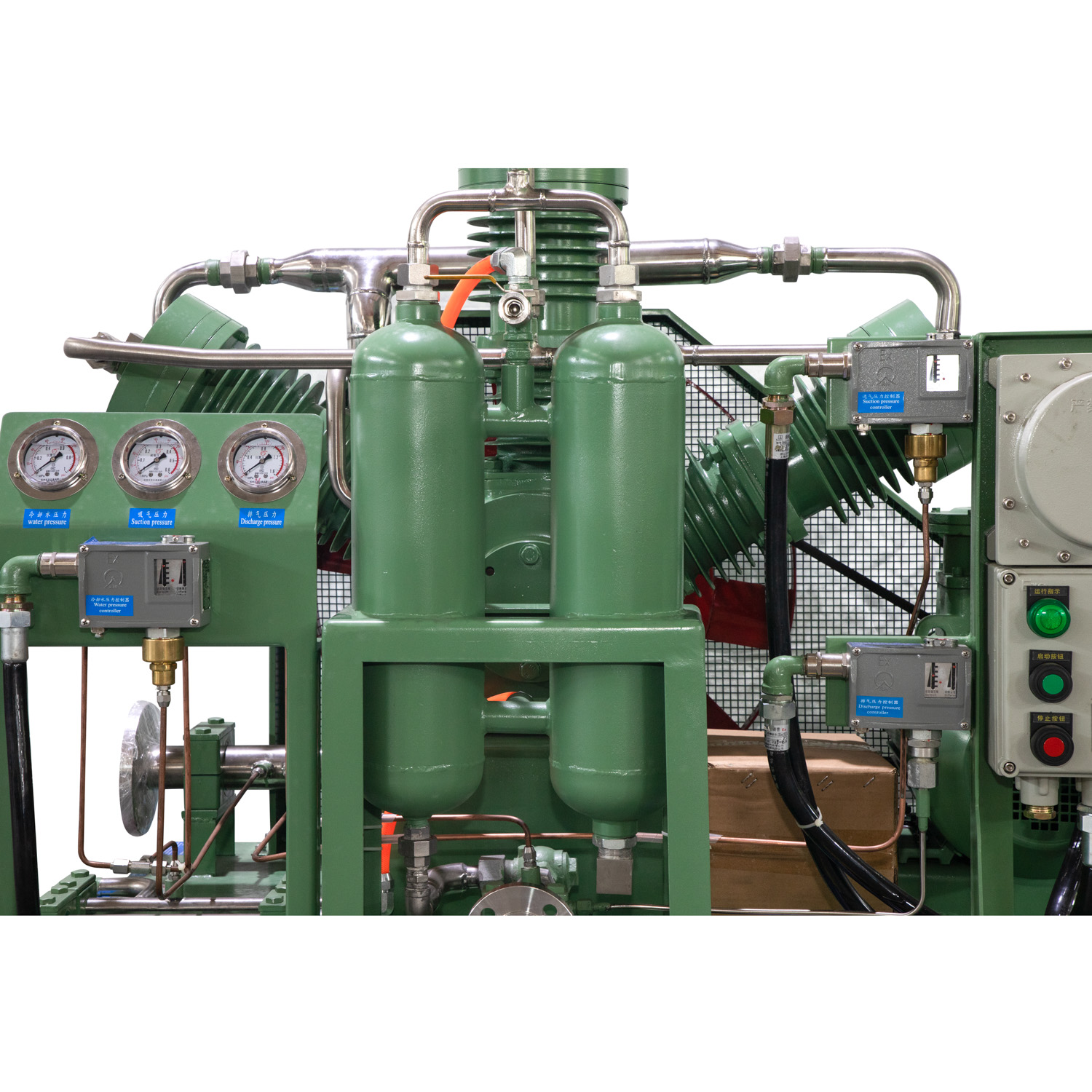

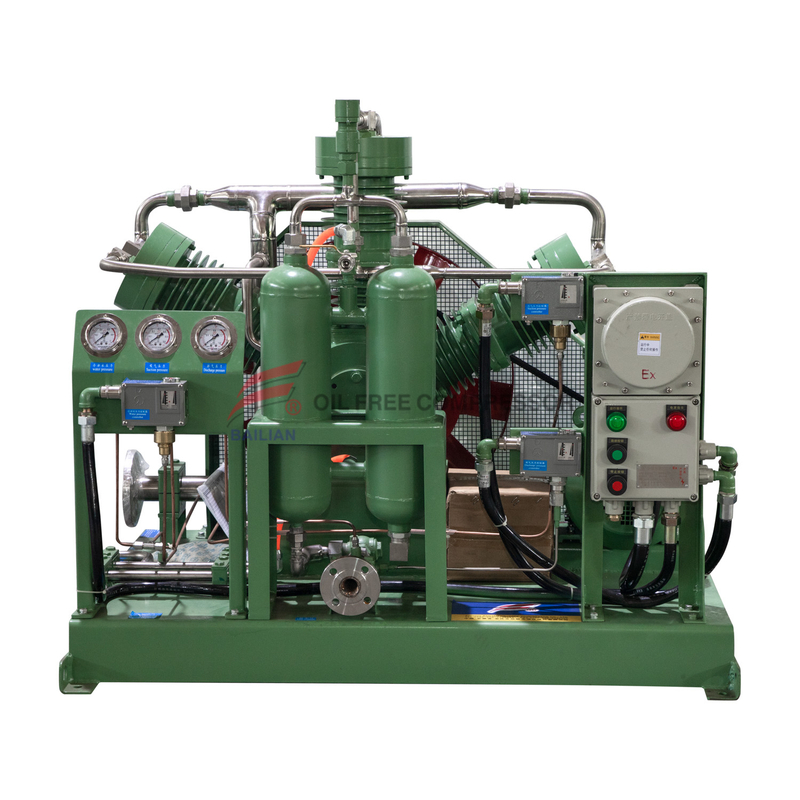

HW-23/1-50
Serious reminder: The gas compressed by the compressor must be dry and free of particles!
Medium | H2 | Quantity | 1开 备 | ||
Inlet pressure MPa（G） | 0.1 | Inlet temperature ℃ | ≤ 40 | ||
Discharge pressure Mpa（G） | 5.0 | Discharge temperature（after cooling） ℃ | ≤ 50 | ||
Flow rate Nm3/h | 23 | Piston stroke mm | 90 | ||
Model | HW-23/1-50 | Compression stages | 3 | ||
Structural style | Completely oil-free lubrication W-type | Cylinder quantity | 3 | ||
Shaft speed r/min | 280 ※ | Voltage V | 380 | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | ≤6.8kw | Main motor speed r/min | 730 | ||
Inlet and outlet interfaces mm | 25、15 | Water Inlet and outlet interfaces mm | -- | ||

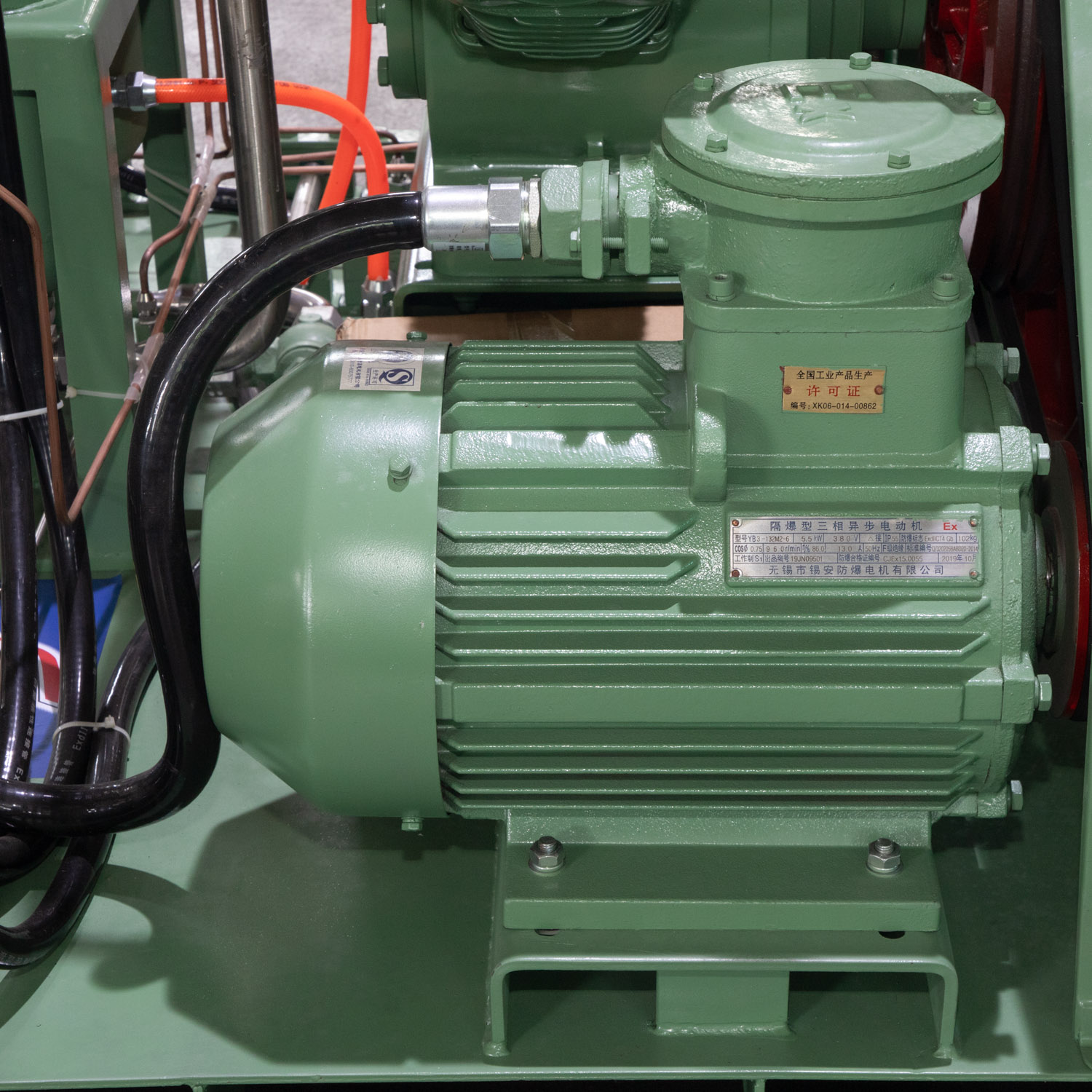

Motor | 11KW 380V 50Hz dⅡCT4 ※ | ||||
Dimensions mmXmmXmm | 1600X1000X1200 ※ | weight T | 0.9 ※ | ||
Drive mode | Belt drive | ||||
Material of the part in contact with gas | cylinder | Stainless steel | |||
Air valve | Stainless steel | ||||
Pipeline and cooler | Stainless steel, aluminum alloy, and stainless steel | ||||

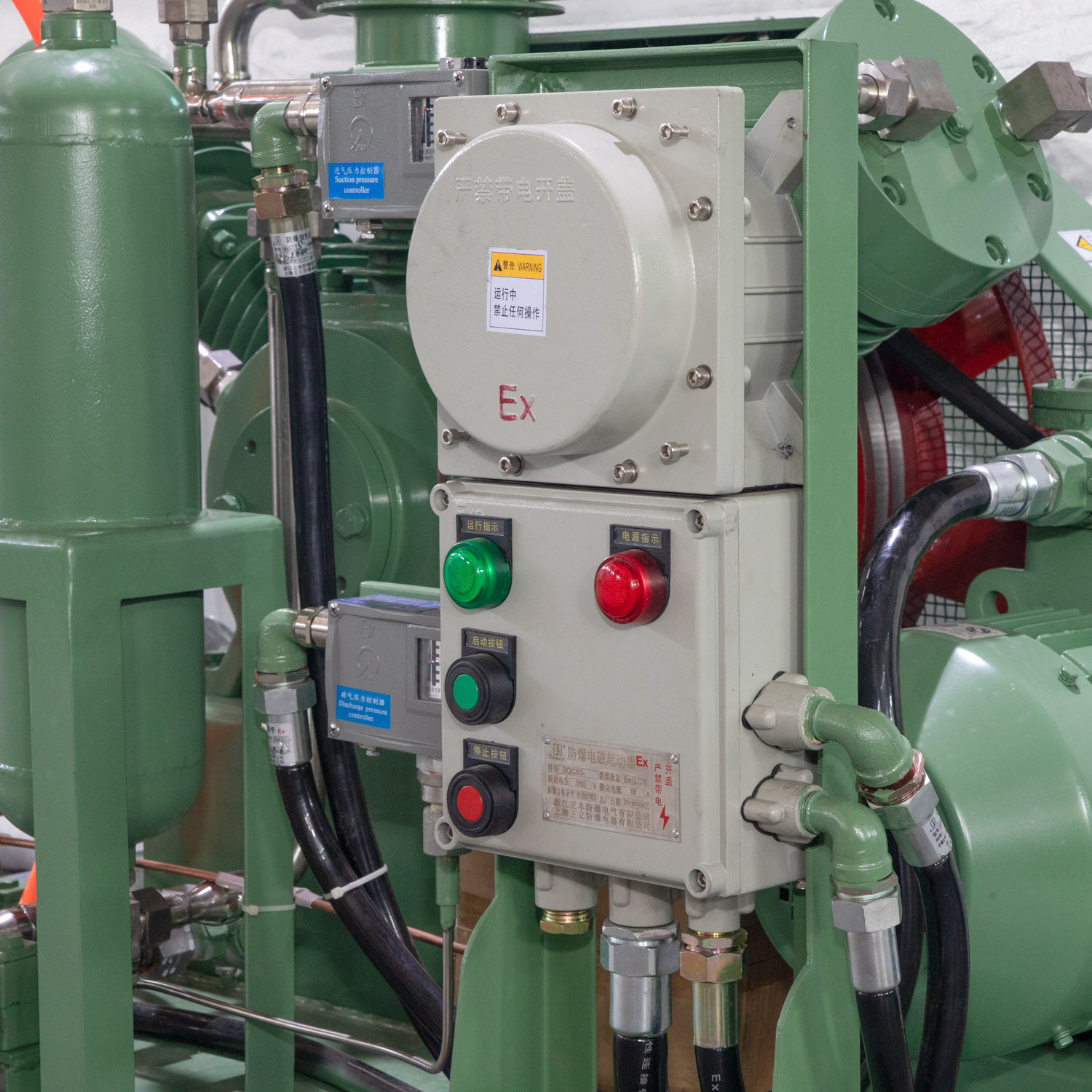

Scope of supply | Main engine, motor, pry mounted chassis, starter cabinet, intake filter, front primary meter and control components, safety valve, random files, random spare parts, etc. (Note: The final technical agreement shall prevail). | ||||

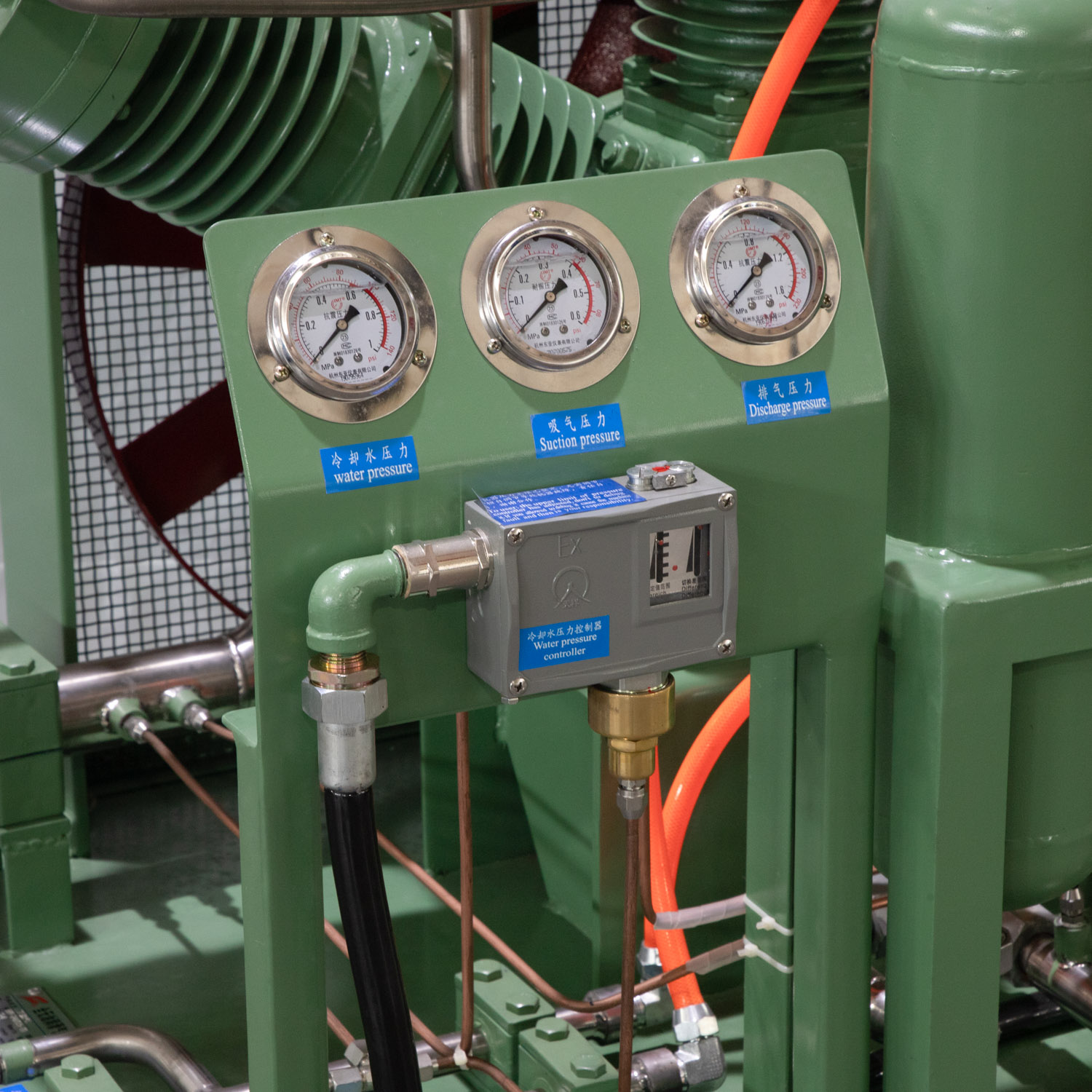

Additional notes | Sealing method: mechanical seal. Reminder: Dangerous gases, users must do daily security checks! motor（Luv-electric or Anhui xuanlida or Equivalent brand ） safety valve（zhejiang Wanneng） solenoid valve（zhejiang Sanlixin） pressure gage（nanjing Zhipu） Pressure controller/pressure transmitter（changzhou Tianli） Electrical components（Zhengtai） | ||||
Delivery time | 40 days after the contract is signed and the advance payment is received | ||||
1. The price includes tax, and does not include debugging fees;
2.The above parameters are quoted as standard by our company. If there are special requirements, they will be discussed separately.
3.The column data※ is for user reference, and there may be discrepancies when the machine leaves the factory.
H2
What is the future development trend of hydrogen compressor?
Some hydrogen compressors are used to increase the hydrogen pressure for heat treatment of steel, and some use working conditions to use circulating hydrogen as a raw material for industrial reactions, and the hydrogen compressor provides continuous hydrogen pressure for the reactor. In the future, hydrogen compressors will be more used in hydrogen fuel cells to pressurize hydrogen to high pressure and inject it into hydrogen vehicles to obtain clean, green, and pollution-free energy.
