Medical Low Pressure Oxygen Therapy Compressor

1.portable oxygen boost station
2.suitable for small hospital
3.silent working
4.totally oil free ,safety ,and reliable
cooling way:
packing box:
ETD time:
  • OW-60/3-30


  • 8414804090

Oxygen is a violent combustion improver that can easily cause burning and explosion.

Special care should be taken when designing and using therapy oxygen compressor: Compressed gas parts are strictly prohibited from coming into contact with oil, oil is not contaminated during maintenance, and must be cleaned with solvent before assembly.

Since 1995, we have been developing our low pressure oxygen therapy compressor system. When manufacturing every component that comes into contact with the gas, we follow strict oxygen cleaning guidelines and maintain a detailed cleaning record.

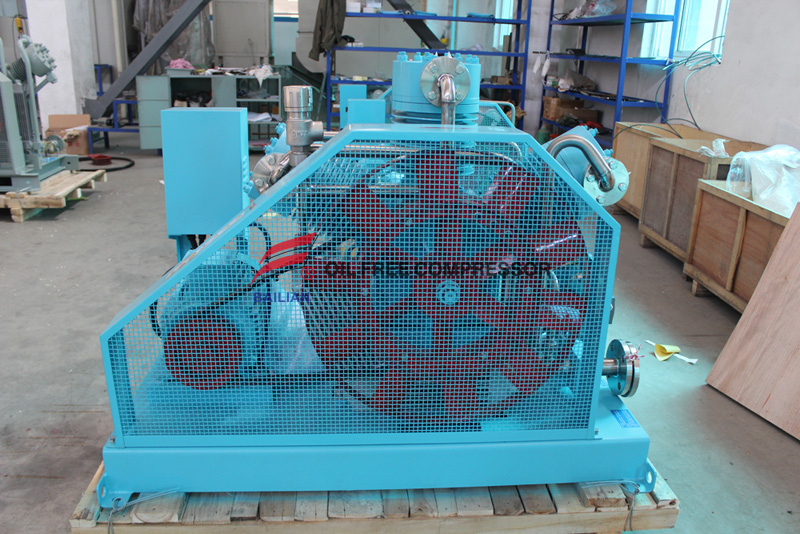

low pressure hospital use oxygen compressor (1)

This OW-type medical low pressure therapy oxygen compressor is a completely oil-free oxygen compressor. The machine itself does not use lubricating oil, uses packing seal way ,andthree cylinder, low speed, long service life of piston ring, durable and no pollution to oxygen. It is widely used in hospital pipelines. Pressure, hyperbaric oxygen chamber treatment

All standard low pressure medical therapy oxygen compressor are CE marked to meet the requirements of the EU market. We can also provide customized oxygen compressors according to customer conditions.

medical therapy low pressure oxygen compressor have the following features

According to the different working conditions of the customer:

1. Oxygen for VPSA PSA and LOX gas source

2.NO pollution, keep the same purity into the gas

3.RELIABLE and the highest quality, comparable to the American RIX brand.

4. TOP low cost, low maintenance cost and simple operation

5. According to the customer's specific working conditions, the compressor is designed for single machine compression, two-stage compression, three-stage compression and four-stage compression.

6. Low speed, long life, average speed 260-350RPM,

7. Low noise, average noise below 75dB, can work quietly in the medical field

8, continuous continuous heavy-duty operation, can run continuously for 24 hours without stopping

9. Each stage has an interstage safety valve. If the stage is overpressured, the safety valve will take off and release the overpressure gas to ensure the stable operation of the compressor.

10. Each level has a temperature controller. If the temperature between the stages exceeds the standard, the temperature display will sound and light alarm.

11. Obtain CE certification

Model Working medium suction pressure Discharge pressure Motor.KW Flow rate Nm3/hr Voltage Cooling way
OW-60/3-30 oxygen 3 30 15 60 220V/380V/415V/440V 50/60HZ Air cooling
OW-100/4-8 oxygen 4 8 5.5KW 100 220V/380V/415V/440V 50/60HZ Air cooling
OW-200-5-12 oxygen 5 12 15 200 220V/380V/415V/440V 50/60HZ Water cooling
OW-210/5-12 oxygen 5 12 15 210 220V/380V/415V/440V 50/60HZ Water cooling

1.The above parameters are for reference only, and the technical quotation is subject to our final technical solution

2.More displacement, higher filling pressure, please consult us
