Gow-10/4-150
BAILIAN
8414804090

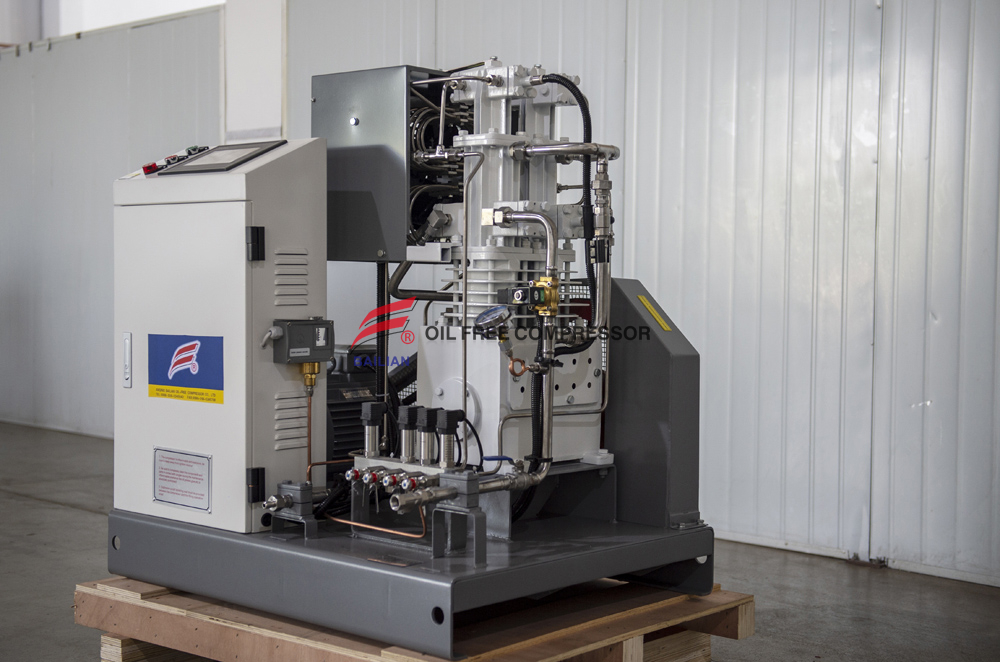

oxygen high pressure compressor
A plant safe oxygen compressorthat is used to pressurize oxygen and deliver or store it.
One of the industries is used for rough oxygen cutting, which pumps 93% pure oxygen into an oxygen cylinder and cuts scrap metal with acetylene gas.
There are two uses for diving high pressure oxygen compressor. One is that the hospital's PSA oxygen generator needs to be pressurized to supply various wards and operating rooms, providing 7-10 kg of line pressure, and the other is that PSA oxygen needs to be stored. The high-pressure container is convenient for mobile use, and the storage pressure is generally 100barg, 150barg, 200barg, or higher 300barg pressure.
This scuba high pressure oxygen compressor is suitable for inlet pressure 3-4barg (40-60psig) and discharge pressure 150barg (2150psig)
The small PSA air separation system with a flow rate of 4-12NM3/hour provides clean oxygen filling service to the community and small island hospitals. It can be operated continuously for 24 hours. It is recommended to have a maximum of 10 bottles at a time.
This compressor features
Four-stage compression, each stage is equipped with a safety valve, the inlet is equipped with low intake pressure protection, the exhaust end is equipped with high exhaust pressure protection, and each stage has a temperature sensor. If over-temperature and over-pressure, The system will alarm and stop, ensure safe operation, small size, light weight, and forklift parking position at the bottom, which can be easily moved.
The button function indications for each part of the compressor are as follows, designed to be the kind of Tmall style.
All standard high pressure scuba oxygen compressor are CE marked to meet the requirements of the EU market. We can also provide customized plant filling oxygen compressor according to customer conditions.
Our microboost medical oxygen compressor have the following features
According to the different working conditions of the customer:
1. Completely 100% oil free, no oil required (depending on the specific model)
2. Oxygen for VPSA PSA and LOX gas source
3.NO pollution, keep the same purity into the gas
4.RELIABLE and high quality, comparable to the American RIX brand.
5. TOP low cost, low maintenance cost, simple operation, just change the piston ring
6. 4000 hours piston ring working life under low pressure conditions, 1500-200O hours working life under high pressure conditions
7.TOP brand motor, can be specially pointed out, just like the SIMENSE brand
8.SUPPLY JAPAN market, Japan's strict approval quality system
9.CE approved to meet the requirements of the EU market
10. According to the customer's specific working conditions, the compressor is designed for single machine compression, two-stage compression, three-stage compression and four-stage compression.
11. Low speed, long life, average speed 260-350RPM,
12. Low noise, average noise below 75dB, can work quietly in the medical field
13, continuous continuous heavy-duty operation, can run stably for 24 hours without stopping
14. Each stage has an interstage safety valve. If the stage is overpressured, the safety valve will take off and release the overpressure gas to ensure the stable operation of the compressor.
15. Each level has a temperature controller. If the temperature between the stages exceeds the standard, the temperature display will sound and light alarm.
| Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way | weight kgs | dimension mm | |
| GOW-4/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 3 | 4 | 220V/380V/415V/440V 50/60HZ | air cooling | 310 | 1000*750*1150 | |
| GOW-5/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 3 | 5 | 220V/380V/415V/440V 50/60HZ | air cooling | 310 | 1000*750*1150 | |
| GOW-6/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 3 | 6 | 220V/380V/415V/440V 50/60HZ | air cooling | 310 | 1000*750*1150 | |
| GOW-8/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 3 | 8 | 220V/380V/415V/440V 50/60HZ | air cooling | 310 | 1000*750*1150 | |
| GOW-10/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 4 | 10 | 220V/380V/415V/440V 50/60HZ | air cooling | 320 | 1000*750*1150 | |
| GOW-12/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 4 | 12 | 220V/380V/415V/440V 50/60HZ | air cooling | 320 | 1000*750*1150 | |
1. The above parameters are for reference only, and is subject to our technical quotation
2. More displacement, higher filling pressure, such 20Mpa,23Mpa,30Mpa,please feel free consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
