cooling way: | |
---|---|
ETD Time: | |
Availability: | |
Quantity: | |

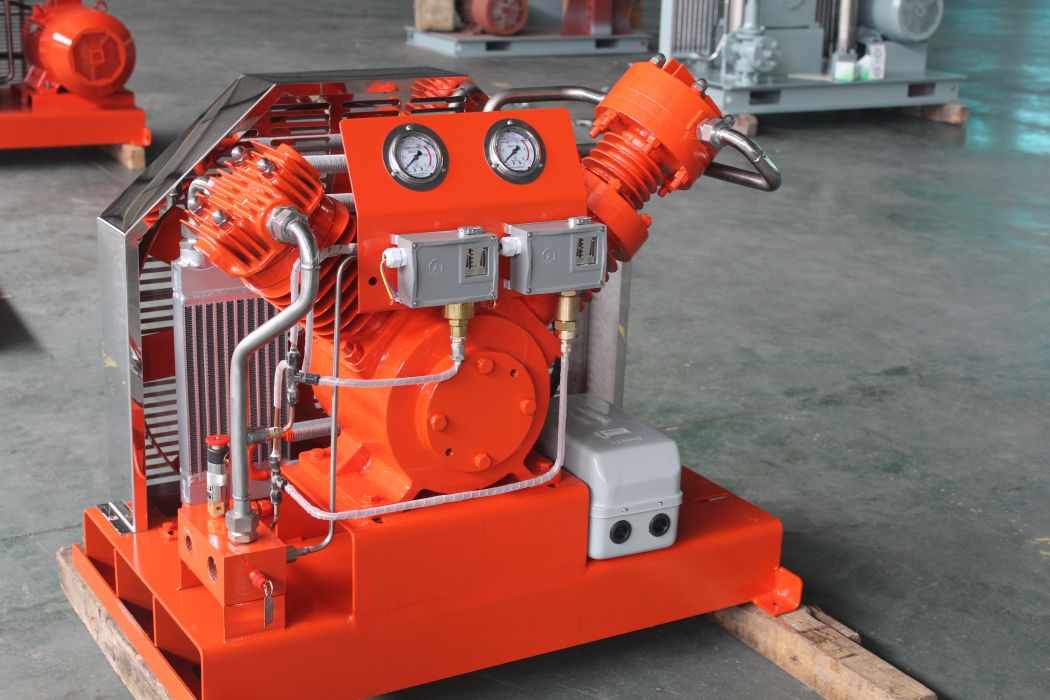

SF6-4/2-50
TECHNICAL DATA | |||||
Medium | SF6 | Quantity | 1开 备 | ||
Inlet pressure MPa(G) | 0.2 | Inlet temperature ℃ | ≤ 40 | ||
Discharge pressure Mpa(G) | 5.0 | Discharge temperature(after cooling) ℃ | ≤ 50 | ||
Flow rate Nm3/h | 4 | Piston stroke mm | 63 | ||
Model | SF6-4/2-50 | Compression stages | 2 | ||
Structural style | Completely oil-free lubrication V-type | Cylinder quantity | 2 | ||
Shaft speed r/min | 300 ※ | Voltage V | 380 | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | ≤1.8kw | Main motor speed r/min | 970 | ||
Air inlet and outlet aize mm | 15、15 | Water Inlet and outlet interface mm | --- | ||
Motor | 3KW 380V 50Hz ※ | ||||
Dimensions mmXmmXmm | 1200X700X1100 ※ | Weight T | 0.28 ※ | ||
Drive mode | Belt drive | ||||
Material of parts in contact with gas | cylinder | Stainless steel | |||
valve | Stainless steel | ||||
Pipeline, cooler | Stainless steel, aluminum alloy, and stainless steel | ||||
Scope of supply | Main engine, motor, skid mounted chassis, starting cabinet, intake filter, front primary meter and control components, safety valve, random documents, random spare parts, etc. (Note: The final technical agreement shall prevail). | ||||
Additional notes | Sealing method: mechanical sealing. | ||||
Delivery time | 40 days after the contract is signed and the advance payment is received |
