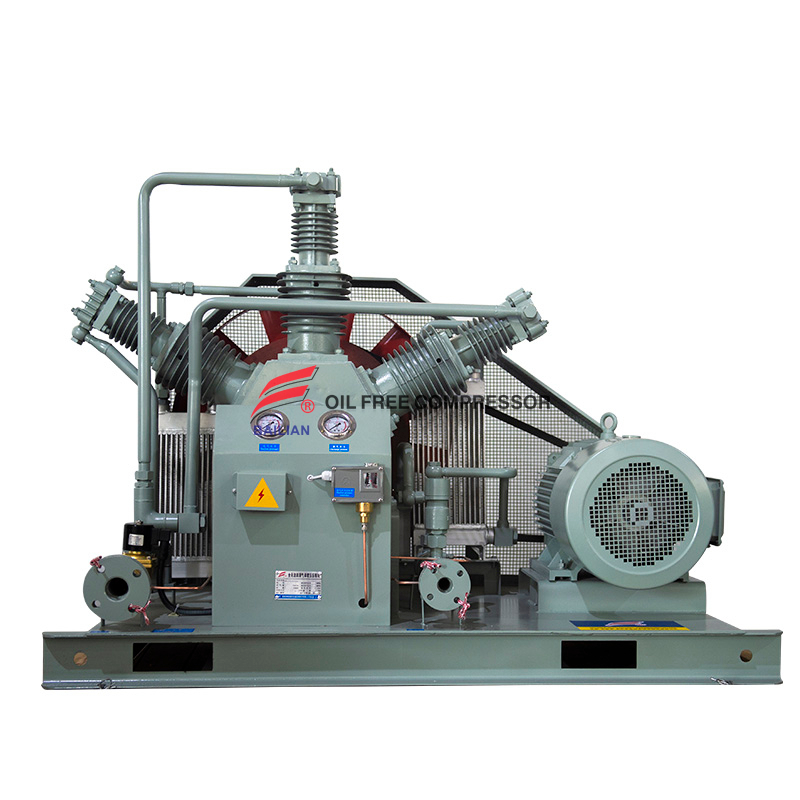

Oil Free Universal Nitrogen Booster Compressor for Laser Cutting

nitrogen booster compressor for laser cutting with air-cooling and water-cooling cooling modes, single-acting and double-acting structure, vertical and angle type, medium and high pressure, wind brand series Oil-free lubricating nitrogen compressor with excellent performance, stable operation, high efficiency and energy saving, long service life, widely used in nitrogen laser cutting, nitrogen canning, chemical industry, etc.

The friction pairs of the series of machines involved in gas compression are not lubricated with thin oil. The friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties. The structural advantages are reflected in:

1 There is no thin oil lubrication in the whole compression system, which avoids the possibility of oil contact with high pressure and high purity nitrogen (vertical nitrogen compressor is not completely oil-free type);

2 The whole system has simple machine structure, convenient control and easy operation;

3 For the gas medium of the recycle nitrogen compressor, nitrogen, no pollution, the purity of the nitrogen at the inlet and outlet of the compressor is the same.

This universal nitrogen booster oil free compressor is suitable for inlet pressure 5-7barg (70-100psig), exhaust pressure 20-40barg

100NM3-300NM3/hour laser cutting system

This oil free universal nitrogen booster compressor for nitrogen generator features

It adopts single or two-stage compression, air-cooling, which is convenient to use, and ensures good cooling effect of the compressor. The inlet is equipped with an intake pressure controller, the exhaust end is equipped with a pressure controller, and each stage is equipped with a safety valve and Temperature display, if over-temperature and over-pressure, the system will alarm and stop, to ensure safe operation, there is a forklift at the bottom of the compressor, which can be easily transferred to the construction site.

1.The above parameters are for reference only, and subjest to the final technical quotation

2.More displacement, higher filling pressure, please consult us
