1.Totally oil free
2.silent working noise,less 75dB , can working in medical station scope silent
3.low rotation speed,long working life
4.easy operation ,staff can operate after simple training

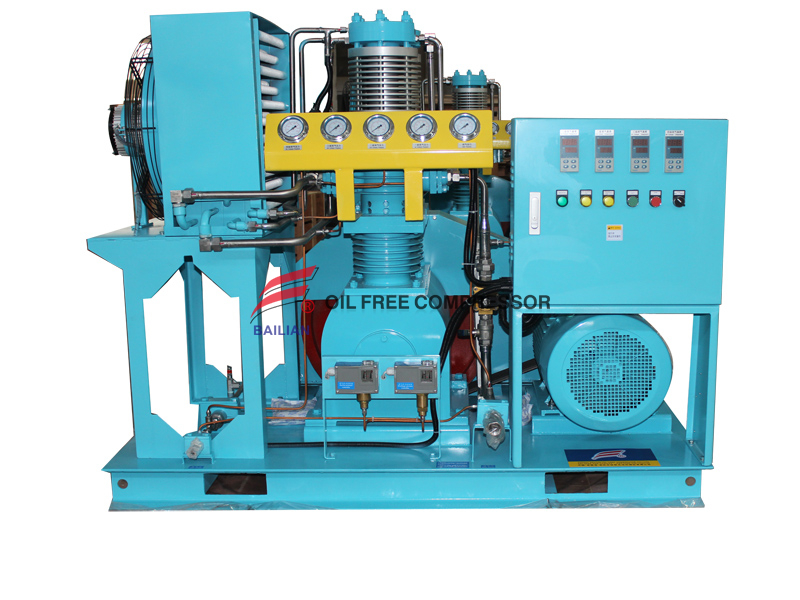

high pressure oxygen compressor concentrator
Oxygen compressor refers to a compressor used to pressurize oxygen and realize transportation or storage. There are two types of general medical oxygen compressors. One is that the hospital's PSA oxygen generator needs to be pressurized to supply various wards and operating rooms. It provides 7-10 kg of line pressure. One type of PSA oxygen needs to be stored in a high-pressure container for convenient use. The storage pressure is generally 100 barg, 150barg, 200barg, or a higher pressure of 300barg.
high pressure concentrator oxygen compressor machine include low or medium pressure oxygen compressor systems for VSA applications in steel mills, paper mills and water treatment plants.
Fully bottle cylinder filling oxygen compressor, air-cooled and water-cooled two cooling modes, single-action and double-acting structure, vertical and angle type, wind type series high pressure oil-free lubrication Oxygen compressor, excellent performance, stable operation, high efficiency and energy saving, long service life, widely used in oxygen tanking, chemical process and plateau oxygen supply, together with oxygen generator to form a simple and safe high-pressure oxygen system.
The friction pairs of the series of machines involved in gas compression are not lubricated with thin oil. The friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties. The structural advantages are reflected in:
1 There is no thin oil lubrication in the whole compression system, which avoids the possibility of oil contact with high pressure and high purity oxygen, and ensures the safety of the machine;
2 The whole system has no lubrication and oil distribution system, the machine structure is simple, the control is convenient, and it is easy to operate;
3 The whole system is oil-free, so the compressed medium, oxygen, is non-polluting, and the oxygen purity of the inlet and outlet of the compressor is the same.
This reciprocating industrial oxygen compressor supplier is suitable for inlet pressure 3-4barg (40-60psig) and discharge pressure 150barg (2150psig)
The flow rate of 15NM3-60NM3/hour of small PSA air separation oxygen system provides clean oxygen filling service for oxygen cutting in community and small island hospitals. It can run continuously for 24 hours, and can reach more than 20 bottles per time.
Thishigh pressure oxygen compressor bottle concentrator features
It adopts four-stage compression, water-cooled cooling method and stainless steel water cooler to ensure the good cooling effect of the compressor, which can effectively extend the service life of key wearing parts. The inlet is equipped with low intake pressure and the exhaust end is equipped with exhaust. High pressure protection, high exhaust temperature protection, safety valve and temperature display for each stage. If over temperature and overpressure, the system will alarm and stop, ensuring safe operation. There is a forklift at the bottom of the compressor, which can be easily transferred. Construction site.
All standard oxygen compressor for high pressure bottle concentrator are CE marked to meet the requirements of the EU market. We can also provide customized oxygen compressors according to customer conditions.
Our reciprocating industrial oxygen compressor have the following features
According to the different working conditions of the customer:
1. Completely 100% oil free, no oil required (depending on the specific model)
2. Cylinder Cast stainless steel
2. Oxygen for VPSA PSA and LOX gas source
3.NO pollution, keep the same purity into the gas
4. High reliability and high quality, comparable to the American RIX brand.
5. Low maintenance cost and simple operation.
6. 4000 hours piston ring working life under low pressure conditions, 1500-200O hours working life under high pressure conditions
7.TOP brand motor, can be specially pointed out, just like the SIMENSE brand
8. Supply customers in the Japanese market, in line with Japan's demanding quality requirements
9.CE approved to meet the requirements of the EU market
10. According to the customer's specific working conditions, the compressor is designed for single machine compression, two-stage compression, three-stage compression and four-stage compression.
11. Low speed, long life, average speed 260-350RPM,
12. Low noise, average noise below 75dB, can work quietly in the medical field
13, continuous continuous heavy-duty operation, can run stably for 24 hours without stopping
14. Each stage has an interstage safety valve. If the stage is overpressured, the safety valve will take off and release the overpressure gas to ensure the stable operation of the compressor.
15. Each level has a temperature controller. If the temperature between the stages exceeds the standard, the temperature display will sound and light alarm.
|Model 型号||Working medium 工作介质||suction pressure 进气压力(Mpa,Psig)||Discharge pressure 排气压力(Mpa,Psig)||Motor.KW 电机功率||Flow rate Nm3/hr 流量||Voltage 电源电压||Cooling way 冷却方式||weight 净重||dimension 尺寸mm|
|GOW-15/4-150||oxygen||0.3-0.4,40-60||15,2150||11||15||220V/380V/415V/440V 50/60HZ||water cooling||780||1500×950×1500|
|GOW-16/4-150||oxygen||0.3-0.4,40-60||15,2150||11||16||220V/380V/415V/440V 50/60HZ||water cooling||780||1500×950×1500|
|GOW-20/4-150||oxygen||0.3-0.4,40-60||15,2150||11||20||220V/380V/415V/440V 50/60HZ||water cooling||780||1500×950×1500|
|GOW-25/4-150||oxygen||0.3-0.4,40-60||15,2150||11||25||220V/380V/415V/440V 50/60HZ||water cooling||960||1500×950×1500|
|GOW-30/4-150||oxygen||0.3-0.4,40-60||15,2150||11||30||220V/380V/415V/440V 50/60HZ||water cooling||960||1500×950×1500|
|GOW-35/4-150||oxygen||0.3-0.4,40-60||15,2150||11||35||220V/380V/415V/440V 50/60HZ||water cooling||960||1500×950×1500|
|GOW-40/4-150||oxygen||0.3-0.4,40-60||15,2150||15||40||220V/380V/415V/440V 50/60HZ||water cooling||1000||1500×950×1500|
|GOW-42/3-150||oxygen||0.3-0.4,40-60||15,2150||15||42||220V/380V/415V/440V 50/60HZ||water cooling||1000||1500×950×1500|
|GOW-50/4-150||oxygen||0.3-0.4,40-60||15,2150||15||50||220V/380V/415V/440V 50/60HZ||water cooling||1000||1500×950×1500|
|GOW-50/2-150||oxygen||0.3-0.4,40-60||15,2150||18.5||50||220V/380V/415V/440V 50/60HZ||water cooling||1050||1500×950×1500|
|GOW-56/3-150||oxygen||0.3-0.4,40-60||15,2150||18.5||56||220V/380V/415V/440V 50/60HZ||water cooling||1050||1500×950×1500|
|GOW-60/4-150||oxygen||0.3-0.4,40-60||15,2150||18.5||60||220V/380V/415V/440V 50/60HZ||water cooling||1050||1500×950×1500|
1. The above parameters are for reference only, and is subject to our technical quotation
2. More displacement, higher filling pressure, such 20Mpa,23Mpa,30Mpa,please feel free consult us
3.Kinly note ,if you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium:
If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure): barg
*Exhaust pressure(gauge pressure): barg
*Flow rate per hour for compressor: (Nm3/hr):
Compressor gas suction temperature ?
Compressor working hours per day : hours
Compressor working site altitude : m
Environment temperature ℃:
Has cooling water in the site or not ?
Voltage and frequency for three phase :
Do not has water vapor or H2s in the gas ?
Application for compressor？
