Views: 0 Author: Site Editor Publish Time: 2026-08-13 Origin: Site
In industrial dry ice manufacturing, profitability depends entirely on thermodynamic efficiency. When liquid CO2 expands to atmospheric pressure, up to 50% of the mass flashes back into vapor. This represents immediate yield loss if you do not manage it properly. Facilities operating without optimized gas recovery face compounding operational costs, excessive raw CO2 consumption, and inconsistent pelletizer throughput due to pressure fluctuations. Maximizing yield requires precise control over phase-change dynamics. This guide details the exact pressure ranges required for solid CO2 formation. We provide a technical framework for evaluating and integrating a CO2 Compressor for Dry Ice production and flash gas recovery.
Phase Change Thresholds: Dry ice formation requires dropping liquid CO2 from standard storage pressures (typically 250–300 psig / 17–20 bar) down to atmospheric pressure (14.7 psig / 1 bar) to achieve the -109°F (-79°C) sublimation point.
Recovery Necessity: A dedicated dry ice gas recovery compressor can reclaim up to 90% of flash gas, effectively doubling the production yield per ton of raw liquid CO2.
System Sizing: Compressor selection must align with the specific volumetric flow rate and pressure requirements of the CO2 pelletizer gas supply to prevent bottlenecking.
Safety & Compliance: Trapped solid CO2 can generate pressures exceeding 20,000 psig as it warms; system design must incorporate rigorous pressure relief and isochoric fluid management protocols.
Establishing the thermodynamic baseline required to convert liquid CO2 into solid snow without excessive energy waste is the foundational step in system design. Operators must manipulate pressure precisely to force the phase change while minimizing vapor generation. You cannot simply guess the pressure drops; you need exact calculations based on the fluid dynamics of carbon dioxide.
The CO2 triple point exists at 75.1 psia (5.18 bar) and -69.9°F (-56.6°C). This specific thermodynamic coordinate represents the absolute minimum pressure where liquid CO2 can exist. Below this pressure, carbon dioxide can only exist as a solid or a gas. The expansion process relies entirely on this principle. By throttling liquid CO2 from storage pressure down to atmospheric pressure (14.7 psig), the fluid crosses below the triple point. This rapid pressure drop forces an immediate phase change. It converts the liquid into a mixture of solid snow and vapor, commonly known as flash gas.
The efficiency of this conversion depends on controlling the expansion rate and capturing the resulting vapor. If you vent the flash gas to the atmosphere, you lose half your raw material instantly. Capturing it requires understanding the exact volume of gas generated per pound of snow. We use specific enthalpy charts to map this out before sizing any recovery equipment.
Liquid CO2 is typically stored in one of two configurations. Low-pressure bulk storage maintains the fluid at approximately 250 to 300 psig and -20°F. High-pressure cylinder storage keeps the CO2 at around 850 psig at room temperature. For industrial dry ice manufacturing, low-pressure bulk storage is universally preferred. Feed pressure stability directly impacts the density and consistency of the extruded dry ice.
Fluctuations in the feed line cause uneven snow formation inside the pelletizer chamber. This leads to brittle pellets and increased sublimation rates during transport. Maintaining a steady 300 psig feed ensures the expansion valve operates at a constant flow coefficient (Cv). We monitor these feed lines with precision pressure transducers to detect any pressure drops before they affect the pelletizer output.
Storage Type | Typical Pressure | Typical Temperature | Suitability for Dry Ice Production |
|---|---|---|---|
Low-Pressure Bulk | 250 - 300 psig | -20°F (-29°C) | Excellent - Stable feed, high yield |
High-Pressure Cylinder | 850+ psig | 70°F (21°C) | Poor - High flash loss, low capacity |
Micro-Bulk Systems | 300 - 350 psig | -10°F (-23°C) | Moderate - Good for small batch runs |
You must differentiate between the pressure drop required for phase change and the physical mechanical pressure required to form the final product. The thermodynamic expansion requires dropping the pressure to 1 atmospheric bar. Once the solid snow forms, mechanical systems take over. Pelletizers and block presses apply 50 to 100 bar of hydraulic force to compress the loose dry ice snow into dense, high-quality blocks or pellets.
This mechanical compression pressure directly affects the sublimation rate of the final dry ice product. Denser dry ice has less surface area exposed to ambient air. This slows the sublimation process and extends the usable life of the product. We calibrate the hydraulic rams to apply exact pressure profiles, ensuring the snow binds together without fracturing the extruded pellets.
Distinguishing between primary compression systems and secondary recovery units allows engineers to specify equipment that matches the exact thermodynamic load of the facility. You need to look at the entire gas flow cycle to make the right choice.
Compressing raw atmospheric CO2 into a liquid state involves handling mixed gases, moisture, and variable inlet temperatures. Capturing cold flash gas from a pelletizer is a completely different mechanical challenge. Flash gas exits the extrusion chamber at extremely low temperatures, often around -100°F. This requires specialized intake valves and materials that will not become brittle and shatter.
A dedicated dry ice gas recovery compressor operates within a closed-loop system. It takes the cold vapor, compresses it back to storage pressure, and routes it through a liquefier to be reintroduced into the bulk tank. This closed-loop operation prevents atmospheric contamination and maximizes the utilization of the raw material. We specify stainless steel components for the first stage to handle the cryogenic inlet temperatures safely.
Continuous extrusion pelletizers generate a steady stream of flash gas. This requires a compressor capable of continuous duty cycles. Low-pressure block-making methods, such as direct-freezing block chambers, operate differently. These systems utilize lower initial CO2 feed pressures to generate dense, continuous solid blocks that can weigh up to 360 grams or more.
The gas generation in block production is often intermittent or batch-based. This alters the compressor load profile. You need buffer tanks or variable frequency drives (VFDs) to handle the spikes in vapor generation without short-cycling the compressor motor. We map the gas generation curve of the block press to program the VFD response times accurately.
Analyze the peak gas generation rate during the injection phase.
Size the buffer tank to hold at least three injection cycles worth of flash gas.
Program the compressor VFD to ramp up smoothly as tank pressure rises.
Set mechanical pressure relief valves 10% above the maximum operating pressure.
Matching compressor capacity to pelletizer demand requires precise calculations. Engineers must analyze volumetric efficiency requirements based on the maximum extrusion rate of the pelletizer. If the compressor is undersized, backpressure builds up in the recovery line. This disrupts the thermodynamic expansion inside the pelletizer and reduces snow yield.
Pressure drops in the supply piping also impact performance. Calculating the required overpressure ensures a steady CO2 pelletizer gas supply reaches the extrusion chamber. This maintains consistent product density and prevents system bottlenecks. We use pipe sizing charts specific to dense phase CO2 to minimize friction losses over long pipe runs.
Procurement requires evaluating key engineering specifications to ensure scalability, performance, and long-term reliability in cryogenic environments. You cannot use standard air compressors for this application.
Recovering flash gas at approximately 14.7 psig and returning it to 300 psig liquid storage requires multi-stage compression. Attempting this pressure ratio in a single stage generates excessive heat. This risks oil degradation and mechanical failure. Multi-stage compressors divide the workload, typically using two or three stages to reach the target pressure.
Intercooling between compression stages is mandatory. Heat exchangers remove the heat of compression before the gas enters the next cylinder. This maintains thermodynamic efficiency and keeps discharge temperatures within safe operational limits. We monitor interstage temperatures constantly to detect valve blow-by or cooling water failures early.
The energy consumption of the recovery compressor must be weighed against the yield improvements. Liquefaction cycles require secondary refrigeration to convert the compressed gas back into a liquid. Traditional systems use ammonia (R717) refrigerants, which offer high efficiency but require stringent safety protocols.
Modern facilities increasingly utilize closed-loop transcritical or subcritical CO2 (R744) systems. These systems eliminate toxic refrigerants, improving environmental compliance while maintaining a competitive coefficient of performance (COP) in industrial settings. We design the liquefier heat exchangers to handle the specific mass flow rate of the recovery compressor output.
Oil-free compression is non-negotiable for dry ice production. This is particularly true for food-grade, medical-grade, and anaerobic fermentation applications. Any hydrocarbon carryover contaminates the dry ice, rendering it unusable for sensitive cooling tasks. You cannot rely on downstream filters to catch all the oil vapor.

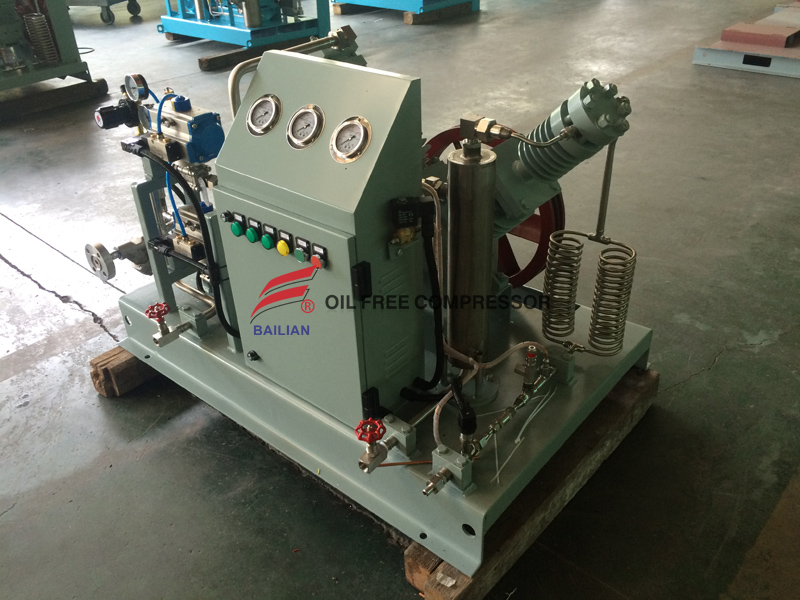

A high-quality recovery compressor utilizes non-lubricated PTFE or carbon piston rings. Distance pieces are engineered into the compressor frame to physically separate the lubricated crankcase from the gas compression cylinders. This guarantees zero oil contamination in the recovered CO2 stream. We inspect the distance piece wiper rings during every major maintenance interval to ensure the physical barrier remains intact.
Addressing the physical dangers and integration challenges of high-pressure CO2 systems prevents catastrophic failures and production downtime. You must design the piping network with safety as the primary constraint.
Isochoric heating presents an extreme risk in dry ice manufacturing. If dry ice becomes trapped in closed piping or valves and begins to sublimate, it expands rapidly. In a confined space, this phase change can generate pressures up to 20,000 psig. This will easily rupture standard industrial piping and cause severe damage.
System design must include mandatory safety mitigations. Dual pressure relief valves (PRVs), strategically placed burst discs, and automated venting sequences during system shutdowns are required. These prevent trapped solids from destroying the infrastructure. We pipe all PRV discharges to a safe exterior location to prevent CO2 accumulation in the workspace.
Common integration failures occur when flow rates are mismatched. If the pelletizer produces gas faster than the compressor can process it, the system pressurizes and halts production. Conversely, an oversized compressor without proper controls will short-cycle. This causes premature wear on the motor and contactors.
Implementing buffer tanks, or surge receivers, decouples the instantaneous demand of the pelletizer from the steady-state operation of the compressor. This provides a pneumatic cushion, allowing the compressor to run efficiently while the pelletizer cycles on and off. We size the buffer tank based on the maximum instantaneous flash rate of the largest pelletizer on the line.
Upgrading compression and recovery infrastructure requires a clear understanding of maintenance demands and continuous operational efficiency. You need a proactive approach to keep the system running at peak capacity.
Continuous operation maximizes the efficiency of gas recovery systems compared to intermittent, batch-based production. When the system runs steadily, thermal equilibrium is achieved. This reduces the energy required for liquefaction. Facilities must monitor local liquid CO2 consumption and electricity rates to optimize production schedules.
By minimizing the time the system spends in startup and shutdown phases, operators reduce wear on components and maximize the volume of reclaimed CO2. We use automated sequencing controls to keep the recovery loop active even during short pauses in pelletizer operation. This prevents thermal shock to the compressor cylinders.
Operating in non-lubricated CO2 environments accelerates wear-and-tear on specific components. Compressor valves, PTFE piston rings, and rod seals require strict monitoring. Preventative maintenance schedules must be established based on run hours rather than calendar days.
Regular inspection of intercooler tubing for fouling and vibration analysis of the compressor frame prevent catastrophic pressure failures. This maintains the volumetric efficiency required for continuous dry ice production. We log the blow-by rates on the packing cases weekly to predict when rod seals will need replacement.
Component | Inspection Interval | Replacement Interval | Failure Indicator |
|---|---|---|---|
PTFE Piston Rings | 2,000 Hours | 8,000 Hours | Decreased volumetric flow |
Suction/Discharge Valves | 4,000 Hours | 12,000 Hours | High interstage temperatures |
Rod Packing Seals | 2,000 Hours | 8,000 Hours | Excessive gas venting from distance piece |
Intercooler Tubes | Monthly | As Needed | High discharge gas temperatures |
Conduct a volumetric audit of current flash gas losses to determine the exact capacity required for a recovery system.
Specify multi-stage, 100% oil-free compressors to ensure product purity and mechanical reliability.
Install buffer tanks between the pelletizer and the compressor to stabilize flow rates and prevent short-cycling.
Implement rigorous safety protocols, including dual PRVs and burst discs, to mitigate the risks of isochoric heating.
A: Dry ice forms when liquid CO2 is expanded to atmospheric pressure (14.7 psig / 1 bar). It cannot exist as a solid at pressures above its triple point (75.1 psia) if the temperature is above -69.9°F.
A: Thermodynamic expansion pressure refers to dropping liquid CO2 pressure to atmospheric levels to induce solid snow formation. Hydraulic mechanical pressure is the physical force (typically 50–100 bar) used to compress that snow into solid blocks or pellets.
A: Taking CO2 from atmospheric pressure (14.7 psig) back to liquid storage pressure (300 psig) in a single stage generates excessive heat. Multi-stage compression divides the work, allowing for intercooling to maintain efficiency and prevent equipment damage.
A: Oil-free compression prevents hydrocarbon contamination. This is critical because dry ice is frequently used in food processing, medical transport, and anaerobic fermentation, where any oil carryover would ruin the final product.
A: Isochoric heating occurs when trapped solid dry ice sublimates into gas within a closed, fixed-volume space. As it warms, it can generate extreme pressures exceeding 20,000 psig, requiring specialized pressure relief systems to prevent pipe ruptures.
A: Buffer tanks act as a pneumatic cushion between the pelletizer and the compressor. They absorb sudden spikes in flash gas production, preventing the compressor from short-cycling and ensuring a steady flow of gas into the recovery system.
