Oil Free Carbon Dioxide Gas Recovery Co2 Compressor

Oil Free Carbon Dioxide Gas Recovery Co2 Compressor
Cooling way:
ETD Time:
Availability:
Quantity:
  • CW-500-0.4-20

Oil Free Carbon Dioxide Gas Recovery Co2 Compressor

OIL FREE CARBON DIOXIDE GAS RECOVERY SYSTEM

Product Feature

1.Total oil free

2.single or double stage

3.easy moving

4.heavy duty ,and 24 hours continues working

5.silent working


Product Specification


010 (复制)012 (复制)


oil free co2 compressor refers to a compressor for pressurizing carbon dioxide gas and achieving transportation. Mainly used,

1. Recycling of dry ice volatilized gas from CO2 plant, recycling of CO2 from factory,

2. Industrial and pharmaceutical extraction processes using the liquid properties of CO2

3. Large-scale carbon dioxide compressor is mainly used in urea synthesis equipment

When co2 oil free recovery compressor extraction designing and using, it should be noted that: (1) the critical temperature of carbon dioxide is high, and it can be liquefied at 31.3 ° C and 7.14 MPa. When used in winter, the interstage cooling temperature should not be too low; (2) when carbon dioxide is below 60 MPa, it is beneficial to gas. (3) Due to the relatively high relative density of carbon dioxide gas, it is not appropriate to use an excessively large average piston speed, otherwise the gas valve resistance is high; (4) carbon dioxide gas contains a small amount of water, which is highly corrosive, so the gas valve, Coolers and buffer tanks are required to be made of stainless steel.

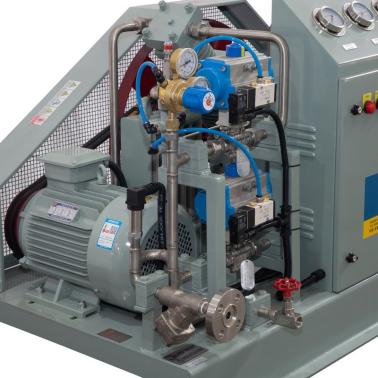

Pneumatic cylinder control ,compressor change pressure stage automatic according to inlet pressure condition in co2 gas recovery system


here is oil free extraction co2 compressor technical data

OIL FREE HYDROGEN COMPRESSOR

S/N

ITEMS

TECHNICAL DATA

1

Working medium

Dry CO2 gas

2

model

CW-500/0.4-20

3

Structure

oil free reciprocating,ZWtype

4

Pressure stage

4 4cylinder

5

Rated capacity(standard)Nm3/h

500Nm3/hr (@suction 0.4barg)

6

Rated inlet pressure MPa(G)

0.04

7

Rated outlet pressure MPa(G)

2.0

8

Inlet temperature℃

0~30

9

Outlet temperature ℃

≤50

10

Transmit gas temperature℃

≤50

11

Shaft speed r/min

400 ※

12

Cooling way

Water cooling

13


Lubricate way


Shaft and connect rod

Lubricate oil

Cylinder

Oil free lubricate


Shaft power

≤40

14

Motor power Kw

45kw 380V50Hz

15

Transmit way

Belt driven

16

Installation way

Simple basement

17

Automatic control parts

Overload ,stop automatic

18

External dimension L×W×H mm

2650*1850*2350

19

Inlet and outlet mm

DN80/DN20

20

Weight Kg

3800

21

Voltage

380v/50hz/3phase

22

Water consumption

4500kgs/hr


Water inlet outlet

DN40


Pipe and gas valve,cylinder sleeve

Stainless steel


Piston ring ,filling stuff

Filled with polytetrafluoroethylene


Crank and shaft

Carbon steel



Supply scope :

Compressor pump, motor, cooler, skid chassis, start cabinet, suction filter, a instrument meter and control components, safety valves, import and export matching flange, compressor files.
