VW-30/5-25
BAILIAN
8414804090

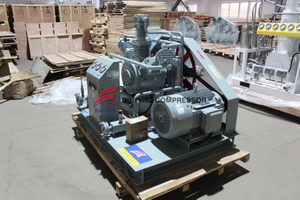

nitrogen booster compressor for nitrogen filling ,with air-cooling and water-cooling cooling modes, single-acting and double-acting structure, vertical and angle type, medium and high pressure, wind brand series Oil-free lubricating nitrogen compressor with excellent performance, stable operation, high efficiency and energy saving, long service life, widely used in nitrogen laser cutting, nitrogen canning, chemical industry, etc.
The friction pairs of the series of machines involved in gas compression are not lubricated with thin oil. The friction seals such as piston rings and guide rings are made of special materials with self-lubricating properties. The structural advantages are reflected in:
1 There is no thin oil lubrication in the whole compression system, which avoids the possibility of oil contact with high pressure and high purity nitrogen (vertical nitrogen compressor is not completely oil-free type);
2 The whole system has simple machine structure, convenient control and easy operation;
3 For the gas medium of the recycle nitrogen compressor, nitrogen, no pollution, the purity of the nitrogen at the inlet and outlet of the compressor is the same.
This universal nitrogen booster oil free compressor is suitable for inlet pressure 5-7barg (70-100psig), exhaust pressure 150-300barg
10NM3-100NM3/hour nitrogen filling cylinder system

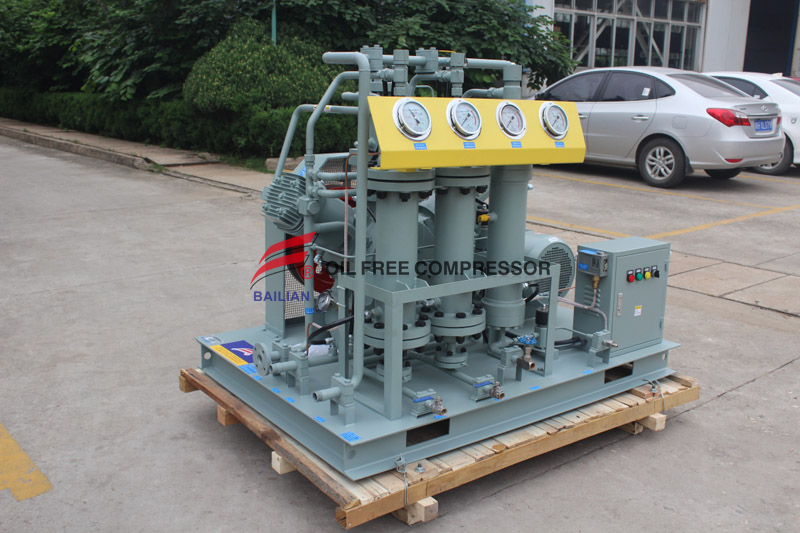

TOTALLY OIL FREE NITROGEN COMPRESSOR
S/N | ITEMS | TECHNICAL DATA | |
1 | Working medium | Dry NITROGEN gas | |
2 | model | GWW-20/7-220 | |
3 | Structure | W type, skid mounted | |
4 | Pressure stage | 3 ，3 cylinder | |
5 | Rated capacity(standard)Nm3/h | 20(@inlet pressure 7barg) | |
6 | Rated inlet pressure MPa(G) | 0.6-0.8 | |
7 | Rated outlet pressure MPa(G) | 22.0 | |
8 | Inlet temperature℃ | ≤35 | |
9 | Outlet temperature ℃ | ≤55 | |
10 | Transmit gas temperature℃ | ≤55 | |
11 | Shaft speed r/min | 380 ※ | |
12 | Cooling way | Water cooling | |
13 | Lubricate way | Shaft and connect rod | Grease seal |
Cylinder | Oil free lubricate | ||
Shaft power | ≤5.5 | ||
14 | Motor power Kw | 7.5KW 380V 50Hz※ | |
15 | Transmit way | Belt driven | |
16 | Installation way | Simple basement | |
17 | Automatic control parts | Overload ,stop automatic | |
18 | External dimension L×W×H mm | L1400×W1050×H1500 ※ | |
19 | Inlet and outlet mm | ||
20 | Weight Kg | 640 ※ | |
21 | Voltage | 380 50hz 3phase | |
22 | Water consumption | 0.9Ton /hr | |
Water pressure | 2-4bar | ||
Water temperature in/ out | 30/38 degree | ||
Water pump lift | 40m | ||
Water cooler machine and water pump | Customer prepare it | ||
